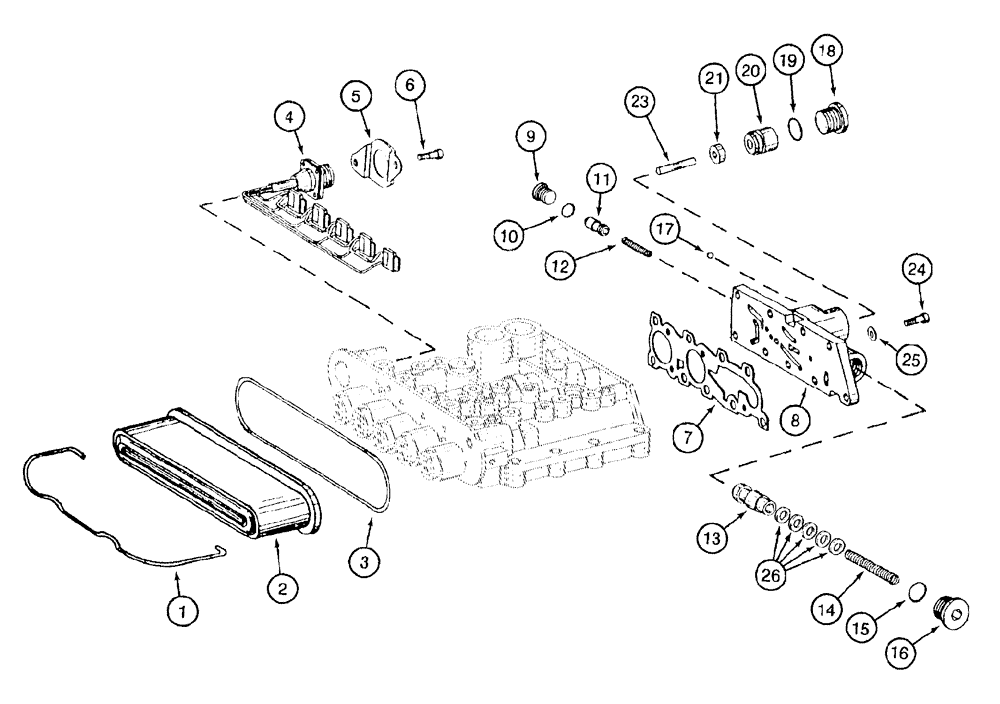

Запчасти Case 921B (6-036) - TRANSMISSION ASSEMBLY - CONTROL VALVE - 114363A1 TRANSMISSION PRIOR TO P.I.N. JEE0052701 (06) - POWER TRAIN

114363A1

TRANSMISSION

ASSEMBLY - new, ZF No. 4646 004 027, parts list figures 6-8 - 6-34, 7-3, and item 4, figure 6-4 and items 4 - 6, figure 6-6

1шт.

114363A1R

REMAN-TRANSMISSION

921, Model Number 4WG250, Stock Number 4646 004 037

1шт.

114363A1C

CORE-TRANSMISSION

Return Number

1шт.

100333A1

VALVE

ASSEMBLY - transmission control, includes all items on this figure and figure 6-34

1шт.

1

100361A1

CLAMP

wire, solenoid cover

1шт.

2

129808A1

COVER

solenoid

1шт.

3

129809A1

O-RING,159.2mm ID x 5.7mm Width

solenoid cover

1шт.

4

100357A1

HARNESS

transmission control valve

1шт.

5

100359A1

LARGE PLATE

PLATE, LARGE BRACKET - harness mounting

1шт.

6

199064A1

SCREW

cap, replaces 100358A1 screw

2шт.

7

231128A1

GASKET,0.55mm Thk

cover, replaces 100351A1 gasket

1шт.

8

129810A1

LARGE PLATE

PLATE, LARGE COVER - valve, front

1шт.

9

100367A1

PLUG

hex socket, special

1шт.

10

100369A1

O-RING,9.5mm ID x 2mm Width

plug

1шт.

11

100366A1

PISTON

SPOOL - relief, small

1шт.

12

100368A1

COMPRESSION SPRING

relief spool, small

1шт.

13

100370A1

PISTON

SPOOL - relief, large

1шт.

14

N14721

SPRING

relief spool, large

1шт.

15

106970A1

SEALING RING

SEAL - plug

1шт.

16

129792A1

PLUG

hex socket, special, 18 x 1.5 mm

1шт.

17

S300552

BALL

valve

5шт.

18

S301601

PLUG

hex, special, if used

1шт.

19

S301602

O-RING,2mm Thk x 17mm ID

O-RING - plug, if used

1шт.

20

131082A1

PISTON

21.0 mm, if used

1шт.

20

100365A1

PISTON

21.5 mm, if used

1шт.

21

S301604

SHIM

2.0 mm thick, if used

1шт.

21

S301605

SHIM

3.0 mm thick, if used

1шт.

21

S301606

SHIM

4.0 mm thick, if used

1шт.

21

S301607

SHIM

6.0 mm thick, if used

1шт.

21

S301608

SHIM

8.0 mm thick, if used

1шт.

23

S301603

NEEDLE

PLUNGER - valve

1шт.

24

131080A1

SCREW,M6 x 20mm, Gr 8.8

hex socket, special, 6 - 1.0 x 20 mm

9шт.

25

3078026R1

WASHER,M6.4

flat, special

9шт.

26

S301611

SHIM,0.5mm Thk

If used

5шт.
