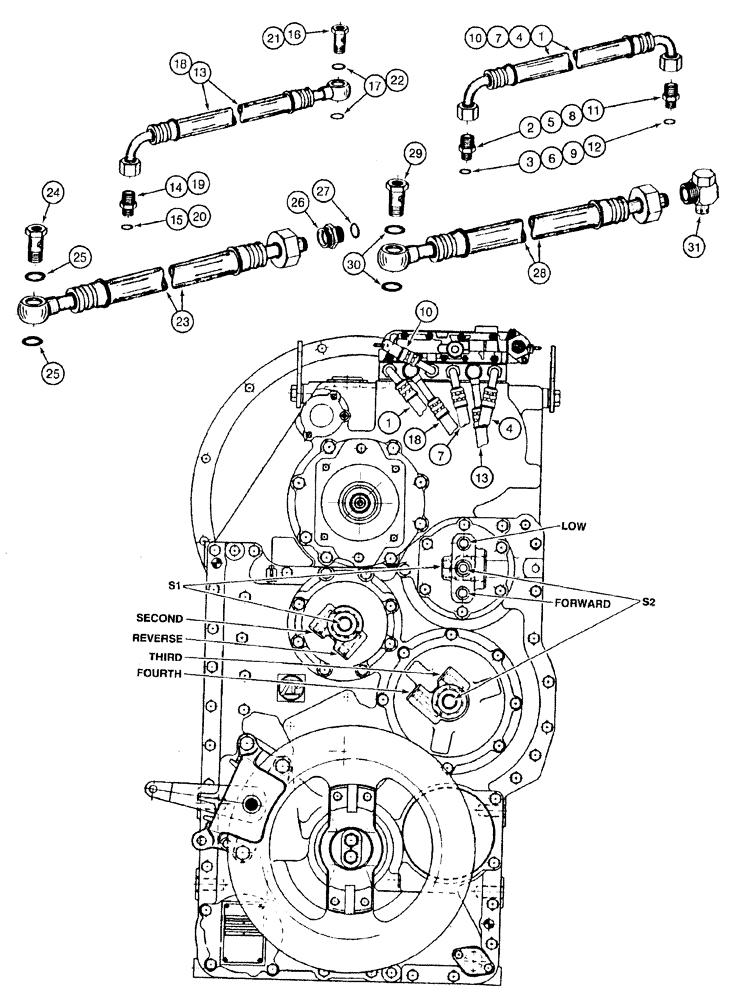

Запчасти Case 921B (6-030) - TRANSMISSION ASSEMBLY - CLUTCH LUBRICATION HOSES (06) - POWER TRAIN

114363A1

TRANSMISSION

ASSEMBLY - new ZF No. 4646 004 027, prior to P.I.N. JEE0052701, parts listed figure 6-8 - 6-36, 7-2, and item 4, figure 6-4 and items 4 - 6, figure 6-6

1шт.

114363A1R

REMAN-TRANSMISSION

921, Model Number 4WG250, Stock Number 4646 004 037

1шт.

114363A1C

CORE-TRANSMISSION

Return Number

1шт.

241955A1

TRANSMISSION

ASSEMBLY - new, ZF No 4646 004 065, P.I.N. JEE0052701 and after, parts list figures 6-8 - 6-36, 7-2, and item 4 on figure 6-4 and items 4 - 6 on figure 6-6

1шт.

241955A1R

REMAN-TRANSMISSION

Remanufactured Transmission; 921B, P.I.N. JEE0052701 & After, Model Number 4WG250, Stock Number 4646 004 066

1шт.

241955A1C

CORE-TRANSMISSION

Return Number

1шт.

1

184217A1

HOSE

640 mm (25-3/16 inch) long, reverse clutch

1шт.

2

100378A1

FITTING

ADAPTER - straight

2шт.

3

S301617

O-RING,2mm Thk x 13mm ID

O-RING - adapter

2шт.

4

100379A1

HOSE,825.00 mm

second clutch

1шт.

5

100378A1

FITTING

ADAPTER - straight

2шт.

6

S301617

O-RING,2mm Thk x 13mm ID

O-RING - adapter

2шт.

7

S301938

HOSE

610 mm (24-1/16 inch) long, third clutch

1шт.

8

100378A1

FITTING

ADAPTER - straight

2шт.

9

S301617

O-RING,2mm Thk x 13mm ID

O-RING - adapter

2шт.

10

S301939

HOSE

825 mm (32-1/2 inch) long, fourth clutch

1шт.

11

100378A1

FITTING

ADAPTER - straight

2шт.

12

S301617

O-RING,2mm Thk x 13mm ID

O-RING - adapter

2шт.

13

100430A1

HOSE

450 mm (17-3/4 inch) long, low clutch

1шт.

14

100378A1

FITTING

ADAPTER - straight

1шт.

15

S301617

O-RING,2mm Thk x 13mm ID

O-RING - adapter

1шт.

16

100376A1

BANJO BOLT,Hex, M12 x 1.25 x 28mm

BOLT - hex hollow, special

1шт.

17

100377A1

SEALING RING,16mm ID x 22mm OD x 1.5mm

O-RING - hollow bolt

2шт.

18

S301934

HOSE

630 mm (24-7/8 inch) long, forward clutch

1шт.

19

100378A1

FITTING

ADAPTER - straight

1шт.

20

S301617

O-RING,2mm Thk x 13mm ID

O-RING - adapter

1шт.

21

100376A1

BANJO BOLT,Hex, M12 x 1.25 x 28mm

BOLT - hex hollow, special

1шт.

22

100377A1

SEALING RING,16mm ID x 22mm OD x 1.5mm

O-RING - hollow bolt

2шт.

23

185574A1

HOSE

700 mm (27-9/16 inch) long, low and forward clutches to second and reverse clutches, S1 port

1шт.

24

S301931

BANJO BOLT

BOLT - hex hollow, special

1шт.

25

100080A1

O-RING,2mm Thk x 19mm ID, 70 Duro

hollow bolt

2шт.

26

S301942

FITTING

ADAPTER - straight, special

1шт.

27

100080A1

O-RING,2mm Thk x 19mm ID, 70 Duro

straight adapter

1шт.

28

185574A1

HOSE

700 mm (27-9/16 inch) long, low and forward clutches to third and fourth clutches, S2 port

1шт.

29

S301931

BANJO BOLT

BOLT - hex hollow, special

1шт.

30

100080A1

O-RING,2mm Thk x 19mm ID, 70 Duro

hollow bolt

2шт.

31

S301941

FITTING

UNION - special

1шт.
