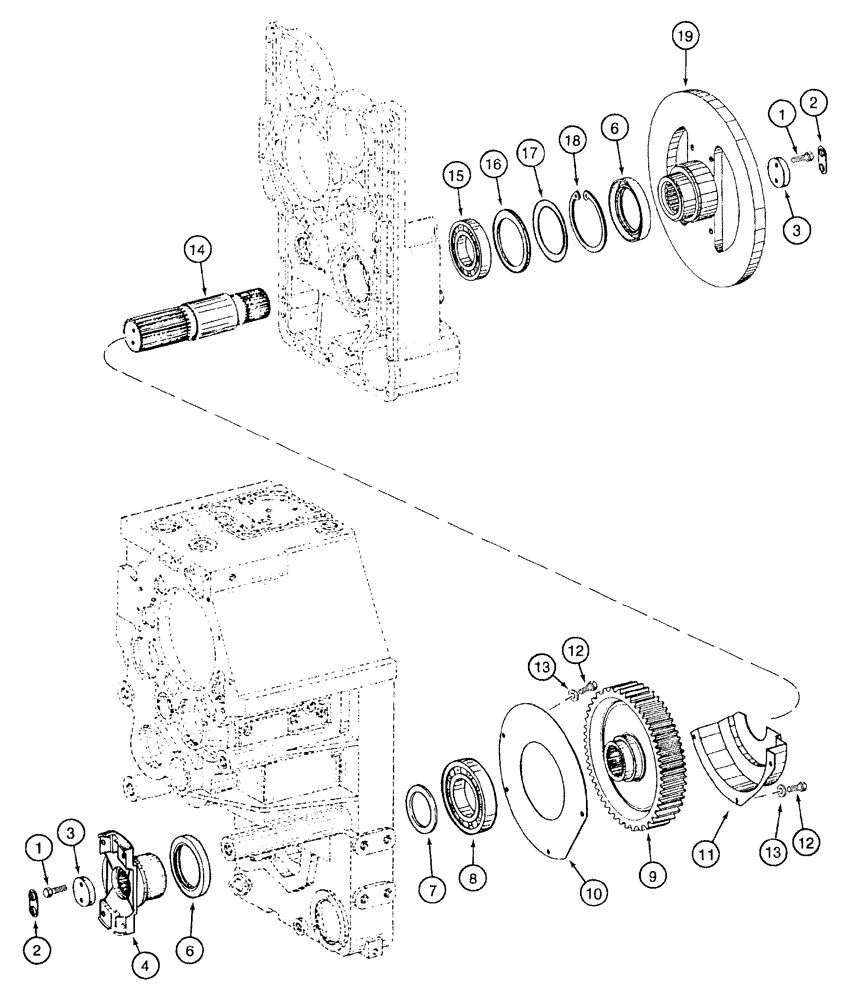

Запчасти Case 921B (6-028) - TRANSMISSION ASSEMBLY - OUTPUT SHAFT AND GEAR (06) - POWER TRAIN

114363A1

TRANSMISSION

ASSEMBLY - new, ZF No. 4646 004 027, prior to P.I.N. JEE0052701, parts list figures 6-8 - 6-36, 7-2, and item 4, figure 6-4 and items 4 - 6, figure 6-6

1шт.

114363A1R

REMAN-TRANSMISSION

921, Model Number 4WG250, Stock Number 4646 004 037

1шт.

114363A1C

CORE-TRANSMISSION

Return Number

1шт.

1

241955A1

TRANSMISSION

ASSEMBLY - new, ZF No. 4646 004 065, P.I.N. JEE0052701 and after, parts list figures 6-8 - 6-36, 7-2 and item 4 on figure 6-4 and items 4 - 6 on figure 6-6

1шт.

1

241955A1R

REMAN-TRANSMISSION

Remanufactured Transmission; 921B, P.I.N. JEE0052701 & After, Model Number 4WG250, Stock Number 4646 004 066

1шт.

1

241955A1C

CORE-TRANSMISSION

Return Number

1шт.

1

100096A1

SCREW

hex, special, 10 - 1.5 x 35 mm

4шт.

2

E135165

PLATE

PLATE, LARGE locking

2шт.

3

S301893

WASHER

RETAINER - flange

2шт.

4

S301892

JAW

YOKE - output, rear

1шт.

6

129757A1

SEAL,95mm ID x 120mm OD x 12mm Thk

oil, flange

2шт.

7

129749A1

SHIM

65.1 ID x 80 OD x 3.0 mm thick

1шт.

Prints are not available at time of printing to show accurate location of item 7 shim.

1шт.

7

129748A1

SHIM

65.1 ID x 80 OD x 2.5 mm thick

1шт.

Prints are not available at time of printing to show accurate location of item 7 shim.

1шт.

7

129756A1

SHIM

65.1 ID x 80 OD x 2.4 mm thick

1шт.

Prints are not available at time of printing to show accurate location of item 7 shim.

1шт.

7

129754A1

SHIM

65.1 ID x 80 OD x 2.2 mm thick

1шт.

Prints are not available at time of printing to show accurate location of item 7 shim.

1шт.

7

129754A1

SHIM

65.1 ID x 80 OD x 2.1 mm thick

1шт.

Prints are not available at time of printing to show accurate location of item 7 shim.

1шт.

7

129747A1

SHIM

65.1 ID x 80 OD x 2.0 mm thick

1шт.

Prints are not available at time of printing to show accurate location of item 7 shim.

1шт.

7

129746A1

SHIM

65.1 ID x 80 OD x 1.9 mm thick

1шт.

Prints are not available at time of printing to show accurate location of item 7 shim.

1шт.

7

129745A1

SHIM

65.1 ID x 80 OD x 1.8 mm thick

1шт.

Prints are not available at time of printing to show accurate location of item 7 shim.

1шт.

7

129744A1

SHIM

65.1 ID x 80 OD x 1.7 mm thick

1шт.

Prints are not available at time of printing to show accurate location of item 7 shim.

1шт.

7

129742A1

SHIM

65.1 ID x 80 OD x 1.6 mm thick

1шт.

Prints are not available at time of printing to show accurate location of item 7 shim.

1шт.

7

129741A1

SHIM

65.1 ID x 80 OD x 1.5 mm thick

1шт.

Prints are not available at time of printing to show accurate location of item 7 shim.

1шт.

7

129740A1

SHIM

65.1 ID x 80 OD x 1.4 mm thick

1шт.

Prints are not available at time of printing to show accurate location of item 7 shim.

1шт.

7

129739A1

SHIM

65.1 ID x 80 OD x 1.3 mm thick

1шт.

Prints are not available at time of printing to show accurate location of item 7 shim.

1шт.

7

129738A1

SHIM

65.1 ID x 80 OD x 1.2 mm thick

1шт.

Prints are not available at time of printing to show accurate location of item 7 shim.

1шт.

7

129737A1

SHIM

65.1 ID x 80 OD x 1.1 mm thick

1шт.

Prints are not available at time of printing to show accurate location of item 7 shim.

1шт.

7

129736A1

SHIM

65.1 ID x 80 OD x 1.0 mm thick

1шт.

Prints are not available at time of printing to show accurate location of item 7 shim.

1шт.

8

S301887

ROLLER BEARING,80 mm ID x 140 mm OD x 26 mm

roller, rear output yoke

1шт.

9

100251A1

GEAR

output, 114363A1 transmission

1шт.

9

252199A1

PINION

GEAR - output, 241955A1 transmission

1шт.

10

100074A1

COVER

PLATE - output gear

1шт.

11

100075A1

COVER

output gear

1шт.

12

613-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

BOLT - hex, 8 - 1.25 x 16 mm

4шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

14

100247A1

SHAFT

output

1шт.

15

S301895

BALL BEARING,65 mm ID x 120 mm OD x 23 mm

ball, front output yoke

1шт.

16

S301896

WASHER

flat, special, used as spacer

1шт.

17

E135093

SHIM,100mm ID x 119.8mm OD x 1.8mm Thk

1шт.

17

E135096

SHIM,100mm ID x 119.8mm OD x 1.5mm Thk

1шт.

17

E135095

SHIM,1.6mm Thk

1шт.

17

E135094

SHIM,100mm ID x 119.8mm OD x 1.7mm Thk

1шт.

17

185061A1

SHIM

1.0 mm thick

1шт.

17

185062A1

SHIM

1.1 mm thick

1шт.

17

33-1082T1

SHIM

1.2 mm thick, replaces 185063A1 shim

1шт.

17

185064A1

SHIM

1.3 mm thick

1шт.

17

185065A1

SHIM,100mm ID x 119.83mm OD x 1.4mm Thk

1.4 mm thick

1шт.

18

S300472

CIRCLIP

RING - snap, bearing retaining

1шт.

19

100303A1

BRAKE DISC

DISC, BRAKE YOKE - output flange, parking brake, front, see figure 7-2 for parking brake assembly and mounting parts

1шт.
