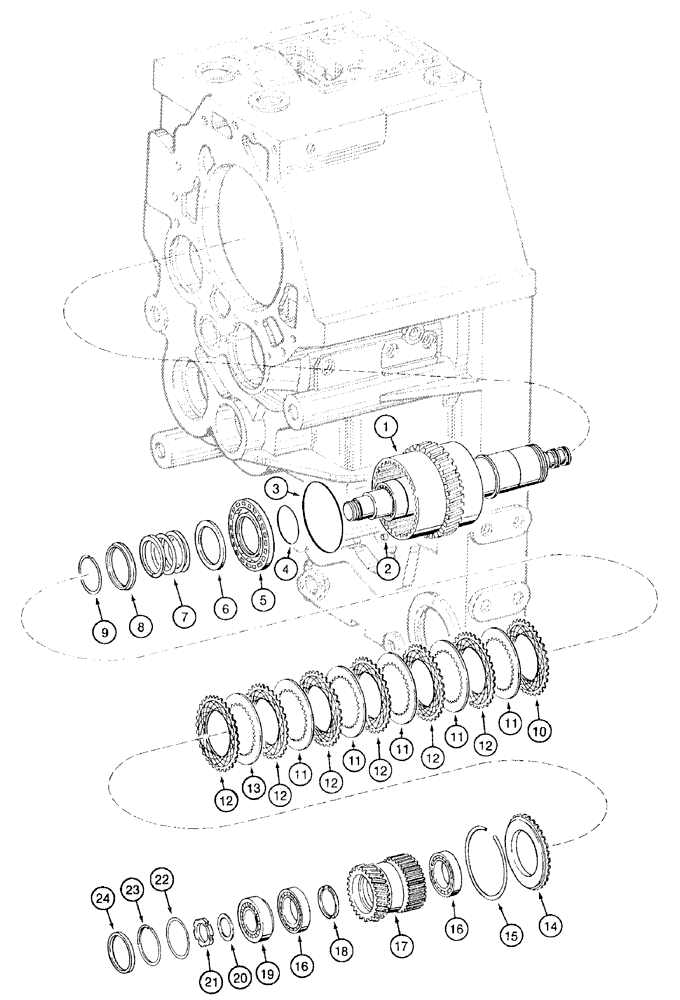

Запчасти Case 921B (6-025[A]) - TRANSMISSION ASSEMBLY - FOURTH GEAR AND CLUTCH, P.I.N. JEE0052701 AND AFTER (06) - POWER TRAIN

241955A1

TRANSMISSION

ASSEMBLY - new, ZF No. 4646 004 065, parts list figures 6-8 - 6-36, 7-2 and item 4 on figure 6-4 and items 4 - 6 on figure 6-6

1шт.

241955A1R

REMAN-TRANSMISSION

Remanufactured Transmission; For N.A. only; 921B, P.I.N. JEE0052701 & After, Model Number 4WG250, Stock Number 4646 004 066

1шт.

241955A1C

CORE-TRANSMISSION

Return number - For N.A. only

1шт.

1

252196A1

HOUSING

CARRIER - fourth and third clutch, with shaft

1шт.

2

199175A1

VALVE

BREATHER - clutch carrier

1шт.

3

100139A1

O-RING,170mm ID x 3mm Width

large, piston OD

1шт.

4

100138A1

O-RING,104.5mm ID x 3mm Width

small, piston ID

1шт.

5

252174A1

PISTON

clutch

1шт.

6

252178A1

WASHER

flat, use as spacer

1шт.

7

185382A1

SPRING

clutch

1шт.

8

252179A1

RING, SNAP

RING SNAP guide

1шт.

9

100147A1

RING, SNAP

RING SNAP retaining, spring

1шт.

10

129659A1

DISC

inner, external teeth

1шт.

11

100150A1

CLUTCH DISC

CLUTCH DISK internal teeth, 132.3 ID x 186 OD x 3.5 mm

5шт.

12

129658A1

DISC

external teeth

6шт.

13

100148A1

CLUTCH DISC

CLUTCH DISK internal teeth, 132.3 ID x 186 OD x 2.5 mm, if used

1шт.

13

100149A1

CLUTCH DISC

CLUTCH DISK internal teeth, 132.3 ID x 186 OD x 3.0 mm, if used

1шт.

13

100150A1

CLUTCH DISC

CLUTCH DISK internal teeth, 132.3 ID x 186 OD x 3.5 mm, if used

1шт.

13

185045A1

NOTCHED DISK

internal teeth, 132.3 ID x 186 OD x 4.0 mm, if used

1шт.

14

129657A1

NOTCHED DISK

PLATE - backing

1шт.

15

252182A1

RING, SNAP

RING SNAP retaining, 2.95 mm thick, disc, if used

1шт.

15

252183A1

RING, SNAP

RING SNAP retaining, 2.90 mm thick, disc, if used

1шт.

15

252184A1

RING, SNAP

RING SNAP retaining, 2.85 mm thick, disc, if used

1шт.

15

252185A1

RING, SNAP

RING SNAP retaining, 2.80 mm thick, disc, if used

1шт.

15

252186A1

RING, SNAP

RING SNAP retaining, 2.75 mm thick, disc, if used

1шт.

15

252187A1

RING, SNAP

RING SNAP retaining, 2.70 mm thick, disc, if used

1шт.

15

252188A1

RING, SNAP

RING SNAP retaining, 2.65 mm thick, disc, if used

1шт.

15

252189A1

RING, SNAP

RING SNAP retaining, 2.60 mm thick, disc, if used

1шт.

15

252190A1

RING, SNAP

RING SNAP retaining, 2.55 mm thick, disc, if used

1шт.

15

252191A1

RING, SNAP

RING SNAP retaining, 2.45 mm thick, disc, if used

1шт.

16

185533A1

BALL BEARING,65 mm ID x 100 mm OD x 18 mm

ball, inner

2шт.

17

184544A1

PINION

GEAR - fourth clutch

1шт.

18

100253A1

SPACER

ball bearings

1шт.

19

129671A1

ROLLER BEARING

tapered roller, includes cup, outer

1шт.

20

100159A1

SPACER

bearing

1шт.

21

100190A1

SLOTTED NUT,M50 x 1.5

special, slotted

1шт.

22

100163A1

SEALING RING

SEALRING

1шт.

23

100164A1

RING, SNAP

RING SNAP bearing retaining

1шт.

24

100161A1

COVER

end, fourth clutch

1шт.
