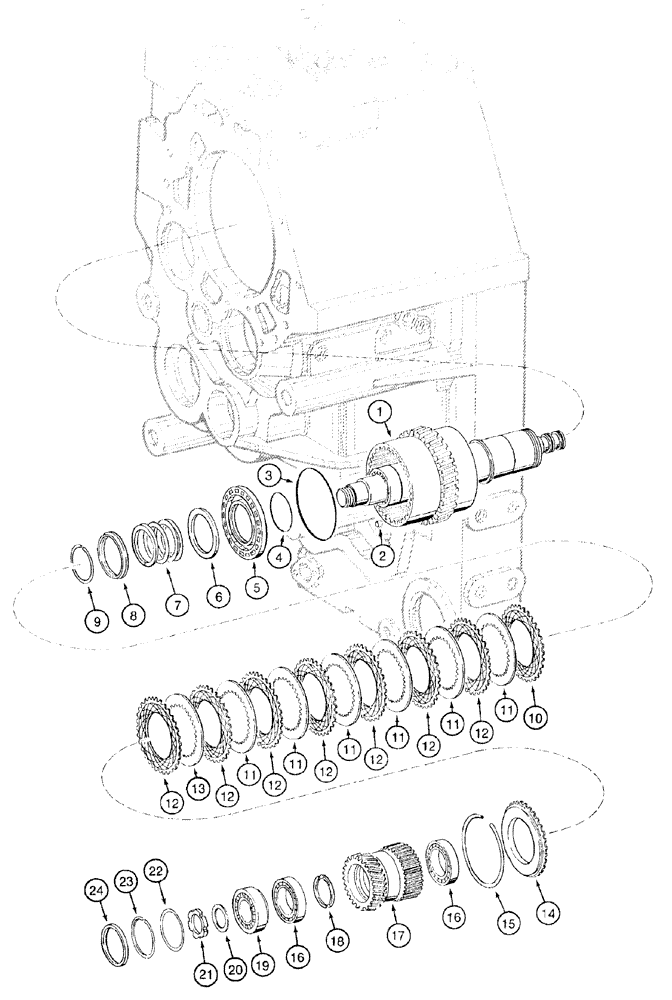

Запчасти Case 921B (6-024) - TRANSMISSION ASSEMBLY - FOURTH GEAR AND CLUTCH, PRIOR TO P.I.N. JEE0052701 (06) - POWER TRAIN

114363A1

TRANSMISSION

ASSEMBLY - new, ZF No. 4646 004 027, parts list figures 6-8 - 6-36, 7-2, and item 4, figure 6-4 and items 4 - 6, figure 6-6

1шт.

114363A1R

REMAN-TRANSMISSION

921, Model Number 4WG250, Stock Number 4646 004 037

1шт.

114363A1C

CORE-TRANSMISSION

Return Number

1шт.

1

252196A1

HOUSING

CARRIER - fourth and third clutch, with shaft, replaces 129685A1 carrier

1шт.

2

199175A1

VALVE

BREATHER - clutch carrier, replaces 100136A1 breather

1шт.

3

100139A1

O-RING,170mm ID x 3mm Width

large, piston OD

1шт.

4

100138A1

O-RING,104.5mm ID x 3mm Width

small, piston ID

1шт.

5

129654A1

PISTON

clutch

1шт.

6

252178A1

WASHER

flat, use as spacer, replaces 100145A1 washer or 242709A1 washer

1шт.

7

185382A1

SPRING

clutch

1шт.

8

252179A1

RING, SNAP

RING SNAP guide, replaces 100176A1 ring or 242098A1 ring

1шт.

9

100147A1

RING, SNAP

RING SNAP retaining, spring

1шт.

10

129659A1

DISC

inner, external teeth

1шт.

11

100148A1

CLUTCH DISC

CLUTCH DISK internal teeth, 132.3 ID x 186 OD x 2.5 mm

6шт.

12

129658A1

DISC

external teeth

7шт.

13

100148A1

CLUTCH DISC

CLUTCH DISK internal teeth, 132.3 ID x 186 OD x 2.5 mm, if used

1шт.

13

100149A1

CLUTCH DISC

CLUTCH DISK internal teeth, 132.3 ID x 186 OD x 3.0 mm, if used

1шт.

13

100150A1

CLUTCH DISC

CLUTCH DISK internal teeth, 132.3 ID x 186 OD x 3.5 mm, if used

1шт.

13

185045A1

NOTCHED DISK

internal teeth, 132.3 ID x 186 OD x 4.0 mm, if used

1шт.

14

129657A1

NOTCHED DISK

PLATE - backing

1шт.

15

100140A1

RING, SNAP

RING SNAP retaining, disc

1шт.

16

185533A1

BALL BEARING,65 mm ID x 100 mm OD x 18 mm

ball, inner

2шт.

17

129686A1

PINION

GEAR - fourth clutch

1шт.

18

100253A1

SPACER

ball bearings

1шт.

19

129671A1

ROLLER BEARING

tapered roller, includes cup, outer

1шт.

20

100159A1

SPACER

bearing

1шт.

21

100190A1

SLOTTED NUT,M50 x 1.5

special, slotted

1шт.

22

100163A1

SEALING RING

SEALRING

1шт.

23

100164A1

RING, SNAP

RING SNAP bearing retaining

1шт.

24

100161A1

COVER

end, fourth clutch

1шт.
