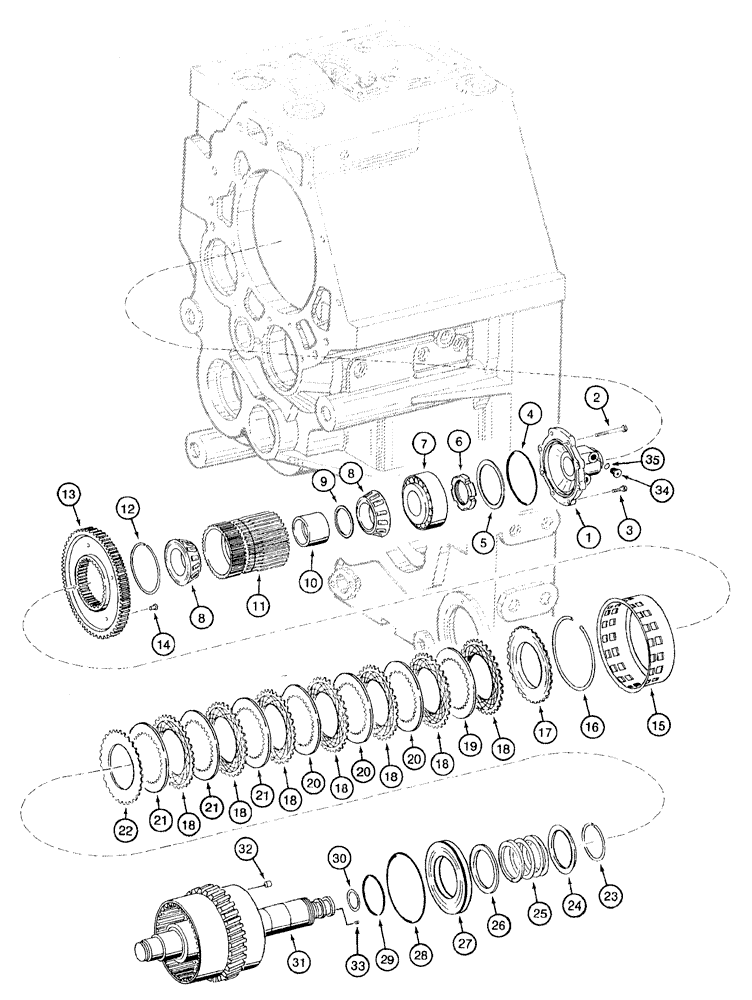

Запчасти Case 921B (6-023[C]) - TRANSMISSION ASSEMBLY - SECOND GEAR AND CLUTCH, P.I.N. JEE0052701 AND AFTER (06) - POWER TRAIN

241955A1

TRANSMISSION

ASSEMBLY - new, ZF No. 4646 044 065, parts list figures 6-8 - 6-36, 7-2 and item 4 on figure 6-4 and items 4 - 6 on figure 6-6

1шт.

241955A1R

REMAN-TRANSMISSION

Remanufactured Transmission; For N.A. only; 921B, P.I.N. JEE0052701 & After, Model Number 4WG250, Stock Number 4646 004 066

1шт.

241955A1C

CORE-TRANSMISSION

Return number - For N.A. only

1шт.

1

252195A1

PROTECTOR

COVER - end, second clutch

1шт.

2

100245A1

SCREW

BOLT - hex, special, 10 - 1.5 x 90 mm

2шт.

3

100438A1

SCREW

BOLT - hex, special, 10 - 1.5 x 30 mm

6шт.

4

100244A1

O-RING,138mm ID x 3mm Width

O-RING - end cover

1шт.

5

100232A1

SHIM

1.0 mm, if used

1шт.

5

100233A1

SHIM

1.1 mm, if used

1шт.

5

100234A1

SHIM

1.2 mm, if used

1шт.

5

100235A1

SHIM

1.3 mm, if used

1шт.

5

100236A1

BLOCK

SHIM - 1.4 mm, if used

1шт.

5

100237A1

BLOCK

SHIM - 1.5 mm, if used

1шт.

5

100242A1

BLOCK

SHIM - 2.0 mm, if used

1шт.

6

100223A1

SLOTTED NUT,M65 x 1.5

special, slotted

1шт.

7

100220A1

ROLLER BEARING,65.088mm ID x 135.755mm OD x 53.975mm

roller

1шт.

8

ST2018A

BEARING ASSY,66.67mm ID x 30.24mm W

tapered roller, use with item 11, gear, replaces 100212A1 bearing

2шт.

9

100215A1

SHIM

3.6 mm, if used

1шт.

9

100217A1

BLOCK

SHIM - 3.8 mm, if used

1шт.

9

100219A1

BLOCK

SHIM - 4.0 mm, if used

1шт.

10

184425A1

BUSHING

bearing

1шт.

11

252193A1

PINION

GEAR - inner, internal bearing cups, use with item 8, bearing

1шт.

12

252194A1

RING, SNAP

RING SNAP retaining, bearing

1шт.

252192A1

PINION

GEAR ASSEMBLY - spur, outer

1шт.

13

NSS

NOT SOLD SEPARAT

GEAR - spur, outer

1шт.

14

NSS

NOT SOLD SEPARAT

RIVET - special, gear to sensing ring

4шт.

15

NSS

NOT SOLD SEPARAT

RING - speed sensing

1шт.

16

252182A1

RING, SNAP

RING SNAP retaining, 2.95 mm thick, disc, if used

1шт.

16

252183A1

RING, SNAP

RING SNAP retaining, 2.90 mm thick, disc, if used

1шт.

16

252184A1

RING, SNAP

RING SNAP retaining, 2.85 mm thick, disc, if used

1шт.

16

252185A1

RING, SNAP

RING SNAP retaining, 2.80 mm thick, disc, if used

1шт.

16

252186A1

RING, SNAP

RING SNAP retaining, 2.75 mm thick, disc, if used

1шт.

16

252187A1

RING, SNAP

RING SNAP retaining, 2.70 mm thick, disc, if used

1шт.

16

252188A1

RING, SNAP

RING SNAP retaining, 2.65 mm thick, disc, if used

1шт.

16

252189A1

RING, SNAP

RING SNAP retaining, 2.60 mm thick, disc, if used

1шт.

16

252190A1

RING, SNAP

RING SNAP retaining, 2.55 mm thick, disc, if used

1шт.

16

252191A1

RING, SNAP

RING SNAP retaining, 2.45 mm thick, disc, if used

1шт.

17

129657A1

NOTCHED DISK

PLATE - backing

1шт.

18

129658A1

DISC

external teeth

7шт.

19

100148A1

CLUTCH DISC

CLUTCH DISK internal teeth, 132.3 ID x 186 OD x 2.5 mm, if used

1шт.

19

100149A1

CLUTCH DISC

CLUTCH DISK internal teeth, 132.3 ID x 186 OD x 3.0 mm, if used

1шт.

19

100150A1

CLUTCH DISC

CLUTCH DISK internal teeth, 132.3 ID x 186 OD x 3.5 mm, if used

1шт.

19

185045A1

NOTCHED DISK

internal teeth, 132.3 ID x 186 OD x 4.0 mm, if used

1шт.

20

100149A1

CLUTCH DISC

CLUTCH DISK internal teeth, 132.3 ID x 186 OD x 3.0 mm

3шт.

21

100150A1

CLUTCH DISC

CLUTCH DISK internal teeth, 132.3 ID x 186 OD x 3.5 mm

3шт.

22

129659A1

DISC

inner, external teeth

1шт.

23

100147A1

RING, SNAP

RING SNAP retaining, spring

1шт.

24

252179A1

RING, SNAP

RING SNAP guide

1шт.

25

185382A1

SPRING

clutch

1шт.

26

252178A1

WASHER

flat, use as spacer

1шт.

27

252175A1

PISTON

clutch

1шт.

28

252176A1

O-RING

large, piston OD

1шт.

29

252177A1

O-RING

small, piston ID

1шт.

30

100249A1

CIRCLIP

piston

3шт.

31

252180A1

DISC

CARRIER - reverse and second clutch

1шт.

32

199175A1

VALVE

BREATHER - clutch carrier

1шт.

33

100133A1

SCREW,Pan, M5 x 35mm, Class 4.8

set, special

2шт.

34

A52230

PLUG

hex socket, 10 mm - 1

2шт.

35

S300491

O-RING,8mm ID x 1.5mm Width

special

2шт.
