Запчасти Case 921B (6-022) - TRANSMISSION ASSEMBLY - SECOND GEAR AND CLUTCH, PRIOR TO P.I.N. JEE0052701 (06) - POWER TRAIN

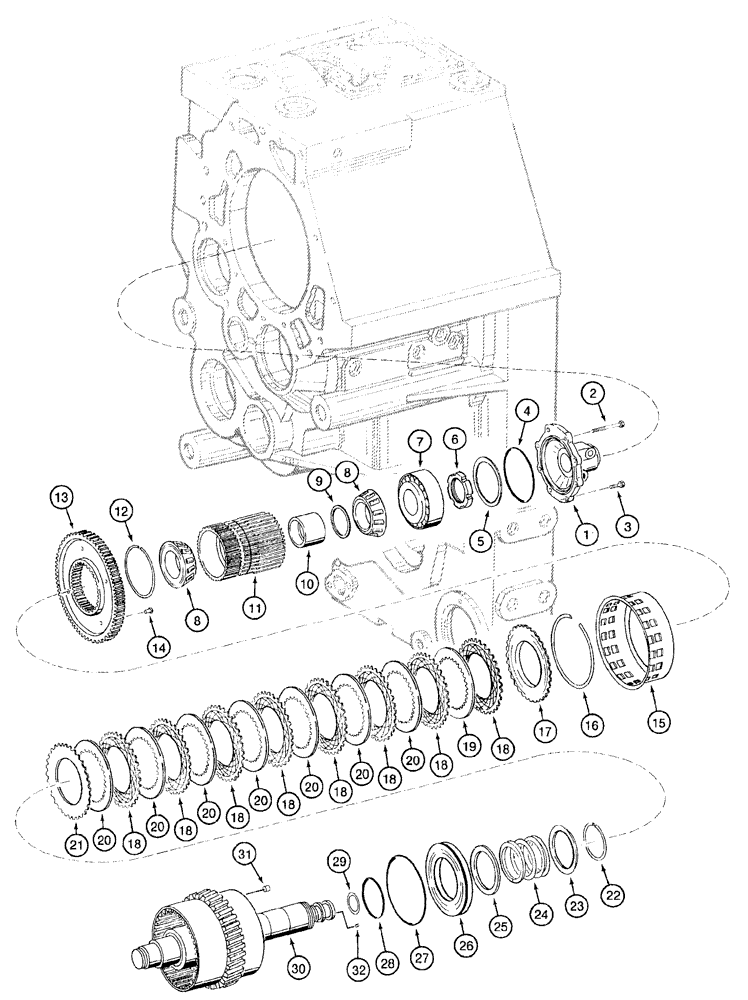

Схема запчастей Case 921B - (6-022) - TRANSMISSION ASSEMBLY - SECOND GEAR AND CLUTCH, PRIOR TO P.I.N. JEE0052701 (06) - POWER TRAIN
27
24
9
8
18
31
20
20
29
22
14
21
20
20
26
8
20
16
2
18
11
28
3
18
18
17
20
6
1
23
10
18
30
32
18
18
25
18
7
12
5
20
4
13
19
15

Артикул

Название

Примечание

Количество

114363A1

TRANSMISSION

ASSEMBLY - new, ZF No. 4646 004 027, parts list figures 6-8 - 6-36, 7-3, and item 4, figure 6-4 and items 4 - 6, figure 6-6

1шт.

114363A1R

REMAN-TRANSMISSION

921, Model Number 4WG250, Stock Number 4646 004 037

1шт.

114363A1C

CORE-TRANSMISSION

Return Number

1шт.

1

100243A1

HOUSING

COVER - end, second clutch

1шт.

2

100245A1

SCREW

BOLT - hex, special, 10 - 1.5 x 90 mm

2шт.

3

100438A1

SCREW

BOLT - hex, special, 10 - 1.5 x 30 mm

6шт.

4

100244A1

O-RING,138mm ID x 3mm Width

O-RING - end cover, end cover

1шт.

5

100232A1

SHIM

1.0 mm, if used

1шт.

5

100233A1

SHIM

1.1 mm, if used

1шт.

5

100234A1

SHIM

1.2 mm, if used

1шт.

5

100235A1

SHIM

1.3 mm, if used

1шт.

5

100236A1

BLOCK

SHIM - 1.4 mm, if used

1шт.

5

100237A1

BLOCK

SHIM - 1.5 mm, if used

1шт.

5

100242A1

BLOCK

SHIM - 2.0 mm, if used

1шт.

6

100223A1

SLOTTED NUT,M65 x 1.5

special, slotted

1шт.

7

100220A1

ROLLER BEARING,65.088mm ID x 135.755mm OD x 53.975mm

roller

1шт.

8

ST2018A

BEARING ASSY,66.67mm ID x 30.24mm W

tapered roller bearing, use with item 11 , gear, replaces 100212A1 bearing

2шт.

9

100215A1

SHIM

3.6 mm, if used

1шт.

9

100217A1

BLOCK

SHIM - 3.8 mm, if used

1шт.

9

100219A1

BLOCK

SHIM - 4.0 mm, if used

1шт.

10

100213A1

BUSHING

bearing, no longer available, order 184425A1 bushing, item 10, figure 6-23C

1шт.

11

184423A1

PINION

GEAR - inner, internal bearing cup, use with item 8, bearing, replaces 100211A1 gear

1шт.

12

129684A1

RING, SNAP

RING SNAP retaining, bearing

1шт.

129683A1

PINION

GEAR ASSEMBLY - spur, outer

1шт.

13

NSS

NOT SOLD SEPARAT

GEAR - spur, outer

1шт.

14

NSS

NOT SOLD SEPARAT

RIVET - special, gear to sensing ring

4шт.

15

NSS

NOT SOLD SEPARAT

RING - speed sensing

1шт.

16

100140A1

RING, SNAP

RING SNAP retaining, disc

1шт.

17

129657A1

NOTCHED DISK

PLATE - backing

1шт.

18

129658A1

DISC

external teeth

8шт.

19

100148A1

CLUTCH DISC

CLUTCH DISK internal teeth, 132.3 ID x 186 OD x 2.5 mm, if used

1шт.

19

100149A1

CLUTCH DISC

CLUTCH DISK internal teeth, 132.3 ID x 186 OD x 3.0 mm, if used

1шт.

19

100150A1

CLUTCH DISC

CLUTCH DISK internal teeth, 132.3 ID x 186 OD x 3.5 mm, if used

1шт.

19

185045A1

NOTCHED DISK

internal teeth, 132.3 ID x 186 OD x 4.0 mm, if used

1шт.

20

100148A1

CLUTCH DISC

CLUTCH DISK internal teeth, 132.3 ID x 186 OD x 2.5 mm

7шт.

21

129659A1

DISC

inner, external teeth

1шт.

22

100147A1

RING, SNAP

RING SNAP retaining, spring

1шт.

23

252179A1

RING, SNAP

RING SNAP guide, replaces 100176A1 ring or 242098A1 ring

1шт.

24

185382A1

SPRING

clutch

1шт.

25

252178A1

WASHER

flat, use as spacer, replaces 100145A1 washer or 242709A1 washer

1шт.

26

129654A1

PISTON

clutch

1шт.

27

100139A1

O-RING,170mm ID x 3mm Width

large, piston OD

1шт.

28

100138A1

O-RING,104.5mm ID x 3mm Width

small, piston ID

1шт.

29

100249A1

CIRCLIP

piston

3шт.

30

185141A1

PINION CARRIER

reverse and second clutch

1шт.

31

199175A1

VALVE

BREATHER - clutch carrier, replaces 100136A1 breather

1шт.

32

100133A1

SCREW,Pan, M5 x 35mm, Class 4.8

set, special

2шт.

Выбрано товаров: 47
