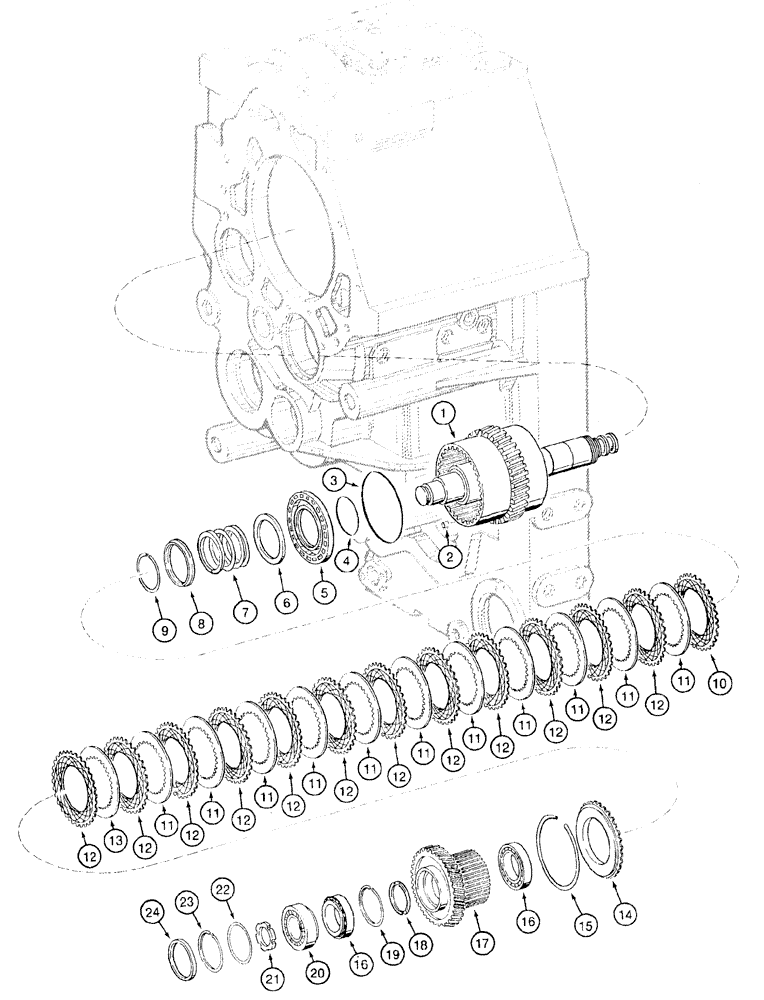

Запчасти Case 921B (6-021[A]) - TRANSMISSION ASSEMBLY - REVERSE GEAR AND CLUTCH, P.I.N. JEE0052701 AND AFTER (06) - POWER TRAIN

241955A1

TRANSMISSION

ASSEMBLY - new, ZF No. 4646 004 065, parts list figures 6-8 - 6-36, 7-3 and item 4 on figure 6-5 and items 4 - 6 on figure 6-6

1шт.

241955A1R

REMAN-TRANSMISSION

Remanufactured Transmission; For N.A. only; 921B, P.I.N. JEE0052701 & After, Model Number 4WG250, Stock Number 4646 004 066

1шт.

241955A1C

CORE-TRANSMISSION

Return number - For N.A. only

1шт.

1

252180A1

DISC

CARRIER - reverse and second clutch

1шт.

2

199175A1

VALVE

BREATHER - clutch carrier

1шт.

3

252176A1

O-RING

large, piston OD

1шт.

4

252177A1

O-RING

small, piston ID

1шт.

5

252175A1

PISTON

clutch

1шт.

6

252178A1

WASHER

flat, use as spacer

1шт.

7

185382A1

SPRING

clutch

1шт.

8

252179A1

RING, SNAP

RING SNAP guide

1шт.

9

100147A1

RING, SNAP

RING SNAP retaining, spring

1шт.

10

129659A1

DISC

inner, external teeth

1шт.

11

100148A1

CLUTCH DISC

CLUTCH DISK internal teeth, 132.3 ID x 186 OD x 2.5 mm

11шт.

12

129658A1

DISC

external teeth

12шт.

13

100148A1

CLUTCH DISC

CLUTCH DISK internal teeth, 132.3 ID x 186 OD x 2.5 mm, if used

1шт.

13

100149A1

CLUTCH DISC

CLUTCH DISK internal teeth, 132.3 ID x 186 OD x 3.0 mm, if used

1шт.

13

100150A1

CLUTCH DISC

CLUTCH DISK internal teeth, 132.3 ID x 186 OD x 3.5 mm, if used

1шт.

13

185045A1

NOTCHED DISK

internal teeth, 132.3 ID x 186 OD x 4.0 mm, if used

1шт.

14

129657A1

NOTCHED DISK

PLATE - backing

1шт.

15

252182A1

RING, SNAP

RING SNAP retaining, 2.95 mm thick, disc, if used

1шт.

15

252183A1

RING, SNAP

RING SNAP retaining, 2.90 mm thick, disc, if used

1шт.

15

252184A1

RING, SNAP

RING SNAP retaining, 2.85 mm thick, disc, if used

1шт.

15

252185A1

RING, SNAP

RING SNAP retaining, 2.80 mm thick, disc, if used

1шт.

15

252186A1

RING, SNAP

RING SNAP retaining, 2.75 mm thick, disc, if used

1шт.

15

252187A1

RING, SNAP

RING SNAP retaining, 2.70 mm thick, disc, if used

1шт.

15

252188A1

RING, SNAP

RING SNAP retaining, 2.65 mm thick, disc, if used

1шт.

15

252189A1

RING, SNAP

RING SNAP retaining, 2.60 mm thick, disc, if used

1шт.

15

252190A1

RING, SNAP

RING SNAP retaining, 2.55 mm thick, disc, if used

1шт.

15

252191A1

RING, SNAP

RING SNAP retaining, 2.45 mm thick, disc, if used

1шт.

16

100188A1

ROLLER BEARING,65mm ID x 110mm OD x 28mm

tapered roller, includes cup, inner

2шт.

17

100177A1

GEAR

reverse clutch

1шт.

18

129670A1

BLOCK

SHIM - 3.6 mm thick, if used

1шт.

18

129669A1

BLOCK

SHIM - 3.8 mm thick, if used

1шт.

18

129668A1

BLOCK

SHIM - 3.9 mm thick, if used

1шт.

18

129667A1

BLOCK

SHIM - 4.0 mm thick, if used

1шт.

18

129665A1

BLOCK

SHIM - 4.1 mm thick, if used

1шт.

18

129663A1

BLOCK

SHIM - 4.2 mm thick, if used

1шт.

18

129662A1

BLOCK

SHIM - 4.3 mm thick, if used

1шт.

18

129661A1

BLOCK

SHIM - 4.4 mm thick, if used

1шт.

18

129660A1

CLUTCH DISC

CLUTCH DISK SHIM - 4.5 mm thick, if used

1шт.

19

933078R1

SNAP RING,M110, Int

RING - snap, inner

1шт.

20

100189A1

ROLLER BEARING,50.8mm ID x 112.712mm OD x 30.162mm

tapered roller, includes cup, outer

1шт.

21

100190A1

SLOTTED NUT,M50 x 1.5

special, slotted

1шт.

22

129682A1

SEALING RING

SEALRING ring

1шт.

23

100206A1

CIRCLIP

bearing retaining, outer

1шт.

24

100207A1

COVER

COVER - end, reverse clutch

1шт.
