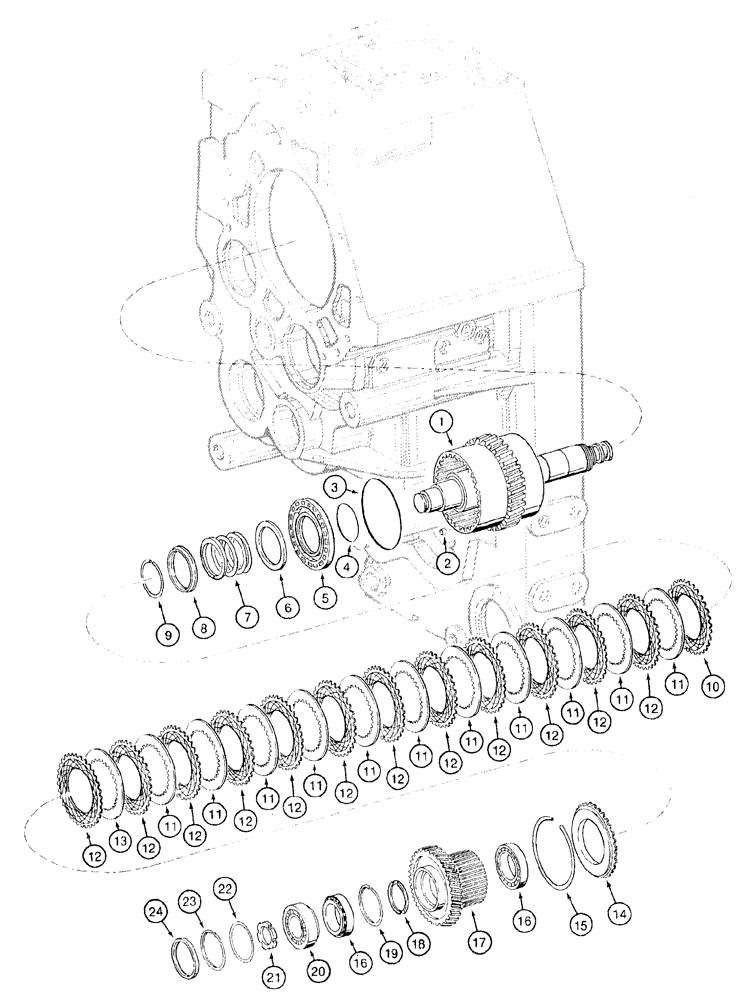

Запчасти Case 921B (6-020) - TRANSMISSION ASSEMBLY - REVERSE GEAR AND CLUTCH, PRIOR TO P.I.N. JEE0052701 (06) - POWER TRAIN

114363A1

TRANSMISSION

ASSEMBLY - new, ZF No. 4646 004 027, parts list figures 6-8 - 6-36, 7-3, and item 4, figure 6-4 and items 4 - 6, figure 6-6

1шт.

114363A1R

REMAN-TRANSMISSION

921, Model Number 4WG250, Stock Number 4646 004 037

1шт.

114363A1C

CORE-TRANSMISSION

Return Number

1шт.

1

185141A1

PINION CARRIER

reverse and second clutch

1шт.

2

199175A1

VALVE

BREATHER - clutch carrier, replaces 100136A1 breather

1шт.

3

100139A1

O-RING,170mm ID x 3mm Width

large, piston OD

1шт.

4

100138A1

O-RING,104.5mm ID x 3mm Width

small, piston ID

1шт.

5

129654A1

PISTON

clutch

1шт.

6

252178A1

WASHER

flat, use as spacer, replaces 100145A1 washer or 242709A1 washer

1шт.

7

185382A1

SPRING

clutch

1шт.

8

252179A1

RING, SNAP

RING SNAP guide, replaces 100176A1 ring or 242098A1 ring

1шт.

9

100147A1

RING, SNAP

RING SNAP retaining, spring

1шт.

10

129659A1

DISC

inner, external teeth

1шт.

11

100148A1

CLUTCH DISC

CLUTCH DISK internal teeth, 132.3 ID x 186 OD x 2.5 mm

11шт.

12

129658A1

DISC

external teeth

12шт.

13

100148A1

CLUTCH DISC

CLUTCH DISK internal teeth, 132.3 ID x 186 OD x 2.5 mm, if used

1шт.

13

100149A1

CLUTCH DISC

CLUTCH DISK internal teeth, 132.3 ID x 186 OD x 3.0 mm, if used

1шт.

13

100150A1

CLUTCH DISC

CLUTCH DISK internal teeth, 132.3 ID x 186 OD x 3.5 mm, if used

1шт.

13

185045A1

NOTCHED DISK

internal teeth, 132.3 ID x 186 OD x 4.0 mm, if used

1шт.

14

129657A1

NOTCHED DISK

PLATE - backing

1шт.

15

100140A1

RING, SNAP

RING SNAP retaining, disc

1шт.

16

100188A1

ROLLER BEARING,65mm ID x 110mm OD x 28mm

tapered roller, includes cup, inner

2шт.

17

100177A1

GEAR

reverse clutch

1шт.

18

129670A1

BLOCK

SHIM - 3.6 mm thick, if used

1шт.

18

129669A1

BLOCK

SHIM - 3.8 mm thick, if used

1шт.

18

129668A1

BLOCK

SHIM - 3.9 mm thick, if used

1шт.

18

129667A1

BLOCK

SHIM - 4.0 mm thick, if used

1шт.

18

129665A1

BLOCK

SHIM - 4.1 mm thick, if used

1шт.

18

129663A1

BLOCK

SHIM - 4.2 mm thick, if used

1шт.

18

129662A1

BLOCK

SHIM - 4.3 mm thick, if used

1шт.

18

129661A1

BLOCK

SHIM - 4.4 mm thick, if used

1шт.

18

129660A1

CLUTCH DISC

CLUTCH DISK SHIM - 4.5 mm thick, if used

1шт.

19

933078R1

SNAP RING,M110, Int

RING - snap, inner

1шт.

20

100189A1

ROLLER BEARING,50.8mm ID x 112.712mm OD x 30.162mm

tapered roller, includes cup, outer

1шт.

21

100190A1

SLOTTED NUT,M50 x 1.5

special, slotted

1шт.

22

129682A1

SEALING RING

SEALRING ring

1шт.

23

100206A1

CIRCLIP

bearing retaining, outer

1шт.

24

100207A1

COVER

COVER - end, reverse clutch

1шт.
