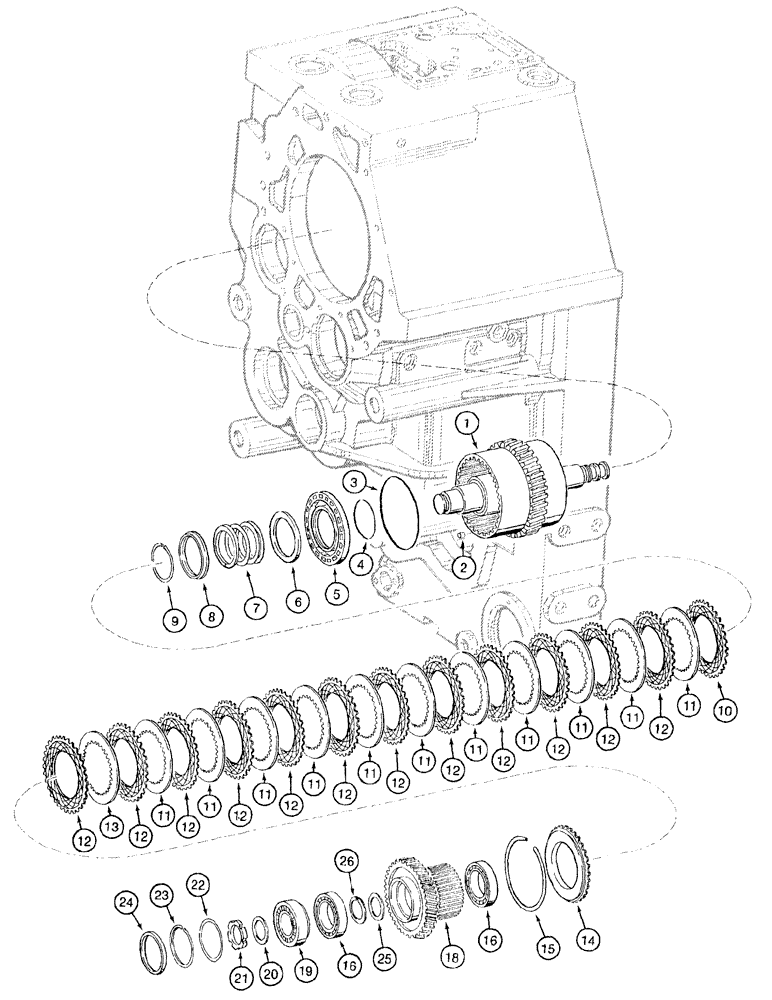

Запчасти Case 921B (6-016) - TRANSMISSION ASSEMBLY - FORWARD GEAR AND CLUTCH, PRIOR TO P.I.N. JEE0052701 (06) - POWER TRAIN

114363A1

TRANSMISSION

ASSEMBLY - new, ZF No. 4646 004 027, parts list figures 6-8 - 6-36, 7-3, and item 4, figure 6-4 and items 4 - 6, figure 6-6

1шт.

114363A1R

REMAN-TRANSMISSION

921, Model Number 4WG250, Stock Number 4646 004 037

1шт.

114363A1C

CORE-TRANSMISSION

Return Number

1шт.

1

129653A1

PINION CARRIER

forward and low clutch

1шт.

2

199175A1

VALVE

BREATHER - clutch carrier, replaces 100136A1 breather

1шт.

3

100139A1

O-RING,170mm ID x 3mm Width

large, piston OD

1шт.

4

100138A1

O-RING,104.5mm ID x 3mm Width

small, piston ID

1шт.

5

129654A1

PISTON

clutch

1шт.

6

252178A1

WASHER

flat, use as spacer, replaces 100145A1 washer or 242709A1 washer

1шт.

7

185382A1

SPRING

clutch

1шт.

8

252179A1

RING, SNAP

RING SNAP guide, replaces 100176A1 ring or 242098A1 ring

1шт.

9

100147A1

RING, SNAP

RING SNAP retaining, spring

1шт.

10

129659A1

DISC

inner, external teeth, inner

1шт.

11

100148A1

CLUTCH DISC

CLUTCH DISK internal teeth, 132.3 ID x 186 OD x 2.5 mm

11шт.

12

129658A1

DISC

external teeth

12шт.

13

100148A1

CLUTCH DISC

CLUTCH DISK internal teeth, 132.3 ID x 186 OD x 2.5 mm, if used

1шт.

13

100149A1

CLUTCH DISC

CLUTCH DISK internal teeth, 132.3 ID x 186 OD x 3.0 mm, if used

1шт.

13

100150A1

CLUTCH DISC

CLUTCH DISK internal teeth, 132.3 ID x 186 OD x 3.5 mm, if used

1шт.

13

185045A1

NOTCHED DISK

internal teeth, 132.3 ID x 186 OD x 4.0 mm, if used

1шт.

14

129657A1

NOTCHED DISK

PLATE - backing

1шт.

15

100140A1

RING, SNAP

RING SNAP retaining, disc

1шт.

16

100188A1

ROLLER BEARING,65mm ID x 110mm OD x 28mm

tapered roller, includes cup, inner

2шт.

18

100177A1

GEAR

reverse clutch

1шт.

19

129671A1

ROLLER BEARING

tapered roller, includes cup, outer

1шт.

20

100159A1

SPACER

bearing

1шт.

21

110807A1

SLOTTED NUT

special, slotted

1шт.

22

100163A1

SEALING RING

SEALRING

1шт.

23

100164A1

RING, SNAP

RING SNAP snap, bearing retaining

1шт.

24

100161A1

COVER

end, forward clutch

1шт.

25

129660A1

CLUTCH DISC

CLUTCH DISK SHIM - 4.5 mm thick, if used

1шт.

25

129661A1

BLOCK

SHIM - 4.4 mm thick, if used

1шт.

25

129662A1

BLOCK

SHIM - 4.3 mm thick, if used

1шт.

25

129663A1

BLOCK

SHIM - 4.2 mm thick, if used

1шт.

25

129665A1

BLOCK

SHIM - 4.1 mm thick, if used

1шт.

25

129667A1

BLOCK

SHIM - 4.0 mm thick, if used

1шт.

25

129668A1

BLOCK

SHIM - 3.9 mm thick, if used

1шт.

25

129669A1

BLOCK

SHIM - 3.8 mm thick, if used

1шт.

25

129670A1

BLOCK

SHIM - 3.6 mm thick, if used

1шт.

26

933078R1

SNAP RING,M110, Int

RING - snap, bearing retaining

1шт.
