Запчасти Case 921B (6-012) - TRANSMISSION ASSEMBLY - INPUT GEAR AND SHAFT (06) - POWER TRAIN

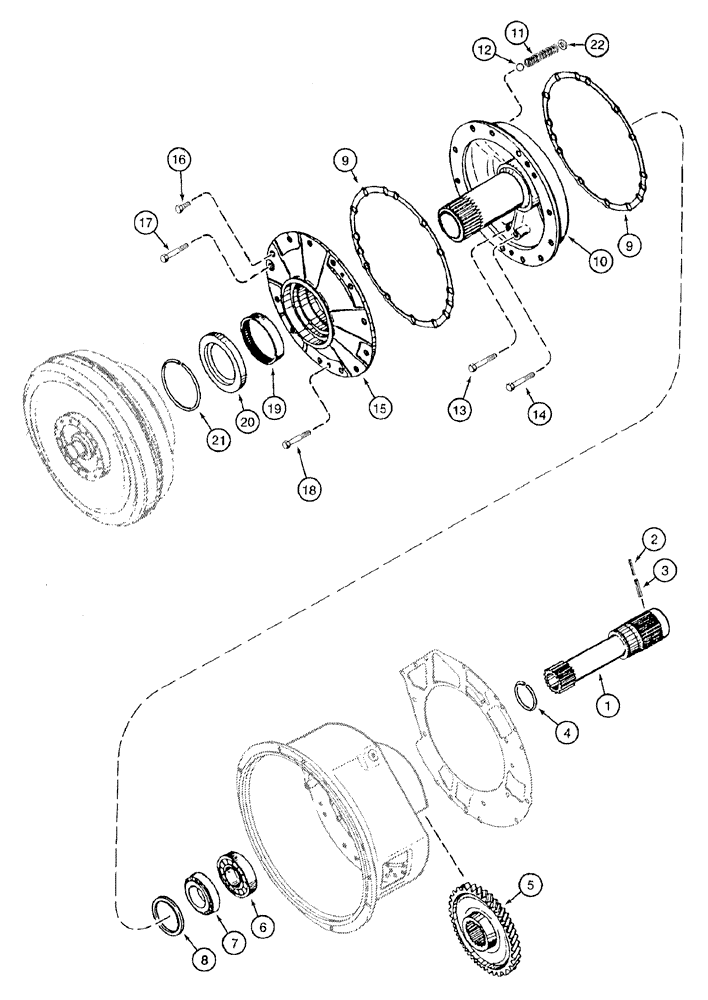

Схема запчастей Case 921B - (6-012) - TRANSMISSION ASSEMBLY - INPUT GEAR AND SHAFT (06) - POWER TRAIN
9
7
19
20
6
2
21
18
15
3
1
22
12
10
8
17
9
16
13
5
14
4
11

Артикул

Название

Примечание

Количество

114363A1

TRANSMISSION

ASSEMBLY - new, ZF No. 4646 004 027, prior to P.I.N. JEE0052701, parts list figures 6-8 - 6-36, 7-3, and item 4, figure 6-4 and items 4 - 6, figure 6-6

1шт.

114363A1R

REMAN-TRANSMISSION

921, Model Number 4WG250, Stock Number 4646 004 037

1шт.

114363A1C

CORE-TRANSMISSION

Return Number

1шт.

241955A1

TRANSMISSION

ASSEMBLY - new, ZF No. 4646 004 065, P.I.N. JEE0052701 and after, parts list figures 6-8 -6-36, 7-3 and item 4 on figure 6-4 and items 4 - 6 on figure 6-6

1шт.

241955A1R

REMAN-TRANSMISSION

Remanufactured Transmission; 921B, P.I.N. JEE0052701 & After, Model Number 4WG250, Stock Number 4646 004 066

1шт.

241955A1C

CORE-TRANSMISSION

Return Number

1шт.

1

S301828

SHAFT

input, pump

1шт.

2

E135026

PIN,1.5mm OD x 5mm L, Slotted

roll, 1.5 OD x 5 mm

1шт.

3

E135028

PIN, SPLIT (COTTER)

PIN, COTTER roll, 2.5 OD x 5 mm

1шт.

4

S301831

PISTON RING

input shaft

1шт.

5

S301832

PINION

GEAR - input

1шт.

6

S301833

ROLLER BEARING,55.562 mm ID x 97.63 mm OD x 24.608 mm

roller, gear end

1шт.

7

S301834

ROLLER BEARING,55 mm ID x 90 mm OD x 23 mm

roller, oil feed flange end

1шт.

8

S301837

BLOCK

SHIM - 2.15 mm, if used

1шт.

8

S301838

BLOCK

SHIM - 2.0 mm, if used

1шт.

8

S301842

BLOCK

SHIM - 1.9 mm, if used

1шт.

8

S301844

BLOCK

SHIM - 1.8 mm, if used

1шт.

8

S301846

BLOCK

SHIM - 1.7 mm, if used

1шт.

8

S301850

BLOCK

SHIM - 1.5 mm, if used

1шт.

8

S301852

BLOCK

SHIM - 1.4 mm, if used

1шт.

8

S301856

BLOCK

SHIM - 1.2 mm, if used

1шт.

8

S301858

BLOCK

SHIM - 1.1 mm, if used

1шт.

8

S301859

BLOCK

SHIM - 1.05 mm, if used

1шт.

8

S301860

BLOCK

SHIM - 1.0 mm, if used

1шт.

8

S301861

BLOCK

SHIM - 0.95 mm, if used

1шт.

8

S301862

BLOCK

SHIM - 0.9 mm, if used

1шт.

8

S301863

BLOCK

SHIM - 0.85 mm, if used

1шт.

10

S301864

FLANGE ASSY

oil feed

1шт.

11

100111A1

SPRING

compression, ball check

1шт.

12

100110A1

BALL

check

1шт.

13

100098A1

BOLT

hex, special, 12 - 1.75 x 60 mm, class 10.9

1шт.

14

185526A1

SCREW

BOLT - hex, special, 12 - 1.75 x 55 mm, class 10.9

1шт.

15

S301866

COVER

oil feed flange

1шт.

16

100096A1

SCREW

hex, special, 10 - 1.5 x 35 mm

12шт.

17

826-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

BOLT - hex, 12 - 1.75 x 70 mm, class 10.9

1шт.

18

100097A1

BOLT

hex, special, 12 - 1.75 x 95 mm, class 10.9

2шт.

19

S301867

NEEDLE BEARING,Needle, 90mm ID x 100mm OD x 16mm W

needle

1шт.

20

S301868

SEAL

SEALRING shaft

1шт.

21

100100A1

CIRCLIP

retaining

1шт.

22

S300786

SHIM,20mm ID x 28mm OD x 1mm Thk

adjusting, 20 x 28 x 1 mm

1шт.

Выбрано товаров: 40
