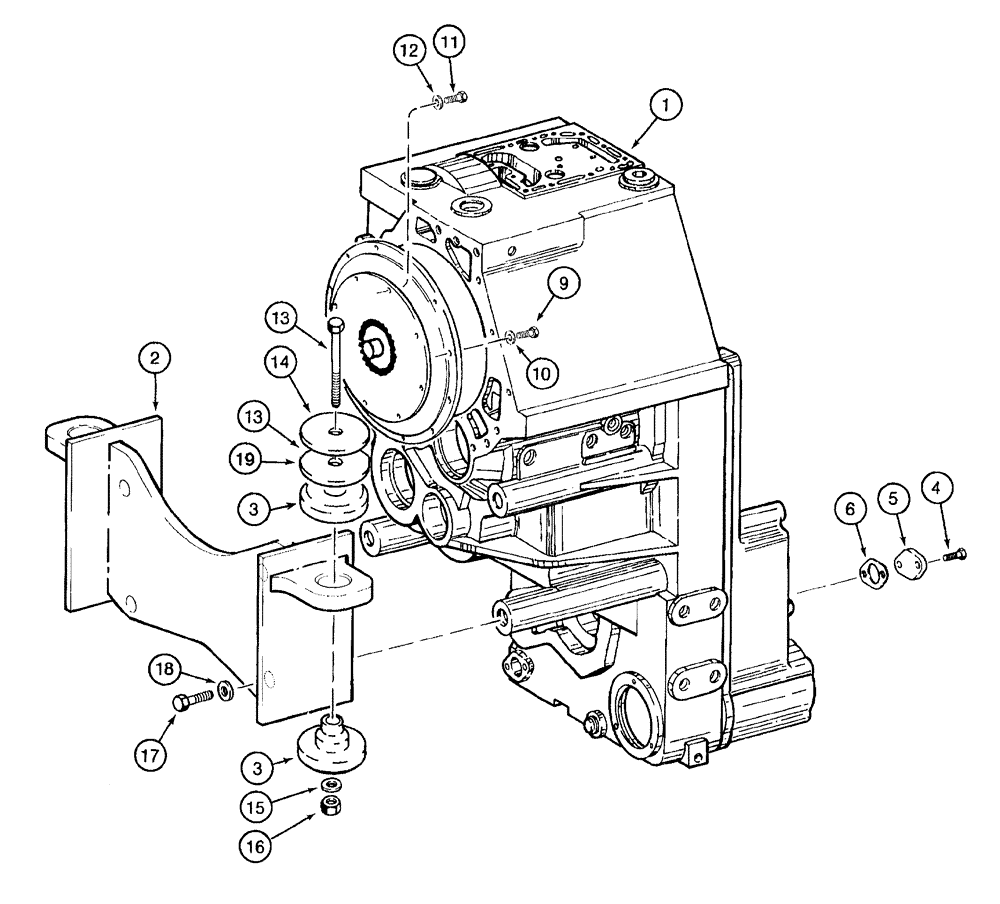

Запчасти Case 921B (6-006) - TRANSMISSION MOUNTING (06) - POWER TRAIN

1

114363A1

TRANSMISSION

ASSEMBLY - new, ZF No. 4646 004 027, prior to P.I.N. JEE0052701, parts list figures 6-8 - 6-36, 7-3, and item 4, figure 6-4 and items 4 - 6 on this figure

1шт.

1

114363A1R

REMAN-TRANSMISSION

921, Model Number 4WG250, Stock Number 4646 004 037

1шт.

1

114363A1C

CORE-TRANSMISSION

Return Number - Use this part number to return for credit when using a remanufactured assembly

1шт.

1

241955A1

TRANSMISSION

ASSEMBLY - new, ZF No. 4646 004 065, P.I.N. JEE0052701 and after, parts list figures 6-8 - 6-36, 7-3 and item 4 on figure 6-4 and items 4 - 6 on this figure

1шт.

1

241955A1R

REMAN-TRANSMISSION

Remanufactured Transmission; 921B, P.I.N. JEE0052701 & After, Model Number 4WG250, Stock Number 4646 004 066

1шт.

1

241955A1C

CORE-TRANSMISSION

Return Number

1шт.

2

228838A1

GRILLE ASSY

BRACKET - transmission mounting, replaces 114362A1 bracket

1шт.

3

114359A1

MOUNT

MOUNT - transmission, two piece

2шт.

4

613-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

BOLT - hex, 8 - 1.25 x 16 mm, included with transmission

2шт.

5

S300508

COVER

PLATE - cover, included with transmission

1шт.

6

237302A1

GASKET

included with transmission, 114363A1 transmission, replaces S300507 gasket

1шт.

6

237302A1

GASKET

included with transmission, 241955A1 transmission

1шт.

7

S301911

SEAL KIT

seal, not shown, includes all seals and flat gaskets for 114363A1 transmission

1шт.

8

S301915

GASKET

gasket, not shown, includes all flat gaskets for 114363A1 transmission

1шт.

9

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

12шт.

10

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

12шт.

11

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

12шт.

12

496-21041

WASHER,13/32" x 13/16" x .089", HDN

12шт.

13

326-1696

BOLT,Hex, 1" - 8 x 6", Gr 8

2шт.

14

L129147

WASHER

flat, special, transmission mounting

2шт.

15

496-31106

WASHER,1 1/16" x 2" x .219", HDN

flat, 1-1/16 x 2 x 7/32 inch, hardened

2шт.

16

429-1016

NUT,1"-8, G8

2шт.

17

828-30080

BOLT,Hex, M30 x 3.5 x 80mm, Class 10.9

hex, 30 - 3.5 x 80 mm, class 10.9

4шт.

18

396-31119

WASHER,1 1/4" x 2 1/4" x 1/4", HDN

flat, 1-1/4 x 2-1/4 x 1/4 inch, hardened

4шт.

19

298512A1

SPACER

transmission mounting

1шт.
