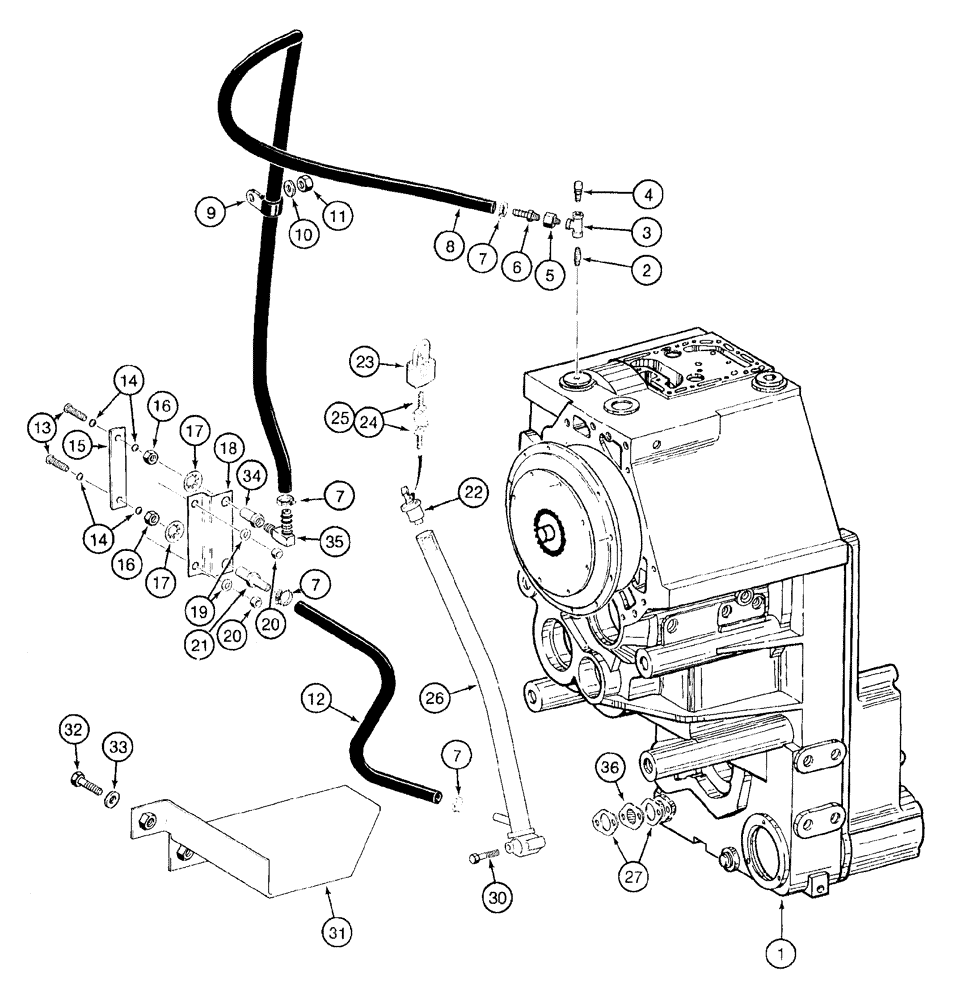

Запчасти Case 921B (6-004) - TRANSMISSION FILL TUBE MOUNTING AND SIGHT GAUGE (06) - POWER TRAIN

1

114363A1

TRANSMISSION

ASSEMBLY - new, ZF No. 4646 004 027, prior to P.I.N. JEE0052701 , parts list figures 6-8 - 6-36, 7-3 and item 4 on this figure and items 4 - 6 on figure 6-6, see figure 6-6 for remanufactured and return part numbers

1шт.

1

114363A1R

REMAN-TRANSMISSION

921, Model Number 4WG250, Stock Number 4646 004 037

1шт.

1

114363A1C

CORE-TRANSMISSION

Return Number

1шт.

1

241955A1

TRANSMISSION

ASSEMBLY - new, ZF No. 4646 004 065, P.I.N. JEE0052701 and after, parts list figures 6-8 - 6-36, 7-3 and item 4 on this figure and items 4 - 6 on figure 6-6

1шт.

1

241955A1R

REMAN-TRANSMISSION

Remanufactured Transmission; 921B, P.I.N. JEE0052701 & After, Model Number 4WG250, Stock Number 4646 004 066

1шт.

1

241955A1C

CORE-TRANSMISSION

Return Number

1шт.

2

221-103

FITTING

NIPPLE - straight, 1/8 PT x 1 inch

1шт.

3

217-1160

TEE,1/8"-27 Female

pipe, 1/8 inch female

1шт.

4

N14704

BREATHER

included with transmission

1шт.

5

217-1010

ADAPTER,1/8" - 27 Male NPTF x 1/2" - 14 Female NPTF

ADAPTER - straight, 1/8 PT x 1/2 inch female PT

1шт.

6

846915

INSERT

ADAPTER - straight, special

1шт.

7

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

4шт.

8

L128676

RADIATOR HOSE,12.70 mm ID x 1150.00, SAE 30R2 Type I

Sight gauge, Upper

1шт.

9

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type, Upper hose

1шт.

10

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch)

1шт.

11

231-1446

NUT,3/8" - 16, Gr 5

1шт.

12

L71252

HOSE,12.7 mm ID x 508.00 mm, SAE 30R2 Type I

508 mm (20 inch) long x 1/2 (13) ID, cut from L56190 bulk hose, see below, sight gauge, lower

1шт.

L116247

GAUGE

ASSEMBLY - sight, transmission

1шт.

13

N13213

BOLT

BOLT - special, no longer available, order L116247 sight gauge assembly

2шт.

14

238-7112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

4шт.

15

NSS

NOT SOLD SEPARAT

GAUGE - sight, order L116247 sight gauge assembly

1шт.

16

829-1412

NUT,M12, Cl 10.9

2шт.

17

131-141

PUSH-ON NUT,.74", Push-on

2шт.

18

L129629

SUPPORT

BRACKET - mounting, sight gauge

1шт.

19

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch)

2шт.

20

231-1446

NUT,3/8" - 16, Gr 5

2шт.

21

L125836

FITTING

ADAPTER - straight, special, lower

1шт.

22

L126498

PLUG

CAP - fill tube

1шт.

23

D93753

PADLOCK

includes keys, if used

1шт.

24

D93751

SET OF 2 KEYS

for Yale padlock only, if used

2шт.

25

R29555

KEY

for Master padlock only, if used

2шт.

26

235052A1

TUBE,31.75 mm OD

fill, transmission, replaces L130003 tube

1шт.

27

237302A1

GASKET

fill tube, replaces S300507 gasket

2шт.

30

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

2шт.

31

L130005

GUARD ASSY.

transmission fill tube

1шт.

32

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

3шт.

33

187563A1

SPACER

13 x 25 x 28 mm

3шт.

34

L129630

ADAPTER

straight, special, upper

1шт.

35

217-290

FITTING,90 Degree Elbow, 1/2" Hose Barb x 3/8" Male NPTF

1шт.

36

E135229

FILTER SCREEN

fill tube

1шт.

L56190

HOSE,0.50" ID x 90.00", SAE 30R2

bulk, 25 (1/2) ID x 2286 mm (90 inch) long

1шт.
