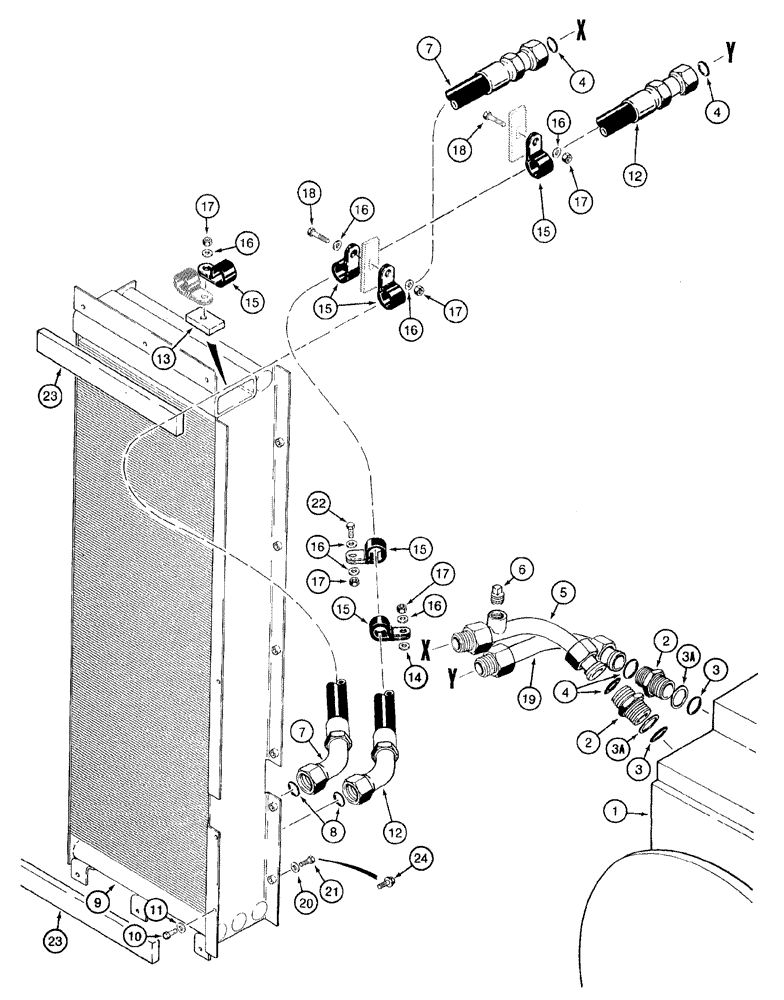

Запчасти Case 921B (6-002) - TRANSMISSION HYDRAULIC CIRCUIT (06) - POWER TRAIN

1

114363A1

TRANSMISSION

ASSEMBLY - new, ZF No. 4646 004 027, prior to P.I.N. JEE0052701 , parts list figures 6-8 - 6-36, 7-3 and item 4 on figure 6-4 and items 4 - 6 on figure 6-6, see figure 6-6 for remanufactured and return part numbers

1шт.

1

114363A1R

REMAN-TRANSMISSION

921, Model Number 4WG250, Stock Number 4646 004 037

1шт.

1

114363A1C

CORE-TRANSMISSION

Return Number

1шт.

1

241955A1

TRANSMISSION

ASSEMBLY - new, ZF No. 4646 004 065, P.I.N. JEE0052701 and after, parts list figures 6-8 - 6-36, 7-3 and item 4 on figure 6-4 and items 4-6 on figure 6-6

1шт.

1

241955A1R

REMAN-TRANSMISSION

Remanufactured Transmission; 921B, P.I.N. JEE0052701 & After, Model Number 4WG250, Stock Number 4646 004 066

1шт.

1

241955A1C

CORE-TRANSMISSION

Return Number

1шт.

2

L128604

ADAPTER

straight, special

2шт.

3

S302119

O-RING,37.7mm ID x 3.5mm Width

adapter

2шт.

3a

S302118

WASHER

RING - backup, adapter

2шт.

4

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

4шт.

5

L128822

TUBE,31.75 mm OD x 175, 147 mm L

transmission supply

1шт.

6

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

Headless

1шт.

7

L129092

HOSE ASSY.

2133 mm (84 inch) long, cooler to transmission supply tube

1шт.

8

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

9

L129695

OIL COOLER

transmission and hydraulic oil, prior to P.I.N. JEE0051001

1шт.

9

225534A1

COOLER, OIL

transmission and hydraulic oil, P.I.N. JEE0051001 and after

1шт.

10

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

9шт.

11

496-41041

WASHER,13/32" x 1 1/8" x .134"

Hardened

9шт.

12

L129093

HOSE ASSY.

2438 mm (96 inch) long, return tube to cooler, prior to P.I.N. JEE0051001

1шт.

12

229573A1

HOSE

2607 mm (102-11/16 inch) long, return tube to cooler, P.I.N. JEE0051001 and after

1шт.

13

L128859

SPACER

clamp

1шт.

14

187563A1

SPACER

13 x 25 x 28 mm

1шт.

15

515-25381

CLAMP,1 1/2", Insul, 1/2" Bolt

P-type

6шт.

16

496-21041

WASHER,13/32" x 13/16" x .089", HDN

7шт.

17

231-1446

NUT,3/8" - 16, Gr 5

5шт.

18

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

2шт.

19

L128806

TUBE,31.75 mm OD x 173, 115 mm L

transmission return

1шт.

20

396-41034

WASHER,8.74mm ID x 25.4mm OD x 2.49mm Thk

flat, 11/32 x 1 x 3/32 inch, hardened

6шт.

21

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

Prior to P.I.N. JEE0051001

6шт.

22

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

Prior to P.I.N. JEE0051001

1шт.

23

226085A1

SEAL

oil cooler, P.I.N. JEE0051001 and after

2шт.

24

460-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

BOLT - hex flange, 5/16 NC x 3/4 inch, grade 8, P.I.N. JEE0051001 and after

6шт.
