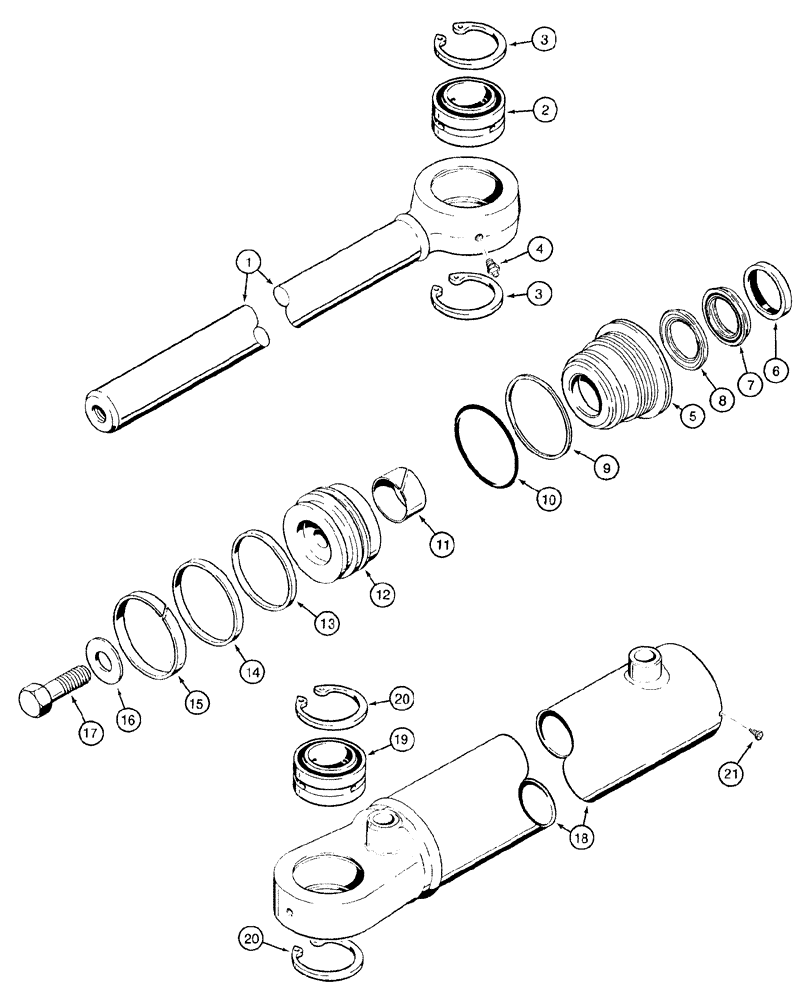

Запчасти Case 921B (5-022) - STEERING CYLINDER (05) - STEERING
№
Артикул
Название
Примечание
Количество
1346169C4
CYLINDER ASSY.,Double Acting, 50.8mm Rod, 516.6mm Stroke
102 (4) ID x 517 mm (20-3/8 inch) stroke
2шт.
1
1346168C3
PISTON ROD
ASSEMBLY - 51 mm (2 inch) diameter
1шт.
2
1346233C1
SPHERICAL BEARING,50.8mm ID x 80.96mm OD x 76.2mm W
self-aligning
1шт.
3
100-21315
SNAP RING,3.156", Int, #315
Bushing
2шт.
4
219-1
LUBE NIPPLE,1/8" - 27 NPTF
1шт.
NSS
NOT SOLD SEPARAT
GLAND ASSEMBLY - cylinder, groove in outside diameter of gland, order components
1шт.
5
1346269C1
CYLINDER END CAP
GLAND
1шт.
6
D95144
WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk
Wiper - piston rod, outer
1шт.
Part of the Seal Kit P/N 1543269C1
1шт.
Part of the Seal Kit P/N 1543269C1
1шт.
7
1543001C1
SEAL
SEAL - rod, NSS, order 1543269C1 seal kit
1шт.
8
1543000C1
SEAL
SEAL - buffer, NSS, order 1543269C1 seal kit
1шт.
9
G109299
BACK-UP RING,94.87mm ID x 97.67mm OD x 1.4mm Thk
Gland O-Ring
1шт.
Part of the Seal Kit P/N 1543269C1
1шт.
10
238-5239
O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro
3-5/8 x 1/8 inch wide
1шт.
Part of the Seal Kit P/N 1543269C1
1шт.
11
G101533
WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk
center
1шт.
Part of the Seal Kit P/N 1543269C1
1шт.
12
1346216C1
PISTON
cylinder
1шт.
13
G100440
RING,Square, 5.28mm Thk x 88.01mm ID
backup
1шт.
Part of the Seal Kit P/N 1543269C1
1шт.
14
G102285
SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk
piston
1шт.
Part of the Seal Kit P/N 1543269C1
1шт.
15
G100448
RING,101.6mm OD, Ext
wear
1шт.
Part of the Seal Kit P/N 1543269C1
1шт.
16
G32351
WASHER
flat, hardened, special
1шт.
17
28-2044
BOLT,Hex, 1-1/4" - 12 x 2-3/4", Gr 8
1шт.
18
1346166C3
HYD CYL SLEEVE
TUBE ASSEMBLY - cylinder
1шт.
19
R55649
BUSHING,50.8mm ID x 80.96mm OD x 44.45mm W
self-aligning
1шт.
20
100-21315
SNAP RING,3.156", Int, #315
Bushing
2шт.
21
276-2446
SELF-TAP SCREW,Hex Hd, #8 x 3/8"
1шт.
Выбрано товаров: 33
