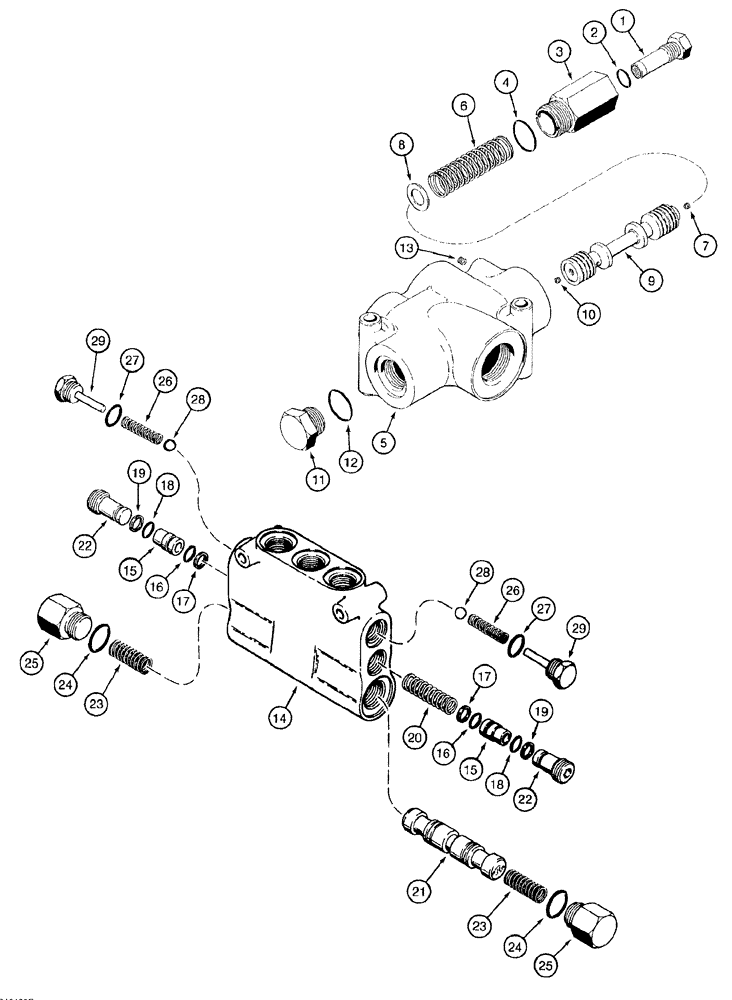

Запчасти Case 921B (5-020) - FLOW CONTROL VALVE AND CUSHION VALVE (05) - STEERING

L128074

VALVE

ASSEMBLY - flow control

1шт.

50-3035T91

CARTRIDGE

VALVE ASSEMBLY - relief

1шт.

1

NSS

NOT SOLD SEPARAT

CARTRIDGE - valve, component parts not serviced separately

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

3

S302016

PLUG

HOUSING - relief cartridge

1шт.

4

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

5

NSS

NOT SOLD SEPARAT

HOUSING - flow control valve

1шт.

6

S302012

SPRING

centering, spool

1шт.

7

S300791

SCREW

set, special, relief cartridge end

1шт.

8

S302014

WASHER

flat, special

1шт.

9

NSS

NOT SOLD SEPARAT

SPOOL - flow control valve

1шт.

10

S302015

SCREW

set, special, plug end

1шт.

11

218-5159

PLUG,1-3/16" - 12 ORB

hex, 1-3/16-12 inch O-ring boss

1шт.

12

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

13

S302019

PORT

ORIFICE - valve

1шт.

100736A1

VALVE

ASSEMBLY - cushion

1шт.

14

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

15

N9165

SHUT-OFF VALVE

POPPET

2шт.

16

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

Inner

2шт.

17

T40181

RING

backup, inner O-ring

2шт.

18

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

Outer

2шт.

19

L30012

RING

backup, outer O-ring

2шт.

20

N9163

SPRING

compression, poppet

1шт.

21

N9166

SPOOL

valve

1шт.

22

N9167

SEAT

valve

2шт.

23

N9169

SPRING

spool

2шт.

24

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

25

N9168

CAP

end

2шт.

26

N9161

BOWL

compression, ball

2шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

28

211-1014

BALL,7/16" Dia

chrome alloy steel, grade 24, replaces 211-212 ball

2шт.

29

N9164

PLUG

valve

2шт.
