(5-018) - AUXILIARY STEERING PUMP AND MOTOR

Запчасти Case 921B (5-018) - AUXILIARY STEERING PUMP AND MOTOR (05) - STEERING

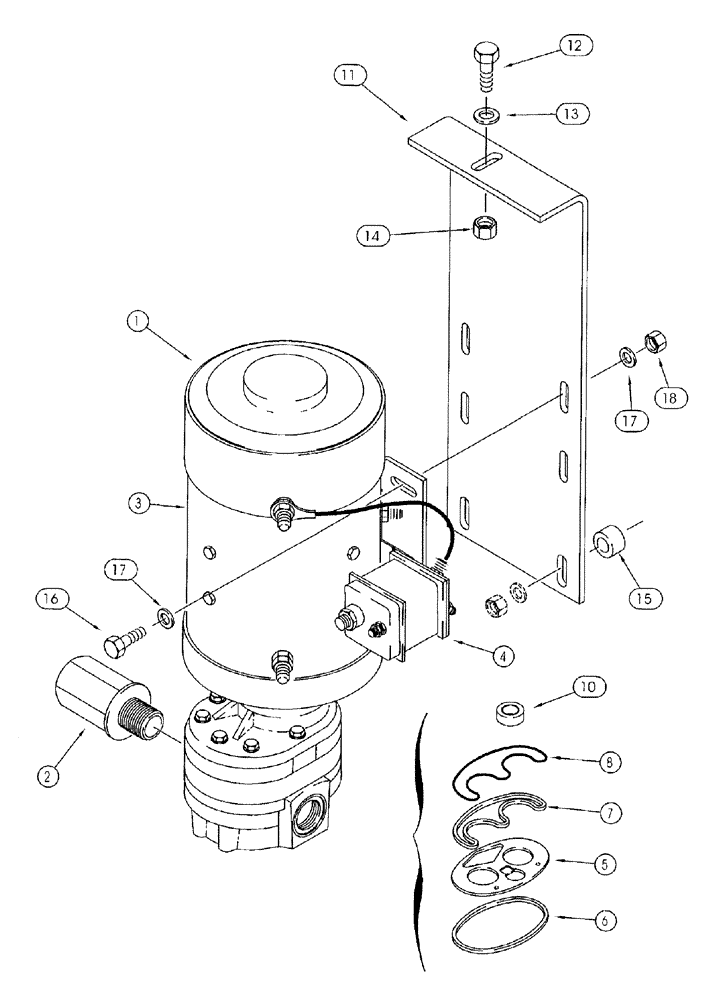

Схема запчастей Case 921B - (5-018) - AUXILIARY STEERING PUMP AND MOTOR (05) - STEERING
17
3
2
10
15
6
1
14
17
7
11
13
12
18
16
4
5
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

107627A1

PUMP, HYDRAULIC

AND MOTOR ASSEMBLY - auxiliary steering

1шт.

249373A1

SET OF PARTS

KIT - auxiliary steering pump replacement, includes instruction sheet

1шт.

2

191992A1

VALVE POPPET

check

1шт.

3

191993A1

MOTOR, ELECTRIC

auxiliary steering

1шт.

4

191994A1

SOLENOID

electrical

1шт.

D149152

PACKAGE, REPAIR

KIT - pump repair

1шт.

5

A45046

WEAR PLATE

2шт.

6

D54169

SEALING RING

ring

2шт.

7

D54168

SEAL

backup

2шт.

8

D54167

SEAL

pre-load

2шт.

10

A23903

OIL SEAL

oil

1шт.

11

128343A1

SUPPORT

BRACKET - mounting, pump and motor assembly

1шт.

12

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

1шт.

13

496-21041

WASHER,13/32" x 13/16" x .089", HDN

1шт.

14

231-1446

NUT,3/8" - 16, Gr 5

1шт.

15

128352A1

SPACER

12.7 (1/2) ID x 17.5 mm (3/4 inch) long, Serial Range: bracket-reservoir

2шт.

16

426-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 8

BOLT - hex, 5/16 NC x 1-1/4 inch, grade 8

4шт.

17

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

8шт.

18

231-1445

NUT,5/16"-18, GB

4шт.
