Запчасти Case 921B (5-016) - AUXILIARY STEERING HYDRAULIC CIRCUIT (05) - STEERING

1

107627A1

PUMP, HYDRAULIC

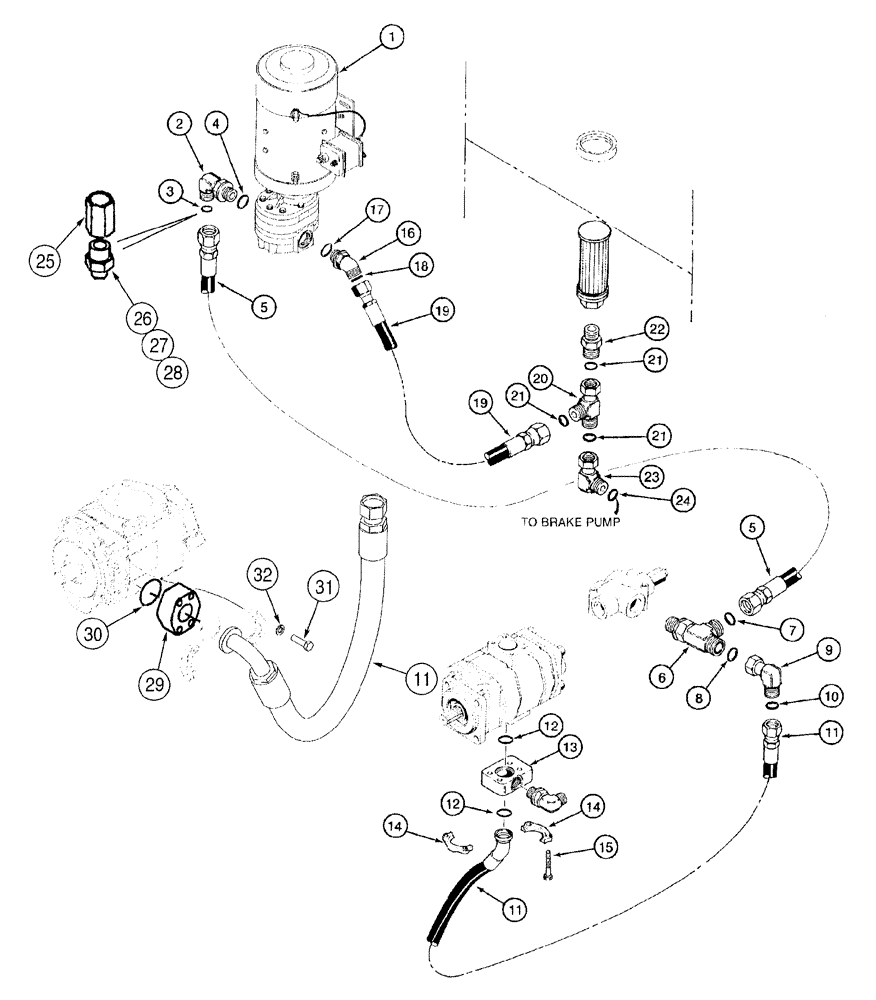

AND MOTOR ASSEMBLY - auxiliary steering, parts list and mounting figure 5-18

1шт.

2

238159A1

ADAPTER

ELBOW - 90 degree, special, replaced 201-355

1шт.

3

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face seal end

1шт.

4

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Boss end

1шт.

5

141161A1

HOSE ASSY.

1630 mm (64-3/16 inch) long, pressure

1шт.

6

L128896

TEE

adjustable, special, at steering priority valve

1шт.

7

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

8

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

9

201-359

ELBOW,90 Degree Elbow, 1-11/16" - 12 Male ORFS x 1-11/16" - 12 Female ORFS

90 degree, 1-11/16-12 inch face seal x swivel face

1шт.

10

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

11

192921A1

HOSE

1150 mm (45-5/16 inch) long, priority valve to hydraulic pump

1шт.

12

238-6225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

Prior to P.I.N. JEE0051800

2шт.

13

L129026

VALVE

check, see figure 5-4 for hydraulic pump, adapter, and quick disconnect and figure 8-58 for continuation of circuit to accumulator and pressure switch, prior to P.I.N. JEE0051800

1шт.

14

A14157

FLANGE

CLAMP - split flange

2шт.

15

426-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

Prior to P.I.N. JEE0051800

4шт.

16

201-371

ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

45 degree, 1-7/16-12 face seal x 1-5/8-12 inch adj O-ring boss

1шт.

17

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face seal end

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss end

1шт.

19

129940A1

HOSE ASSY.

465 mm (18-5/16 inch) long, auxiliary steering pump to brake pump

1шт.

20

201-418

TEE,1-7/16" - 12 ORFS x 1-7/16" - 12 ORFS x 1-7/16" - 12 ORFS

1-7/16-12 inch face branch x face x swivel face, at hydraulic reservoir filter

1шт.

21

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

3шт.

22

127811A1

FITTING

ADAPTER - special, Serial Range: tee-filter

1шт.

23

201-368

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1-7/16" - 12 Female ORFS

90 degree, 1-14 face seal x 1-7/16-12 inch swivel face seal, see figure 7-8 for continuation of circuit to brake pump

1шт.

24

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

25

201-129

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-5/16" - 12 ORB

ADAPTER - straight, 1-3/16-12 face x 1-5/16-12 inch O-ring

1шт.

26

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

27

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

28

191992A1

VALVE POPPET

check, included with item 1 above

1шт.

29

236680A1

VALVE

check, P.I.N. JEE0051800 and after

1шт.

30

238-6222

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

P.I.N. JEE0051800 and after

1шт.

31

814-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

P.I.N. JEE0051800 and after

4шт.

32

892-11012

LOCK WASHER,M12

P.I.N. JEE0051800 and after

4шт.
