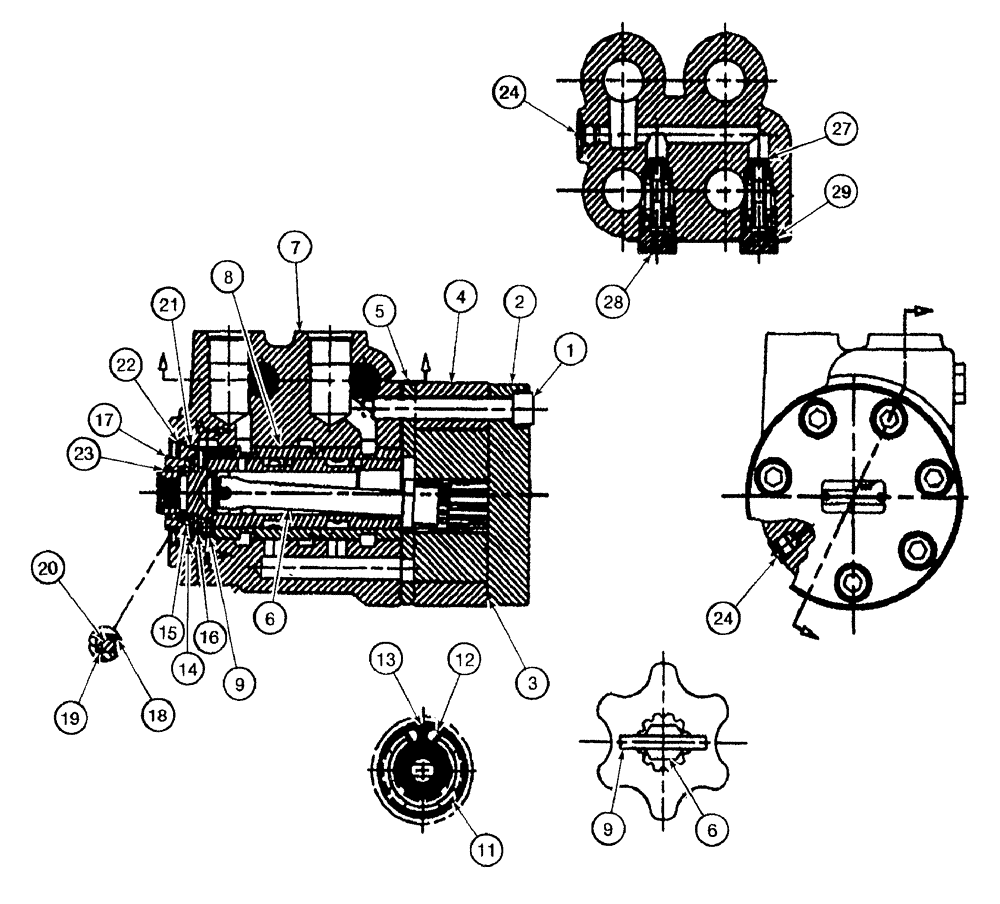

Запчасти Case 921B (5-011[A]) - STEERING CONTROL VALVE ASSEMBLY (05) - STEERING

279428A1

VALVE

ASSEMBLY - steering control, 253-3057-002 stamped on name plate, see figure 5-2 for mounting, if used

1шт.

1

313837A1

12 PT SCREW

BOLT - 12 point, special

7шт.

2

50-2710T1

CAP

end, steering valve

1шт.

3

50-2708T1

O-RING

cover and plate

3шт.

Part of the Seal Kit P/N 50-3588T1

1шт.

4

279429A1

GEROTOR

GEAR - set

1шт.

5

50-2707T1

WEAR PLATE

spacer

1шт.

6

50-2706T1

SHAFT

drive

1шт.

7

NSS

NOT SOLD SEPARAT

HOUSING - control valve assembly

1шт.

8

NSS

NOT SOLD SEPARAT

SLEEVE - control valve assembly

1шт.

9

S301999

PIN

sleeve

1шт.

50-3587T1

PACKAGE,SERVICE

KIT - centering spring

1шт.

11

NSS

NOT SOLD SEPARAT

SPRING - centering

1шт.

12

211-1010

BALL,5/16" OD

chrome alloy steel, 5/16 inch, grade 24

2шт.

13

NSS

NOT SOLD SEPARAT

KEY - centering spring

1шт.

14

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

Roller

1шт.

15

D82804

RACE

thrust, bearing

1шт.

16

50-3606T1

RACE

thrust, bearing

1шт.

17

50-3604T1

SEAL RETAINER

spool

1шт.

18

N13313

SEAL,25.1mm ID x 26.7mm OD x 2.6mm Thk

teflon

1шт.

Part of the Seal Kit P/N 50-3588T1

1шт.

19

50-2703T1

BACK-UP RING

RING - backup

1шт.

Part of the Seal Kit P/N 50-3588T1

1шт.

20

238-5121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

1шт.

Part of the Seal Kit P/N 50-3588T1

1шт.

21

50-2705T1

O-RING

retainer

1шт.

22

103-21237

SNAP RING,2.375", Int, #237

1шт.

23

18-137

OIL SEAL

input

1шт.

Part of the Seal Kit P/N 50-3588T1

1шт.

24

NSS

NOT SOLD SEPARAT

PLUG - valve

1шт.

27

313835A1

VALVE

relief

2шт.

28

313836A1

PLUG

relief valve

2шт.

29

313834A1

O-RING

SEAL - relief valve

2шт.

50-3588T1

SEAL KIT

seal, control valve, Includes: items 3, 18, 19, 20, 23

1шт.
