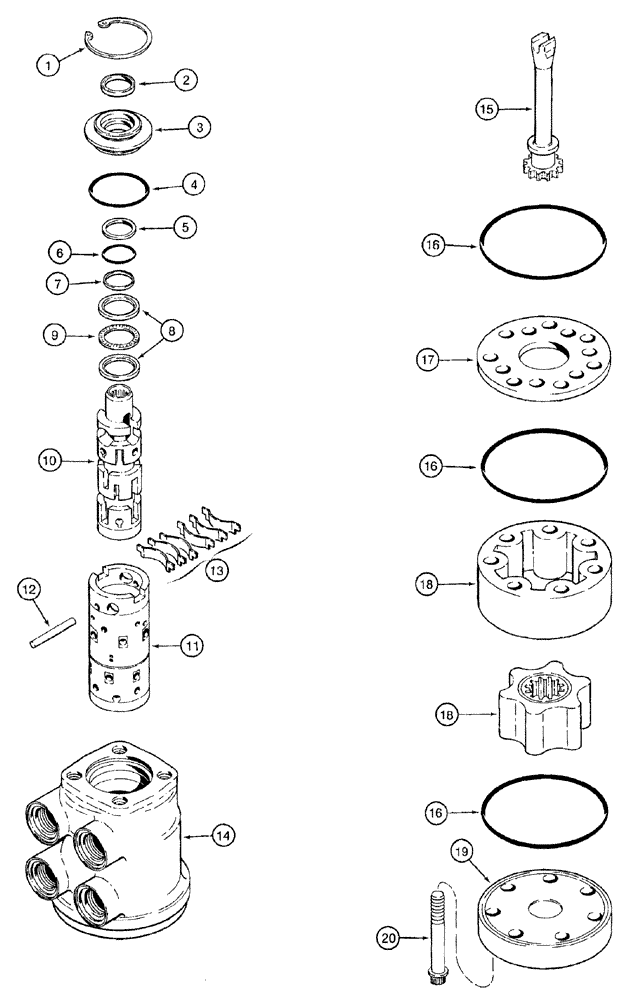

Запчасти Case 921B (5-010) - STEERING CONTROL VALVE ASSEMBLY (05) - STEERING

L128073

VALVE

ASSEMBLY - steering control, 253-3011-002 stamped on name plate, see figure 5-2 for mounting, if used

1шт.

1

D77388

SNAP RING,2.375", Int, #237

Ring, Snap, , bushing 2.375", Int, #237

1шт.

2

697494R91

OIL SEAL

1 inch ID

1шт.

3

50-2701T1

RETAINER

spool

1шт.

4

50-2705T1

O-RING

retainer

1шт.

5

50-2703T1

BACK-UP RING

RING - backup

1шт.

6

238-5121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

1шт.

7

N13313

SEAL,25.1mm ID x 26.7mm OD x 2.6mm Thk

teflon, inner

1шт.

8

D82804

RACE

thrust, bearing

2шт.

9

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

Roller

1шт.

S302006

TESTER

CONTROL ASSEMBLY - valve

1шт.

10

NSS

NOT SOLD SEPARAT

SPOOL - control assembly

1шт.

11

NSS

NOT SOLD SEPARAT

SLEEVE - control assembly

1шт.

12

S301999

PIN

sleeve

1шт.

13

N14233

KIT

spring, set of six, spool

1шт.

14

NSS

NOT SOLD SEPARAT

BODY - control assembly

1шт.

15

50-2706T1

SHAFT

drive, valve

1шт.

16

50-2708T1

O-RING

cover and plate

3шт.

17

50-2707T1

WEAR PLATE

spacer

1шт.

18

50-2990T91

ROTOR ASSY.

GEROTOR - set, matched

1шт.

19

50-271OT1

CAP - end, steering valve

1шт.

20

S302004

BOLT

12 point, special

7шт.
