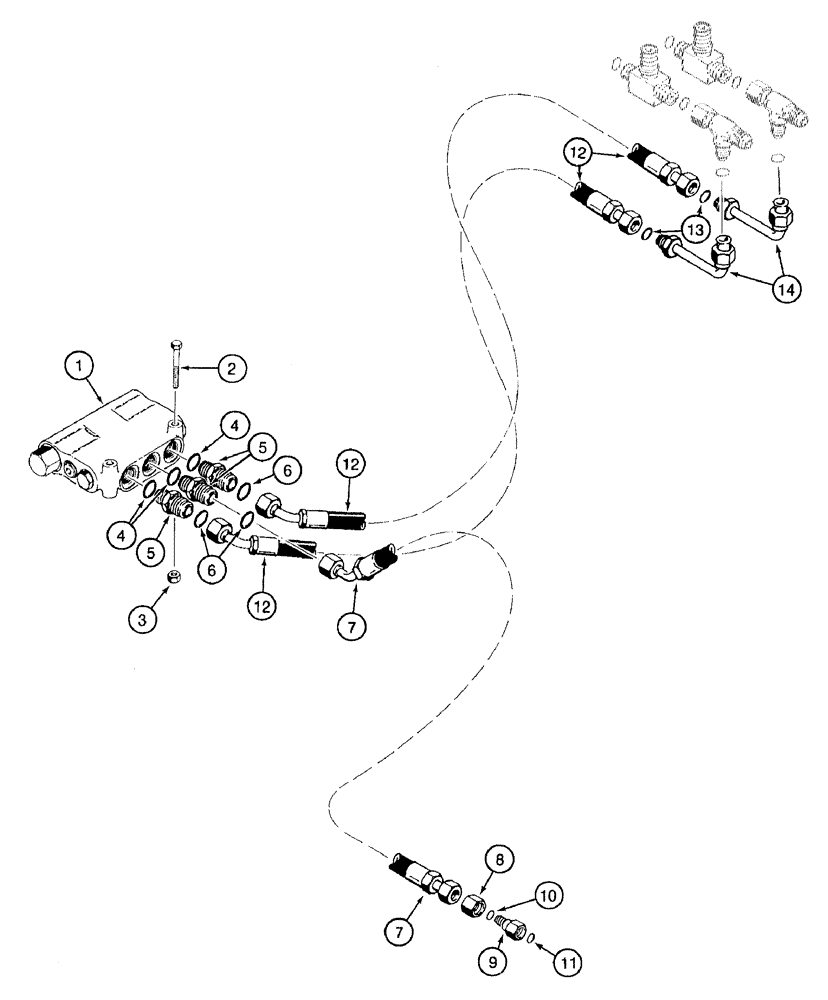

Запчасти Case 921B (5-008) - STEERING HYD CIRCUIT, CUSHION VALVE TO TEES TO STEERING PRESSURE & RETURN LINES & STEERING CYLINDER (05) - STEERING

1

100736A1

VALVE

ASSEMBLY - cushion, steering, parts list figure 5-20

1шт.

2

426-648

BOLT,Hex, 3/8" - 16 x 3", Gr 8

2шт.

3

231-1446

NUT,3/8" - 16, Gr 5

2шт.

4

201-112

HYD CONNECTOR,13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

3шт.

5

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face end

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss end

1шт.

7

100777A1

HOSE ASSY.

470 mm (18-1/2 inch) long, cushion valve to steering pressure and return, see figure 5-6 for continuation of circuit

1шт.

8

203-904

TUBE NUT,1 3/16"-12 ORFS

Hex, tube

1шт.

9

201-143

REDUCER,11/16"-16 Male x 1 3/16"-16 Fem, ORFS

ADAPTER - reducing, 13/16-16 face seal x 1-3/16-12 inch female face

1шт.

10

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Hose end

1шт.

11

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Tee end

1шт.

12

100820A1

HOSE ASSY.

900 mm (35-7/16 inch) long, cushion valve to cylinders, see figure 5-12 for continuation of circuit

2шт.

13

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

14

L130063

PIPE ASSY.,12.7 mm OD x 92, 82 mm L

TUBE - hose from cushion valve to tees to cylinders

2шт.
