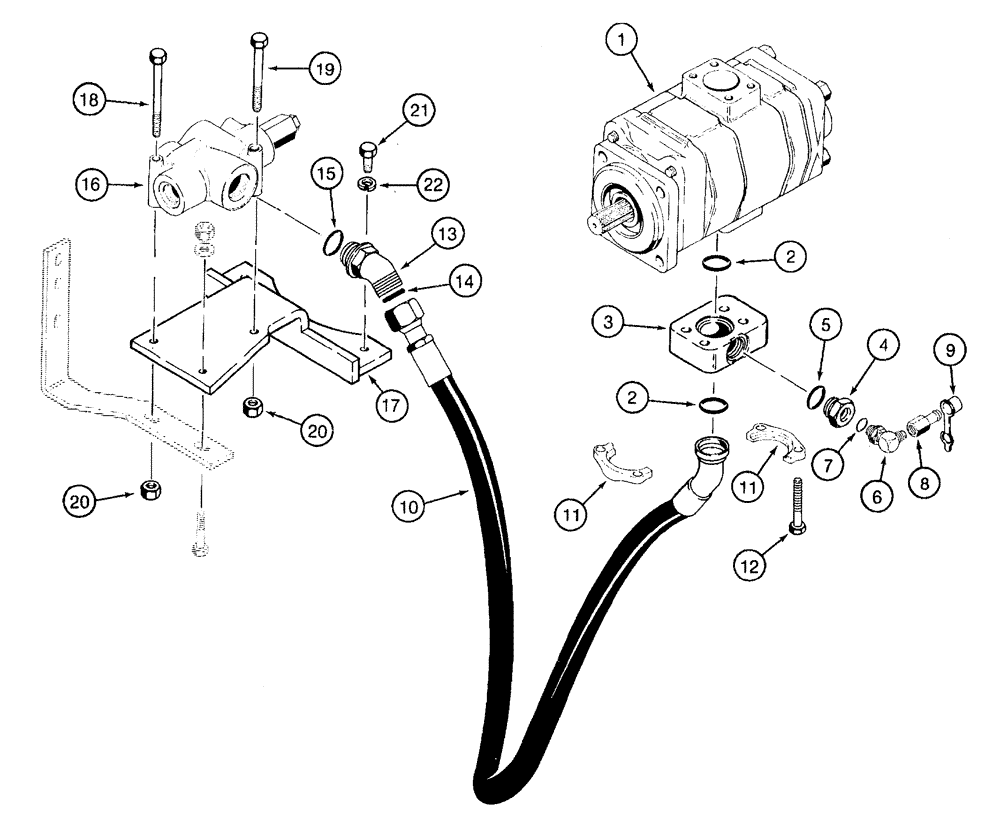

Запчасти Case 921B (5-004) - STEERING HYD CIRCUIT, PRESSURE & RETURN LINES, PUMP TO FLOW CONTROL VALVE PRIOR TO P.I.N. JEE0051800 (05) - STEERING

1

L127716

PUMP, HYDRAULIC

ASSEMBLY - equipment and steering, parts list figure 8-6, see figure 8-8 for mounting

1шт.

2

238-6225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

2шт.

3

L128347

ADAPTER

, Serial Range: hose-pump

1шт.

4

A176161

ADAPTER

straight, special

1шт.

5

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

6

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree, 9/16-18 inch flare x adj O-ring boss

1шт.

8

101792A1

COUPLING

quick disconnect

1шт.

9

H434163

DUST CAP

Not included with coupling

1шт.

10

L129046

HOSE ASSY.

1300 mm (51-3/16 inch) long, pump to flow control valve

1шт.

11

A14157

FLANGE

CLAMP - split flange

2шт.

12

426-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

4шт.

13

201-354

ELBOW,45 Degree Elbow, 1-11/16" - 12 Male ORFS x 1-5/8" - 12 Male ORB

45 degree, 1-11/16-12 face seal x 1 -5/8-12 inch adj O-ring boss

1шт.

14

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

Face end

1шт.

15

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

Boss end

1шт.

16

L128074

VALVE

ASSEMBLY - flow control, parts list figure 5-20, additional mounting brackets, figure 5-6

1шт.

17

L129296

SUPPORT

BRACKET - mounting, flow control valve

1шт.

18

426-876

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 8

BOLT - hex, 1/2 NC x 4-3/4 inch, grade 8

1шт.

19

426-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 8

1шт.

20

231-1448

NUT,1/2"-13, GB

hex, self-locking, NC

2шт.

21

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

2шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
