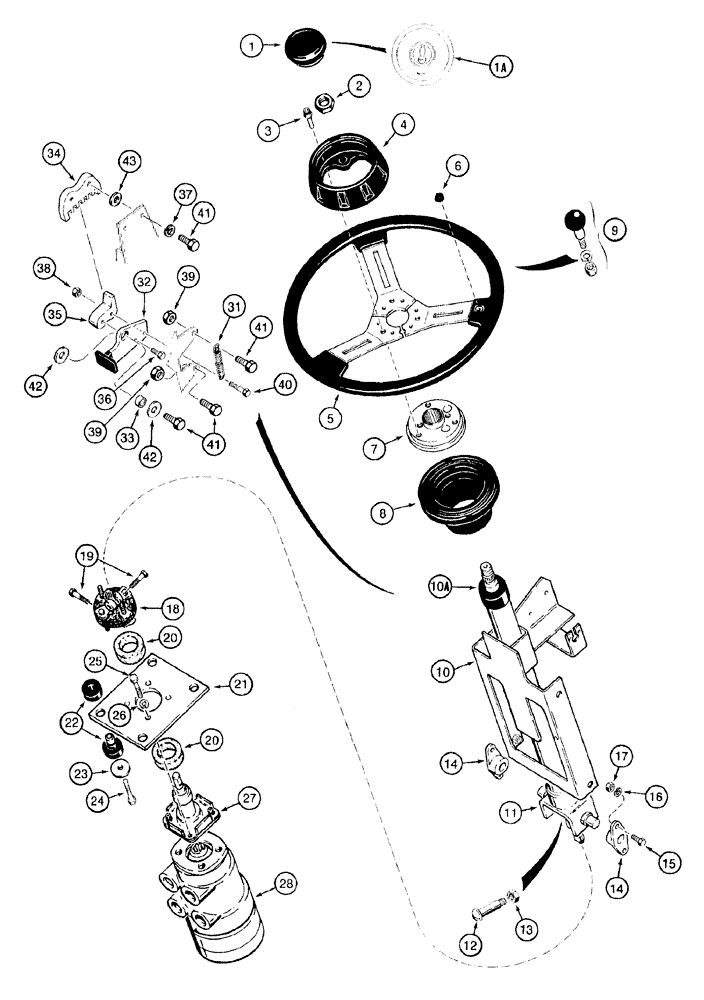

Запчасти Case 921B (5-002) - STEERING WHEEL AND COLUMN (INCLUDES TILT LATCH) (05) - STEERING

1

195277A1

PLUG

CAP ASSEMBLY - center, steering wheel

1шт.

1a

A180055

CAP ASSY.

INSERT - Case Globe and Eagle

1шт.

2

F19646

LOCK NUT,13/16"-20, Thin

lock, steering wheel retaining

1шт.

L128095

WHEEL (STEERING)

ASSEMBLY - steering

1шт.

3

S301434

SCREW

special

3шт.

4

S301399

CAP

steering wheel

1шт.

5

D147465

STEERING WHEEL

not serviced separately, for service order D148204 steering wheel, shown below, or L128095 steering wheel assembly

1шт.

6

S301435

PLUG

steering wheel, remove to use spinner knob

1шт.

7

S301401

HUB

steering wheel, no longer available, order L128095 steering wheel assembly

1шт.

8

S301400

BOOT

steering wheel

1шт.

9

97400C1

HANDLE

KNOB - spinner, steering wheel, if used

1шт.

195273A1

STEERING COLUMN

ASSSEMBLY

1шт.

10

NSS

NOT SOLD SEPARAT

COLUMN - steering, order 195273A1

1шт.

10a

A49647

CAP

COVER - column, no longer available, order 195273A1 steering column

1шт.

11

A63689

JOINT

ASSEMBLY - universal, steering column, replaces 194040A1 joint assembly

1шт.

12

L128176

STEP BOLT

shoulder, special

1шт.

13

L128177

LOCK NUT

self-locking, special

1шт.

14

A77310

SUPPORT,0.754" ID x 1.375" OD x 0.81"

BEARING

2шт.

15

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

4шт.

16

492-11038

LOCK WASHER,3/8"

4шт.

17

425-106

NUT,3/8"-16, Cl 5

4шт.

18

L100096

ISOLATOR

isolator

1шт.

19

414-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

2шт.

20

A145915

SEAL,41.148mm ID x 57.15mm OD x 12.7mm Thk

floor plate and steering control valve

2шт.

21

1344479C1

LARGE PLATE

PLATE, LARGE floor, steering alignment

1шт.

22

A141515

ISOLATOR

two piece, includes both halves

4шт.

23

495-81150

WASHER,0.44" ID x 1.25" OD x 0.07" Thk

flat, 7/1 x 1-1/4 x 1/16 inch

4шт.

24

326-632

BOLT,Hex, 3/8" - 16 x 2", Gr 8

Not shown

4шт.

25

426-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

Used with L128073 steering control valve

4шт.

25

828-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

Used with 279428A1 Steering Control Valve

4шт.

26

492-11038

LOCK WASHER,3/8"

Used with L128073 steering control valve

4шт.

26

892-11010

LOCK WASHER,M10

Used with 279428A1 Steering control valve

4шт.

27

S301818

CAP

COLUMN ASSEMBLY - lower, individual components are not serviced separately

1шт.

28

L128073

VALVE

ASSEMBLY - steering control, used on models with cushion valve, see figure 5-8, parts list figure 5-10

1шт.

28

279428A1

VALVE

ASSEMBLY - steering control, used on models without cushion valve, parts list figure 5-10

1шт.

31

A163012

SPRING

tilt latch

1шт.

32

1990517C1

LEVER

tilt latch

1шт.

33

1990519C1

SPACER

BUSHING - lever

1шт.

34

1969906C3

LATCH ASSY.

RACK - tilt latch

1шт.

35

1969903C4

LATCH ASSY.

tooth

1шт.

36

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

1шт.

37

492-11038

LOCK WASHER,3/8"

2шт.

38

425-144

JAM NUT,Jam, 1/4"-20, G5

1шт.

39

425-146

JAM NUT,3/8" - 16, Gr 5

2шт.

40

426-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 8

BOLT - hex, 1/4 NC x 1-1/2 inch, grade 8

1шт.

41

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

5шт.

42

496-81024

WASHER,0.41" ID x 1.25" OD x 0.07" Thk

flat, 13/32 x 1-1/4 x 1/16 inch, hardened

2шт.

43

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

D148204

WHEEL (STEERING)

also includes spacer ring, steering wheel hub, (3) socket head capscrews, and (3) lockwashers, 16 inch, 3 spoke, also includes spacer ring, steering wheel hub, (3) screws, and (3) lockwashers, 16 inch, 3 spoke, not shown

1шт.
