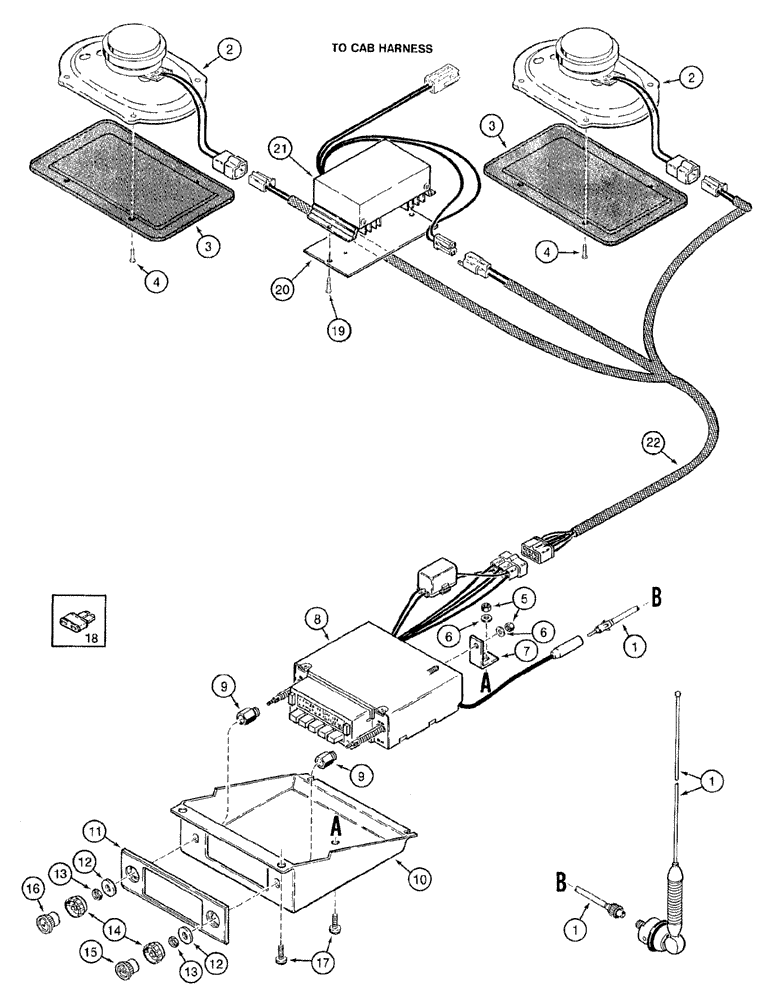

Запчасти Case 921B (4-060) - RADIO AND MOUNTING PARTS (04) - ELECTRICAL SYSTEMS

L36340

KIT

radio installation, includes instructions

1шт.

1

1983571C1

ANTENNA

AM/FM radio

1шт.

2

245343C3

SPEAKER

radio, 5 x 7 inch, 4 ohm

2шт.

3

245806C1

PANEL

speaker grille

2шт.

4

142-104

SCREW,Oval HD, #10 - 24 x 1"

8шт.

5

425-104

NUT,1/4"-20, Cl 5

2шт.

6

495-21031

WASHER,1/4"

flat, 5/16 x 3/4 x 1/16 inch

2шт.

7

1977478C1

SUPPORT

BRACKET - support, radio

1шт.

8

245160C91

RADIO

AM-FM stereo, hi-power, no longer available, order ZAE1ETX from Ship Direct

1шт.

9

84240C1

SPACER

3/8 x 5/8 x 3/4 inch

2шт.

10

1339570C3

COVER

radio

1шт.

11

84103C1

PANEL

radio trim

1шт.

12

142920C1

WASHER

flat, 9.72 x 15.00 x 0.60 mm

2шт.

13

142921C1

NUT

hex, special

2шт.

14

385532C1

KNOB

control, tone and balance

2шт.

15

111382C1

KNOB

control, tuning

1шт.

16

111381C1

KNOB

control, volume

1шт.

17

1276117C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 3/4"

pan Phillips, special, 1/4 NC x 3/4 inch

5шт.

18

A149798

FUSE

tan, 5 ampere

1шт.

19

264-20410

SELF-TAP SCREW,Slotted Pan Hd, #8 x 5/8"

self-tapping, pan head slotted, No. 8 NC x 5/8 inch

3шт.

20

1983657C1

LARGE PLATE

PLATE, LARGE mounting, converter

1шт.

21

1983628C1

TRANSFORMER

CONVERTER - 24 volt to 12 volt DC

1шт.

22

A187669

HARNESS

radio

1шт.
