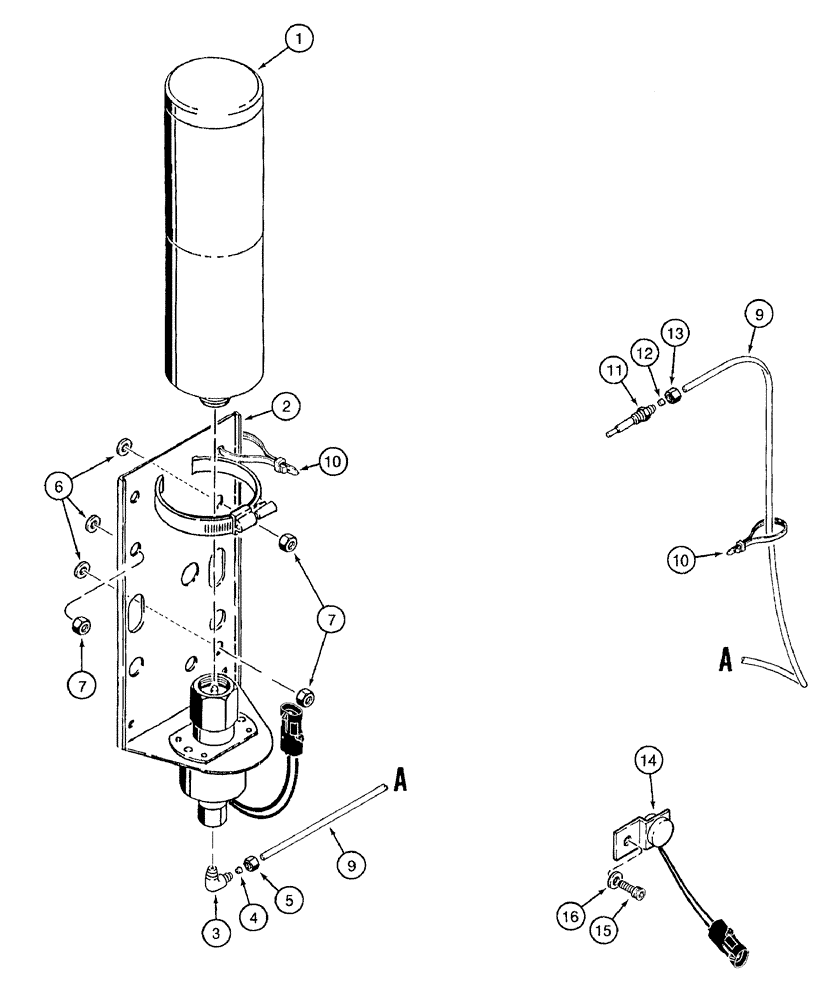

Запчасти Case 921B (4-058) - COLD WEATHER STARTING SYSTEM (04) - ELECTRICAL SYSTEMS

1

A171940

CYLINDER

starting fluid, no longer available, order 3833593A from Ship Direct

1шт.

L126198

VALVE

ASSEMBLY - solenoid, connects to rear harness, see figure 4-44 for harness

1шт.

2

NSS

NOT SOLD SEPARAT

VALVE - component parts not serviced separately

1шт.

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

1/8 tube OD, Valve outlet

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

4

222-650

SLEEVE,1/8" Tube, Comp

Tapered

1шт.

5

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

hex, 1/8" tube OD

1шт.

6

S95569

WASHER

flat, special, 1/2 inch

3шт.

7

231-1406

LOCK NUT,3/8"-16, GB

3шт.

9

L129752

TUBE,3.17 mm OD x 3352 mm L

nylon, 3352 mm (132 inch) long

1шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

1шт.

A172900

NOZZLE CAP

ASSEMBLY - atomizer

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - nozzle

1шт.

12

222-650

SLEEVE,1/8" Tube, Comp

Tapered

1шт.

13

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

hex, 1/8" tube OD

1шт.

14

L126191

THERMOSTATIC SWITCH

THERMOCOUPLE - circuit breaking, includes lead wires, connects to engine harness on right-hand side of engine, see figure 4-20 for harness

1шт.

15

864-10016

HEX SOC SCREW,M10 x 16mm, Cl 8.8

1шт.

16

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.
