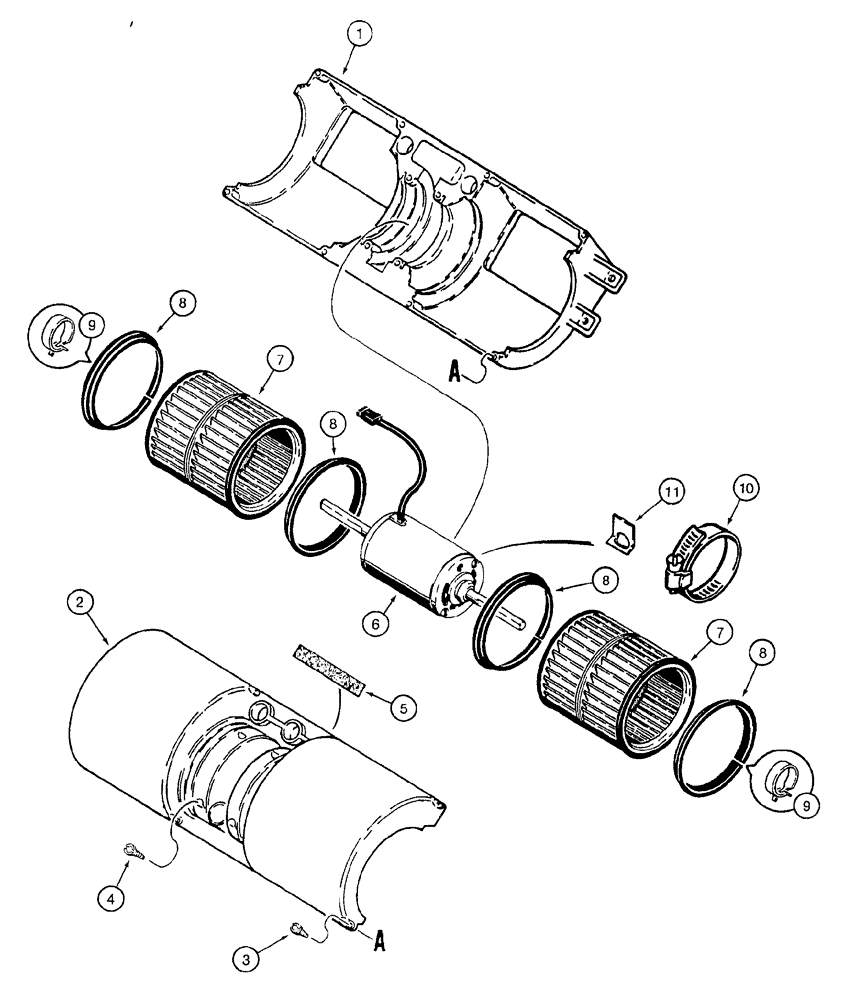

Запчасти Case 921B (4-056) - CAB BLOWER (04) - ELECTRICAL SYSTEMS

1

F64740

HOUSING

fan, lower, lower

1шт.

2

F64741

HOUSING

fan, upper, upper

1шт.

3

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

8шт.

4

187-1928

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

self-tapping, pan head Phillips, No. 10-16 x 1 inch

4шт.

5

REF

INSTRUCTION

SEAL - 102 mm (4 inch) long, cut from F64119 bulk, see below, foam, upper fan housing

2шт.

6

1546448C1

MOTOR, ELECTRIC

blower, 24 volt

1шт.

6

370512A1R

REMAN-ELECTRIC MOTOR

921B, Reman For New P/N 1546448C1

1шт.

6

370512A1C

CORE-ELECTRIC MOTOR

Return Number

1шт.

7

F64935

BLOWER,Fan

FAN - blower

2шт.

8

F64739

RING

plastic, fan retaining

4шт.

9

F64936

CLAMP

steel spring, fan retaining

2шт.

10

214-1440

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

adj, 2-1/16 - 3 inch dia, motor retaining

1шт.

11

R51563

CLIP,ELECTRICAL

motor retaining clamp

1шт.

F64119X

GASKET

STRIP - foam, bulk, 1.5 (1/16) x 13 (1/2) x 30480 mm (1200 inch)

1шт.
