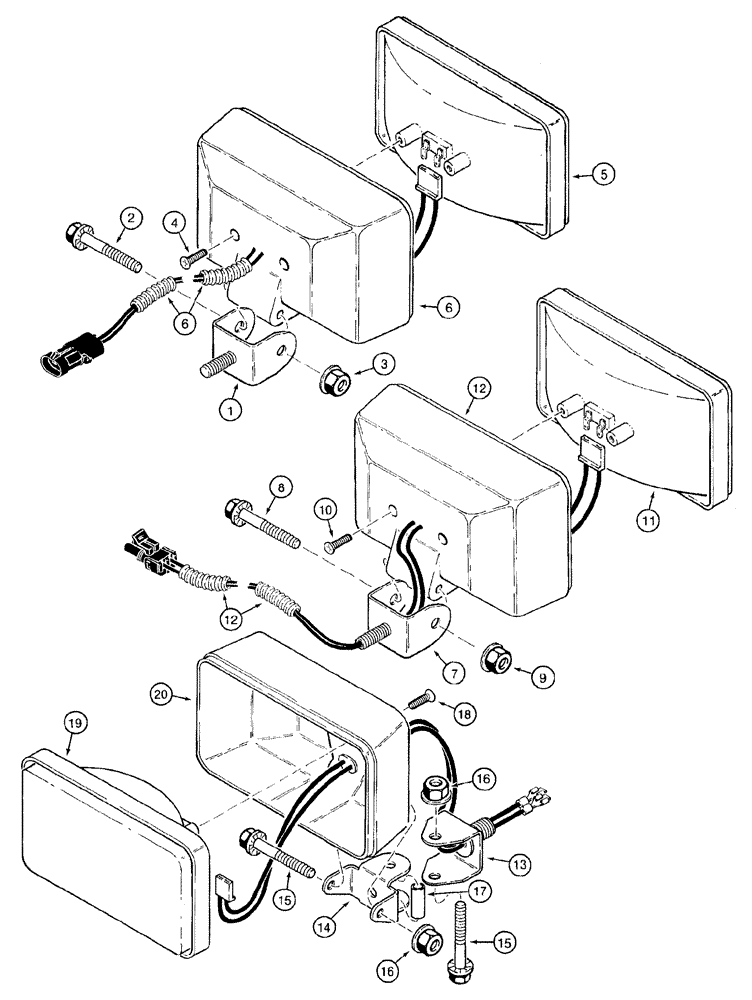

Запчасти Case 921B (4-046) - LAMPS, FRONT AND REAR (04) - ELECTRICAL SYSTEMS

A187519

LIGHT ASSY.,24V, 70W, Clear

Drive, See figure 4-42 for mounting, front lamp

2шт.

1

N8347

SUPPORT

BRACKET - lamp, replaces A187913 bracket, front lamp

1шт.

2

121-232

SERRATED BOLT,Hex, 5/16" - 18 x 2", Gr 5

Front lamp

1шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

Front lamp

1шт.

4

226668A1

SCREW,M3.5 x 45mm

special, front lamp

2шт.

5

103654A1

HEADLIGHT,Halogen, 24V, 60W

BULB - sealed beam, front lamp

1шт.

6

NSS

NOT SOLD SEPARAT

HOUSING - lamp, front lamp

1шт.

A187520

LIGHT ASSY.,24V, 70W, Clear

Flood, see page 4-45 for mounting, not serviced separately, order 229488A1 kit, front and rear flood lamps

4шт.

Part of the Flood Lamp Kit P/N 229488A1

1шт.

7

N8347

SUPPORT

BRACKET - lamp, replaces A187913 bracket, front and rear flood lamps

1шт.

8

121-232

SERRATED BOLT,Hex, 5/16" - 18 x 2", Gr 5

Front and rear flood lamps

1шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

Front and rear flood lamps

1шт.

10

226668A1

SCREW,M3.5 x 45mm

special, front and rear flood lamps

2шт.

11

103653A1

HEADLIGHT,24V, 60W

BULB - sealed beam, front and rear flood lamps

1шт.

12

NSS

NOT SOLD SEPARAT

HOUSING - lamp, front and rear flood lamps

1шт.

12a

56698R1

WIRE CONNECTOR

butt splice, not shown, front and rear flood lamps

1шт.

A187541

LIGHT ASSY.,Halogen, 24V, 70W, Clear

LAMP ASSEMBLY - flood, cab or canopy, see pages 4-7 or 4-13 for mounting

2шт.

13

N8347

SUPPORT

BRACKET - lamp, includes stud, replaces A52216 bracket, cab or canopy flood lamps

1шт.

14

A52215

SUPPORT

BRACKET - mounting, lamp, cab or canopy flood lamps

1шт.

15

121-232

SERRATED BOLT,Hex, 5/16" - 18 x 2", Gr 5

Cab or canopy flood lamps

2шт.

16

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

Cab or canopy flood lamps

2шт.

17

65881H

SPACER,1/4" Pipe x 1 1/4"

tubular, 1/4 x 1-1/4 inch, replaces A52219 spacer, cab or canopy flood lamps

1шт.

18

226668A1

SCREW,M3.5 x 45mm

special, cab or canopy flood lamps

2шт.

19

103653A1

HEADLIGHT,24V, 60W

BULB - sealed beam, cab or canopy flood lamps

1шт.

20

NSS

NOT SOLD SEPARAT

HOUSING - lamp, cab or canopy flood lamps

1шт.

229488A1

HEADLIGHT,24V

KIT - flood lamp, 24 volt, rectangular lamp, 2 wire, includes A187520 lamp assembly, 56698R1 connector and instruction sheet

1шт.
