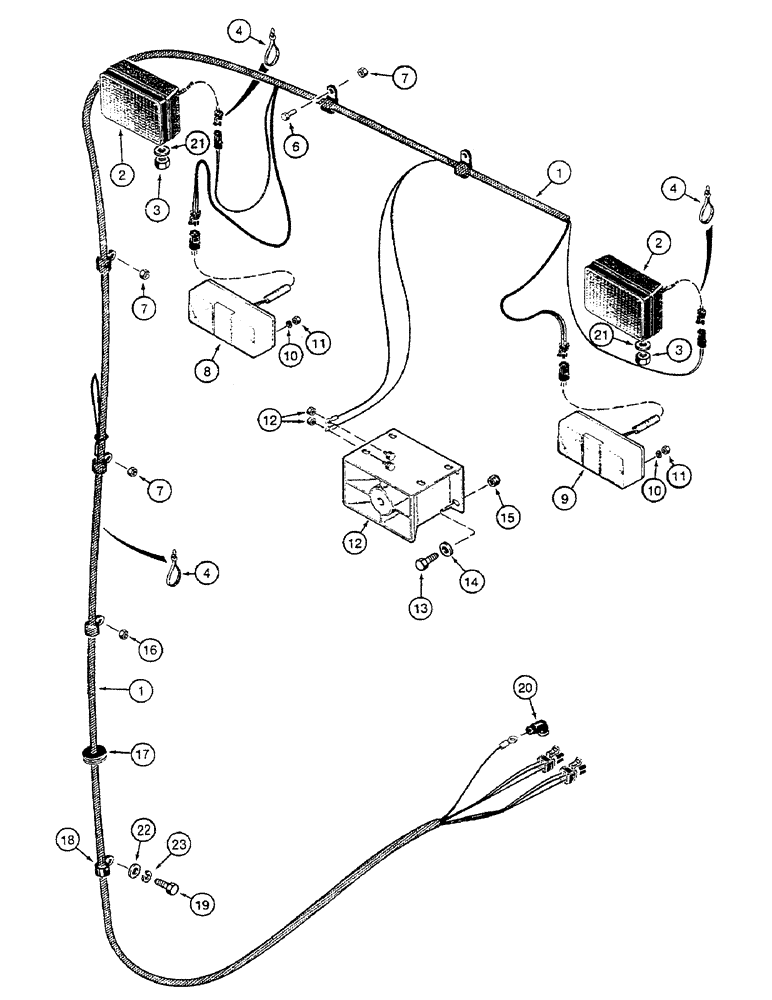

Запчасти Case 921B (4-044) - REAR LAMP AND BACKUP ALARM MOUNTING (04) - ELECTRICAL SYSTEMS

1

L129113

HARNESS

rear, prior to P.I.N. JEE0051001

1шт.

1

230378A1

CABLE

HARNESS - rear, P.I.N. JEE0051001 and after (arrangement of clamps on harness differs slightly from that illustrated)

1шт.

2

A187520

LIGHT ASSY.,24V, 70W, Clear

Flood, parts list figure 4-46, not serviced separately, order 299488A1 kit, shown on figure 4-46

2шт.

3

131-1402

THIN NUT,1/2"-13, GB, Thin

2шт.

4

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

1шт.

6

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

7

231-1446

NUT,3/8" - 16, Gr 5

5шт.

8

A187962

LAMP, TAIL

LIGHT, TAIL LAMP ASSEMBLY - stop and tail, left-hand, parts list figure 4-48

1шт.

9

A187961

LAMP, TAIL

LIGHT, TAIL LAMP ASSEMBLY - stop and tail, right-hand, parts list figure 4-48

1шт.

10

892-11005

LOCK WASHER,M5

8шт.

11

825-1405

NUT,M5, Cl 8

8шт.

12

D121972

ALARM

backup, electric, rectangular type

1шт.

13

426-416

BOLT,Hex, 1/4" - 20 x 1", Gr 8

4шт.

14

495-21031

WASHER,1/4"

flat, 5/16 x 3/4 x 1/16 inch

4шт.

15

231-1444

NUT,1/4"-20, GB

4шт.

16

231-1446

NUT,3/8" - 16, Gr 5

1шт.

17

D55218

SEAL, GLASS,76mm L

TRIM - edge, 76 mm (3 inch) long, cut from F42827 bulk trim

1шт.

18

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type

1шт.

19

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

20

L126713

BOOT

plastic, harness at floor of operators compartment

1шт.

21

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

22

496-41041

WASHER,13/32" x 1 1/8" x .134"

Hardened

1шт.

23

496-21041

WASHER,13/32" x 13/16" x .089", HDN

P.I.N JEE0051001 and after

1шт.

F42827

TRIM,2946.4mm L

TRIM - edge, bulk, 2946 mm (116 inch) long

1шт.
