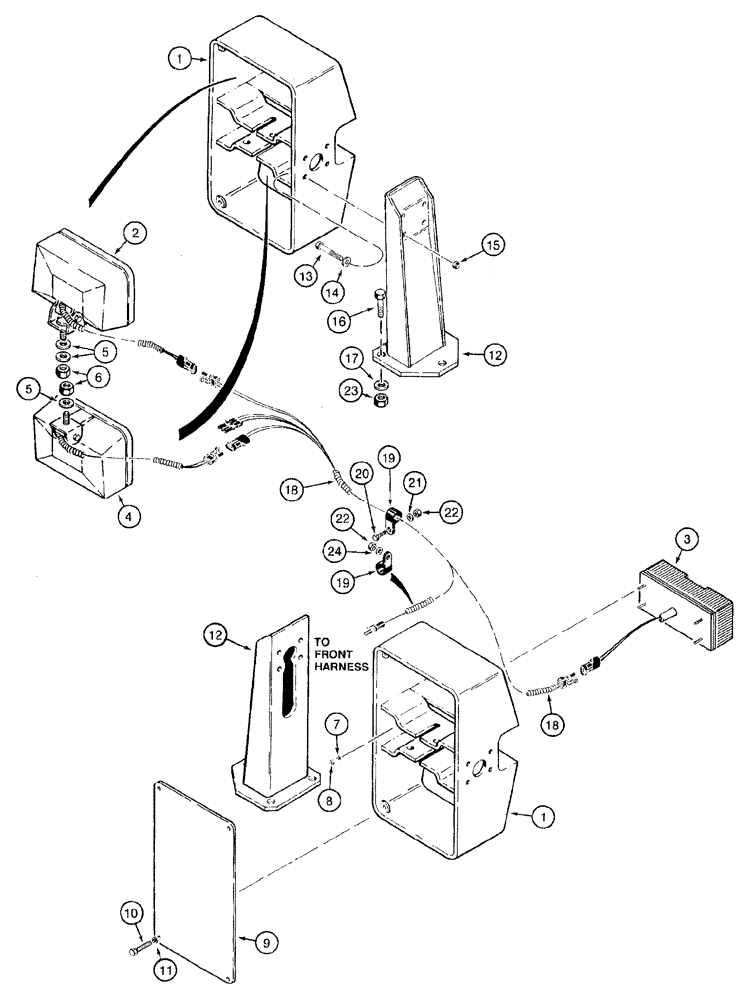

Запчасти Case 921B (4-042) - FRONT LAMP HARNESS AND LAMP MOUNTING (04) - ELECTRICAL SYSTEMS

1

L126951

HOUSING

plastic, front lamp

2шт.

2

A187519

LIGHT ASSY.,24V, 70W, Clear

Drive, See parts list figure 4-46

2шт.

3

REF

INSTRUCTION

LAMP ASSEMBLY - turn signal and flasher, left-hand and right-hand, see figure 4-48 for correct assembly and components

2шт.

4

A187520

LIGHT ASSY.,24V, 70W, Clear

Flood, see parts list figure 4-46, not serviced separately, order 229488A1 kit shown on page 4-47

2шт.

5

495-21056

WASHER,1/2"

flat, 9/16 x 1-3/8 x 7/64 inch

6шт.

6

131-1402

THIN NUT,1/2"-13, GB, Thin

4шт.

7

892-11005

LOCK WASHER,M5

8шт.

8

825-1405

NUT,M5, Cl 8

8шт.

9

L126959

COVER

housing, lamp

2шт.

10

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

8шт.

11

492-11025

LOCK WASHER,1/4"

8шт.

12

L128595

SUPPORT

BRACKET - mounting, lamp

2шт.

13

426-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 8

8шт.

14

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

8шт.

15

231-1445

NUT,5/16"-18, GB

8шт.

16

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

6шт.

17

495-21056

WASHER,1/2"

flat, 9/16 x 1-3/8 x 7/64 inch

6шт.

18

L128585

HARNESS

front lamp

2шт.

19

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type, Front lamp harness

6шт.

20

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

21

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, 13/32 x 13/16 x 1 /16 inch

2шт.

22

231-1446

NUT,3/8" - 16, Gr 5

6шт.

23

131-1402

THIN NUT,1/2"-13, GB, Thin

6шт.

24

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.
