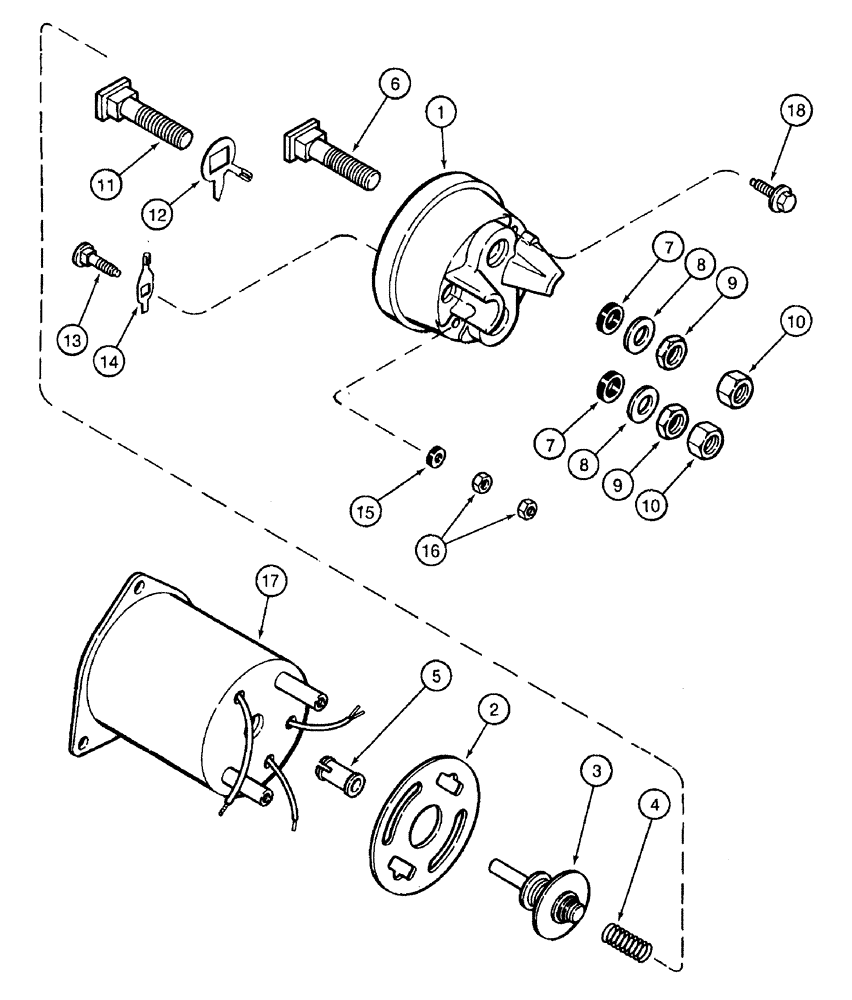

Запчасти Case 921B (4-038) - STARTER SOLENOID ASSEMBLY (04) - ELECTRICAL SYSTEMS

1546546C1

SOLENOID

ASSEMBLY - starter

1шт.

1

116684A1

COVER

ASSEMBLY - solenoid

1шт.

2

A49565

GASKET

cover

1шт.

3

A49566

CONTACTOR

solenoid

1шт.

4

A42411

VALVE SPRING

return, contact disc

1шт.

5

A49564

STUD

BUSHING - contact

1шт.

6

116686A1

BOLT

BOLT - special, 1/2 inch NC

1шт.

7

116382A1

SEALING WASHER

SEAL WASHER WASHER - sealing

2шт.

8

95-81101

WASHER,0.52" ID x 0.88" OD x 0.07" Thk

flat, 33/64 x 7/8 x 1/16 inch

2шт.

9

425-148

JAM NUT,Jam, 1/2"-13, G5

2шт.

10

A47890

NUT

flange type, special, 1/2 inch NC

2шт.

11

A49563

STUD

terminal, special

1шт.

12

116688A1

WASHER

special, terminal

1шт.

13

A42090

TERMINAL CONNECTOR

STUD - terminal, No. 10

2шт.

14

A49570

GASKET

CLIP - terminal, No. 10

2шт.

15

A42084

INSULATOR

terminal, rubber

2шт.

16

1546549C1

NUT

hex flange, special, No. 10 - 32 NF

4шт.

17

NSS

NOT SOLD SEPARAT

HOUSING - solenoid

1шт.

18

116381A1

SCREW

BOLT - flange, No. 10 NFx 21/32 inch

2шт.
