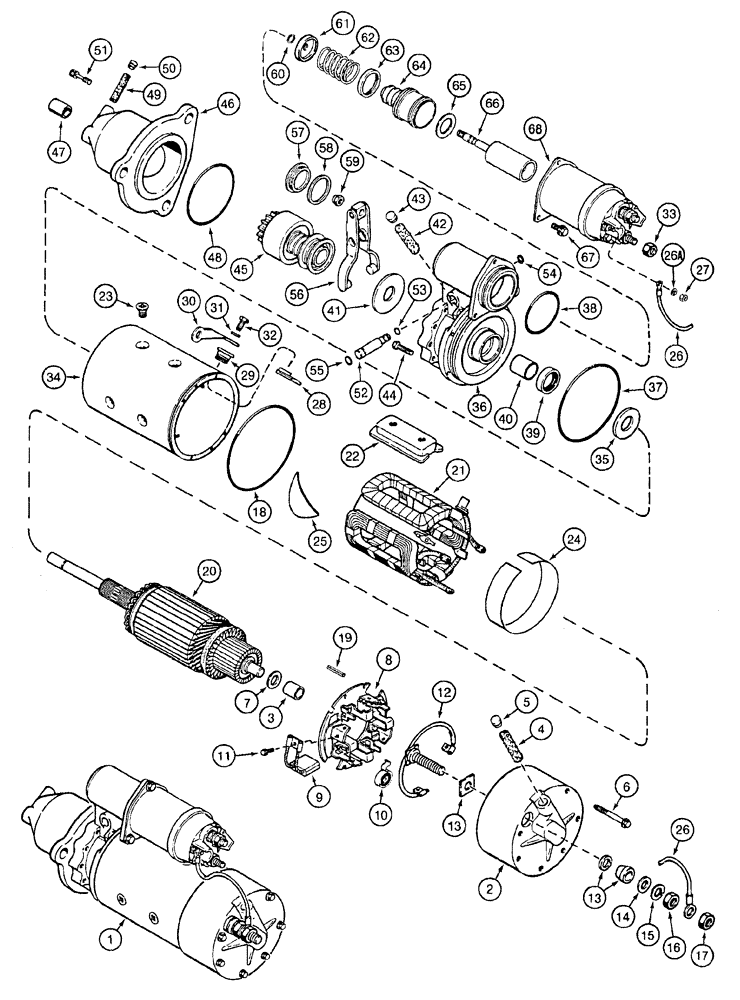

Запчасти Case 921B (4-034) - STARTER ASSEMBLY (04) - ELECTRICAL SYSTEMS

1

L128521

STARTING MOTOR

ASSEMBLY - engine, 24 volt, Delco-Remy, see figure 4-32 for mounting

1шт.

1

LR128521

REMAN-STARTER

Remanufactured Starter

1шт.

1

LC128521

CORE-STARTER

Return Number

1шт.

2

A187561

COVER

ASSEMBLY - commutator end

1шт.

3

A40868

BUSHING

frame, commutator

1шт.

4

A49769

WICK

oil

1шт.

5

A49573

PLUG

oil wick

1шт.

6

142952A1

SCREW,#10 - 32 x 3-1/8"

BOLT - commutator frame, with washer and seal, end cover, replaces A187511 bolt

6шт.

7

95-81175

WASHER,0.69" ID x 1.12" OD x 0.11" Thk

flat, 11/16 x 1-1/8 x 1/8 inch

1шт.

8

A49778

BRUSH ASSY.

MOUNT - brush, starter

1шт.

9

A49777

COMMUTATOR BRUSH

starter

4шт.

10

A49575

SPRING

brush

4шт.

11

A47894

SCREW,#8 - 32 x 5/16"

brush retainer

4шт.

12

A49764

TERMINAL CONNECTOR

WIRE - terminal, commutator end

1шт.

13

A49768

KIT

insulator, terminal, commutator end

1шт.

14

95-81101

WASHER,0.52" ID x 0.88" OD x 0.07" Thk

flat, 33/64 x 7/8 x 1/16 inch

1шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

16

425-148

JAM NUT,Jam, 1/2"-13, G5

1шт.

17

A47890

NUT

flange type, special, 1/2 inch NC, terminal stud

1шт.

18

238-5158

O-RING,0.103" Thk x 4.737" ID, -158, Cl 5, 75 Duro

1шт.

19

A49753

PIN, SPLIT (COTTER)

PIN, COTTER roll, end cover locating

2шт.

20

A49770

ARMATURE

starter

1шт.

21

A49776

COIL ASSY.

field

1шт.

22

R15115

SHOE

pole

4шт.

23

188-100

SCREW,Cross Flat Hd, 3/8"-24 x 5/8"

machine, flat Phillips, 3/8 NF x 21/32 inch

8шт.

24

A49767

RUBBER INSULATOR

field coil terminal

1шт.

25

A41977

RUBBER INSULATOR

field coil

2шт.

26

A47895

ELECTRICAL WIRE

WIRE field coil, Serial Range: terminal-solenoid

1шт.

26

492-11010

LOCK WASHER,#10

1шт.

27

129-667

NUT,#10-32, LH

1шт.

28

A49501

RUBBER INSULATOR

inner, field terminal

1шт.

29

A49500

RUBBER INSULATOR

outer, field terminal

1шт.

30

A49779

TERMINAL CONNECTOR

field, Serial Range: terminal-solenoid

1шт.

31

A42100

WASHER

flat, special, field terminal

1шт.

32

10497770

BOLT,Torx Hd, 1/4" - 20

torx head, special, 1/4 NC x 35/64 inch

1шт.

33

A47890

NUT

flange type, special, 1/2 inch NC, solenoid switch, Serial Range: terminal-connector

1шт.

34

NSS

NOT SOLD SEPARAT

FRAME - field, order L128521 starter assembly

1шт.

35

A40892

WASHER

thrust, armature

1шт.

36

A49772

HOUSING

shift lever

1шт.

37

238-5243

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

4-1/4 ID x 1/8 inch wide, lever housing to field frame

1шт.

38

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

Lever housing to solenoid

1шт.

39

R21582

OIL SEAL

oil, shift lever housing

1шт.

40

A49765

BUSHING

armature, starter drive

1шт.

41

A185121

WASHER

shift lever housing

1шт.

42

A49567

WICK

oil, armature bushing, lever housing

1шт.

43

A49573

PLUG

oil wick, lever housing

1шт.

44

414-416

BOLT,Hex, 1/4" - 28 x 1", Gr 5

BOLT - hex, 1/4 NF x 1 inch

5шт.

45

20-1343T1

DRIVE ASSY.

CLUTCH

1шт.

46

A49773

HOUSING

drive end

1шт.

47

A47257

BUSHING

armature, drive end housing

1шт.

48

A43854

O-RING,3.237" ID x 0.106" THK

housing, drive end housing to shift lever housing

1шт.

49

A47888

WICK

oil, drive end housing

1шт.

50

A47989

SPRING

PLUG - oil wick, drive end housing

1шт.

51

1546551C1

BOLT,Torx Hd, 5/16" - 18 x 0.86"

SCREW - special

6шт.

52

A42199

PIN

SHAFT - shift lever

1шт.

53

A47259

O-RING,0.244" ID x 0.391" OD

shaft, inner

1шт.

54

100-1137

SNAP RING,#37, Ext

Shift lever shaft

1шт.

55

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

Shaft, outer

1шт.

56

A49775

LEVER

shift

1шт.

57

R21587

PLUG

inspection, lever housing, inspection, shift lever housing

1шт.

58

A41924

GASKET

1шт.

59

131-489

LOCK NUT,5/16"-24, G8

hex, self-locking

1шт.

60

100-1137

SNAP RING,#37, Ext

Solenoid plunger

1шт.

61

A43419

SEAT

spring, outer

1шт.

62

A41242

SPRING

plunger return

1шт.

63

A43380

BACK-UP RING

SEAT - plunger spring, inner

1шт.

64

A49589

BOOT

plunger

1шт.

65

A41922

WASHER

plunger seat

1шт.

66

A49757

PLUNGER

solenoid

1шт.

67

10497770

BOLT,Torx Hd, 1/4" - 20

torx head, special, 1/4 NC x 35/64 inch, solenoid retaining

3шт.

68

1546546C1

SOLENOID

ASSEMBLY - starter, parts list figure 4-38

1шт.

A187513

KIT

brush, starter, includes items 6, 9-11, and 18 on this figure 9-34

1шт.

A187514

KIT

bushing, includes items 3 - 7, 18, 35, 37, and 38 on this figure 4-34 and items 39 - 43, 47 - 50, and 58 on figure 4-36

1шт.

A187515

KIT

shift lever, starter, starter, includes items 18 and 38 on figure 4-34 and items 48, 52, 53, 55, 56, 58, and 59 on this figure

1шт.
