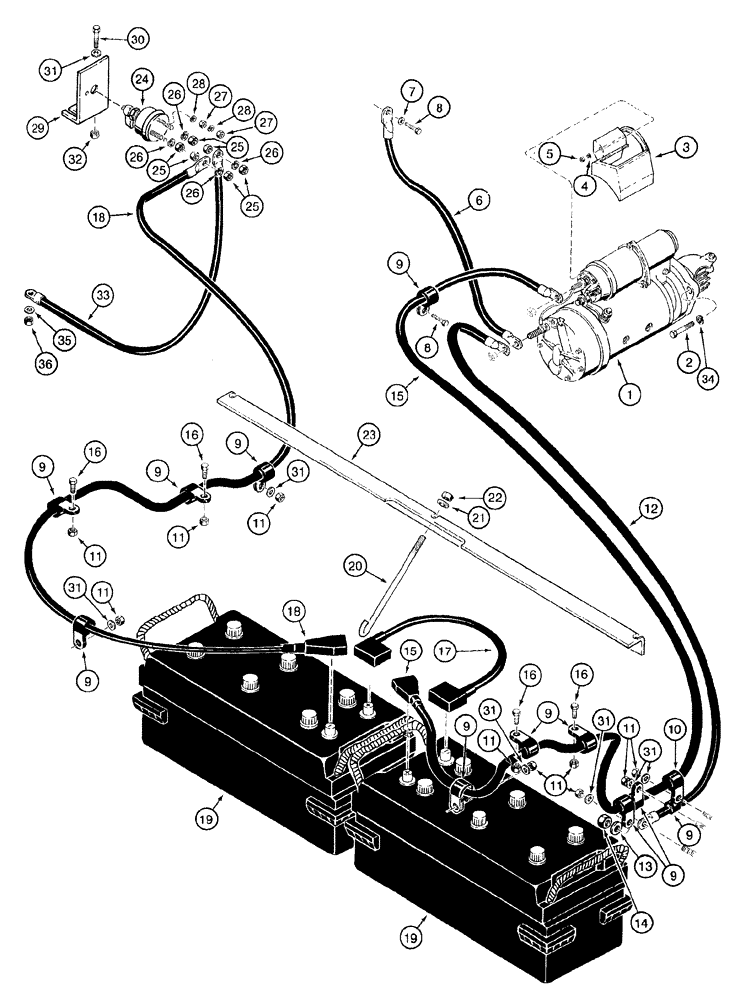

Запчасти Case 921B (4-032) - STARTER, BATTERY AND BATTERY CABLES (04) - ELECTRICAL SYSTEMS

1

L128521

STARTING MOTOR

ASSEMBLY - engine, 24 volt, parts list figures 4-34 - 4-38

1шт.

Part of the Starter Kit P/N 236876A1

1шт.

1

LR128521

REMAN-STARTER

Remanufactured Starter

1шт.

1

LC128521

CORE-STARTER

Return Number

1шт.

2

614-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 8.8, Full Thd

3шт.

3

L128826

SHIELD

GUARD - starter terminal

1шт.

Part of the Starter Kit P/N 236876A1

1шт.

4

492-11010

LOCK WASHER,#10

1шт.

Part of the Starter Kit P/N 236876A1

1шт.

5

225-14210

NUT,#10-32

1шт.

Part of the Starter Kit P/N 236876A1

1шт.

6

L128536

CABLE

ground, Serial Range: starter-engine

1шт.

7

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

flat, brass, special, 11 x 25 x 2 mm

1шт.

8

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

9

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type

11шт.

10

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type

1шт.

11

231-1446

NUT,3/8" - 16, Gr 5

10шт.

12

L129708

CABLE

ground, starter to right-hand rear frame

1шт.

13

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

flat, brass, special, 11 x 25 x 2 mm

1шт.

14

L127555

NUT,Hex, 3/8" - 16

hex, brass, special, 3/8 inch NC

1шт.

15

L128537

CABLE

battery, battery to starter, positive terminal

1шт.

16

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

4шт.

17

L114087

CABLE

jumper, Serial Range: battery-battery

1шт.

18

L128719

CABLE

ground, disconnect switch to battery, negative terminal

1шт.

19

BHC4DA

BATTERY, DRY

BATTERY DRY heavy duty, 12 volt, service replacement

2шт.

20

198185A1

TRUSS ROD,5/16" - 18 x 9.7"

BOLT - J-type, battery hold down

3шт.

21

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

3шт.

22

231-1445

NUT,5/16"-18, GB

3шт.

23

L129104

SUPPORT

BRACKET - battery hold down

2шт.

L126256

SWITCH

ASSEMBLY - master disconnect

1шт.

24

NSS

NOT SOLD SEPARAT

BODY - switch

1шт.

25

129-187

NUT,5/16"-24, Brass

6шт.

26

492-11038

LOCK WASHER,3/8"

4шт.

27

131-573

NUT,#10-32

light hex, self-locking

4шт.

28

492-11010

LOCK WASHER,#10

4шт.

29

105502A1

SUPPORT

BRACKET - mounting, disconnect switch

1шт.

30

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

2шт.

31

496-21041

WASHER,13/32" x 13/16" x .089", HDN

8шт.

32

231-1446

NUT,3/8" - 16, Gr 5

2шт.

33

L129707

NEG BATTERY CABLE

ground, disconnect switch to left-hand rear frame

1шт.

34

492-11062

BEARING WASHER,5/8"

3шт.

35

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

flat, brass, special, 11 x 25 x 2 mm

1шт.

36

L127555

NUT,Hex, 3/8" - 16

hex, brass, special, 3/8 inch NC

1шт.

236876A1

KIT

KIT - starter, Includes: Ref. 1, 3, 4, 5

1шт.
