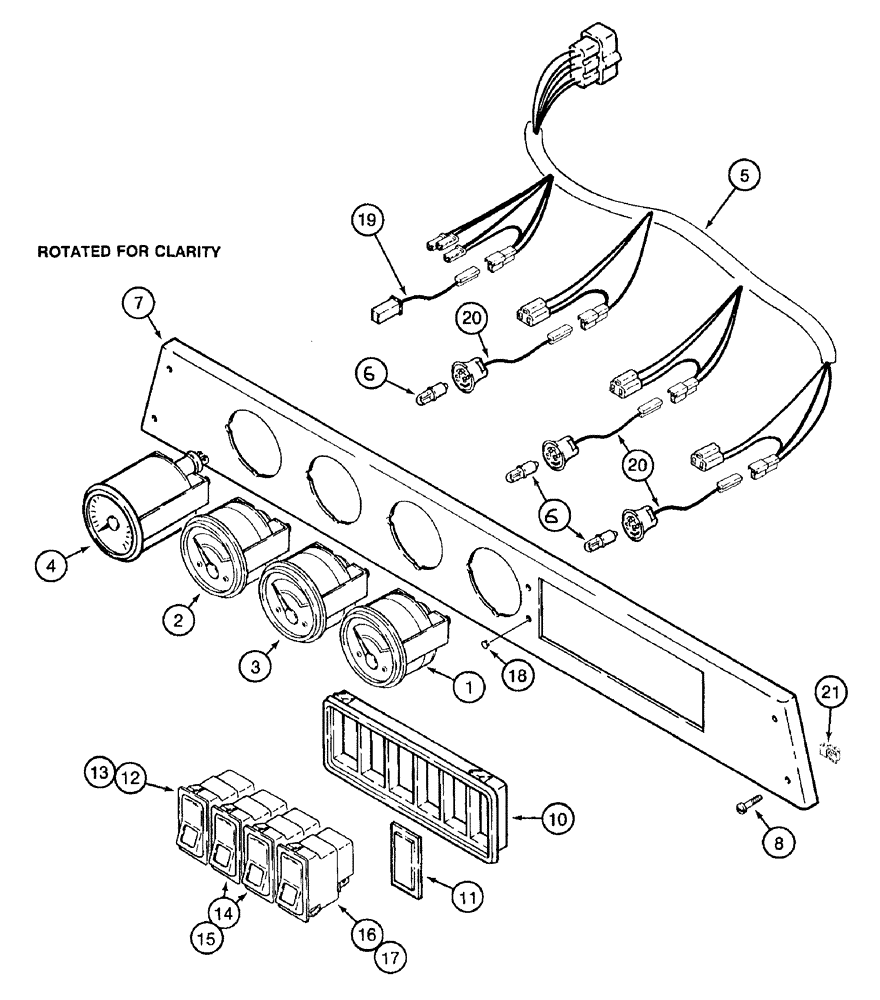

Запчасти Case 921B (4-028) - GAUGES AND OVERHEAD SWITCHES (04) - ELECTRICAL SYSTEMS

1

L125857

VOLTMETER

GAUGE

1шт.

2

118265A1

ELECTRICAL GAUGE

engine oil pressure

1шт.

3

118266A1

ELECTRICAL GAUGE

transmission oil temperature

1шт.

4

L129015

TACHOMETER

GAUGE - tachometer

1шт.

4

102044A1

BULB

24V, 3W, not shown

1шт.

5

108260A1

HARNESS

gauges

1шт.

6

S116543

BULB

No. 456, No. 456

3шт.

7

1339563C2

PANEL, INSTRUMENTS

PANEL, INSTRUMENT overhead

1шт.

8

1276051C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1"

pan Phillips, special, 1/4 NC x 1 inch

4шт.

10

A187580

PANEL

mounting, switch

1шт.

11

245918C1

LENS

PLUG - rectangular, blanking rocker switch

1шт.

12

A187622

SWITCH

SWITCH - rocker, windshield washer

1шт.

See figure 9-82 and 9-84 for roacker switch decals

1шт.

13

P40506

LAMP

BULB - rocker switch, replaces 926645C1 bulb

1шт.

14

A187621

SWITCH

SWITCH - rocker, wiper, front and rear

2шт.

See figure 9-82 and 9-84 for roacker switch decals

1шт.

One A187621 wiper switch is included in L36339 canopy windshield and wiper kit shown figure 9-78.

1шт.

15

P40506

LAMP

BULB - rocker switch, replaces 926645C1 bulb

1шт.

16

1913507C1

SWITCH ASSY

rocker, beacon

1шт.

See figure 9-82 and 9-84 for roacker switch decals

1шт.

17

P40506

LAMP

BULB - rocker switch, replaces 926645C1 bulb

1шт.

18

353-401

PLUG,Dome, .312" hole, Nylon

button, 5/16 inch

2шт.

19

108259A1

ELECTRICAL WIRE

WIRE jumper, tachometer lamp

1шт.

20

108258A1

ELECTRICAL WIRE

WIRE jumper, gauge lamps

3шт.

21

1301128C2

SPRING NUT,U, 1/4" - 20 x 23.37mm, Gr 5

U-type, 1/4 inch NC

4шт.
