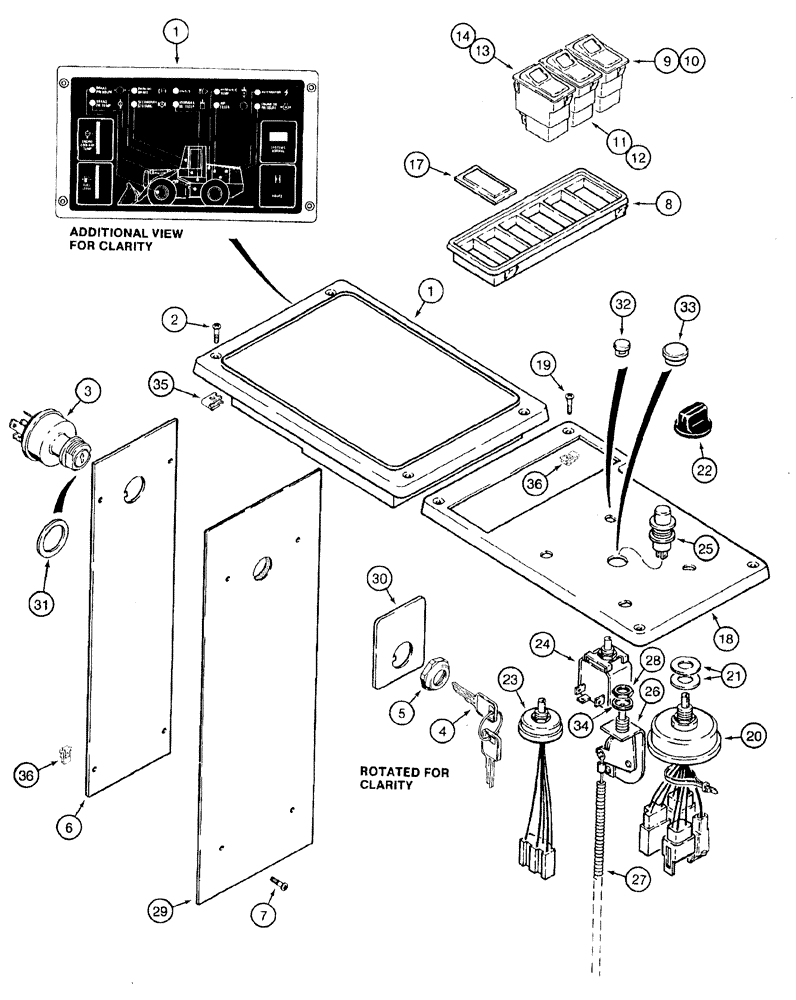

Запчасти Case 921B (4-026) - INSTUMENT PANEL AND IGNITION SWITCH (04) - ELECTRICAL SYSTEMS

1

1987532C1

CLUSTER

PANEL - instrument, with graphics, monitoring system, no longer available, order 185653A2 panel, item 1A

1шт.

See figure 4-18, item 10 and 13, for rocker switch and warning lamp used on models with ride control.

1шт.

See figures 9-82 and 9-84 for environmental control panel and rocker switch decals.

1шт.

185653A2R

REMAN-INSTR CLUSTER

921B (3/95-), Reman For New PN 1987532C1

1шт.

185653A2C

CORE-CLUSTER, INSTR

Return Number

1шт.

1a

185653A2

CLUSTER

PANEL ASSEMBLY - instrument, with graphics, monitoring system, not shown

1шт.

185653A2R

REMAN-INSTR CLUSTER

921B (3/95-)

1шт.

185653A2C

CORE-CLUSTER, INSTR

Return Number

1шт.

2

99997C1

SELF-TAP SCREW,Cross Pan Hd, #10-24 x 3/4"

pan head, No. 10 NC x 3/4 inch

4шт.

D134737

IGNITION SWITCH

SWITCH ASSEMBLY - ignition, includes keys, replaces 307871A1 switch assembly

1шт.

3

NSS

NOT SOLD SEPARAT

SWITCH - ignition

1шт.

4

A77313

SET OF 2 KEYS

replaces 307852A1 key

1шт.

5

A77314

NUT

hex, special, key switch mounting

1шт.

6

193904A1

LARGE PLATE

PLATE, LARGE mounting, ignition switch

1шт.

7

1276117C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 3/4"

pan Phillips, special, 1/4 NC x 3/4 inch

4шт.

8

A187580

PANEL

mounting, switch

1шт.

9

A187762

SWITCH

SWITCH - rocker, declutch selector

1шт.

See figure 4-18, item 10 and 13, for rocker switch and warning lamp used on models with ride control.

1шт.

See figures 9-82 and 9-84 for environmental control panel and rocker switch decals.

1шт.

10

P40506

LAMP

BULB - rocker switch, not shown, replaces 926645C1 bulb

1шт.

11

1913507C1

SWITCH ASSY

rocker, Serial Range: return-dig

1шт.

See figure 4-18, item 10 and 13, for rocker switch and warning lamp used on models with ride control.

1шт.

See figures 9-82 and 9-84 for environmental control panel and rocker switch decals.

1шт.

12

P40506

LAMP

BULB - rocker switch, not shown, replaces 926645C1 bulb

1шт.

13

A187762

SWITCH

rocker, return to transport and height control

1шт.

See figure 4-18, item 10 and 13, for rocker switch and warning lamp used on models with ride control.

1шт.

See figures 9-82 and 9-84 for environmental control panel and rocker switch decals.

1шт.

14

P40506

LAMP

BULB - rocker switch, not shown, replaces 926645C1 bulb

1шт.

17

245918C1

LENS

PLUG - rectangular, blanking, if used

1шт.

18

1970047C3

PANEL

control, environmental

1шт.

19

1276051C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1"

pan Phillips, special, 1/4 NC x 1 inch

4шт.

20

1994716C1

LIGHT SWITCH

Lamp, Five position

1шт.

21

495-21056

WASHER,1/2"

flat, 9/16 x 1-3/8 x 7/64 inch

2шт.

22

1994720C1

KNOB

push on

4шт.

23

92100C2

SWITCH

blower motor

1шт.

24

A187954

SWITCH

SWITCH - thermostat, use on units with air conditioning

1шт.

25

A187881

LAMP

amber lens, No. 1820, used on units with air conditioning

1шт.

1977535C2

CABLE

ASSEMBLY - heater, for service order items 26 and 27

1шт.

26

1954651C2

CONTROL

heater

1шт.

27

1954648C2

CABLE

heater

1шт.

28

109311H

JAM NUT

hex, jam, 7/16-28 NF

1шт.

29

179303A1

PADDING

FOAM - ignition switch mounting plate

1шт.

30

193319A1

PAD

PLATE - ignition switch, replaces 1339931C1 plate

1шт.

31

95-11106

WASHER,1" x 2" x .134"

flat, 1-1/16 x 2 x 1/8 inch, units with canopy

1шт.

32

353-407

PLUG,Dome, .687" hole, Nylon

button, 11/16 inch, used on units without air conditioning

1шт.

33

353-403

PLUG,Dome, .437" hole, Nylon

Used on units without air conditioning

1шт.

34

495-21056

WASHER,1/2"

flat, 9/16 x 1-3/8 x 7/64 inch

1шт.

35

131-876

SPRING NUT,U, #10 - 24, 0.020" Thk

U-type, No. 10 NC

4шт.

36

1301128C2

SPRING NUT,U, 1/4" - 20 x 23.37mm, Gr 5

U-type, 1/4 inch NC

8шт.
