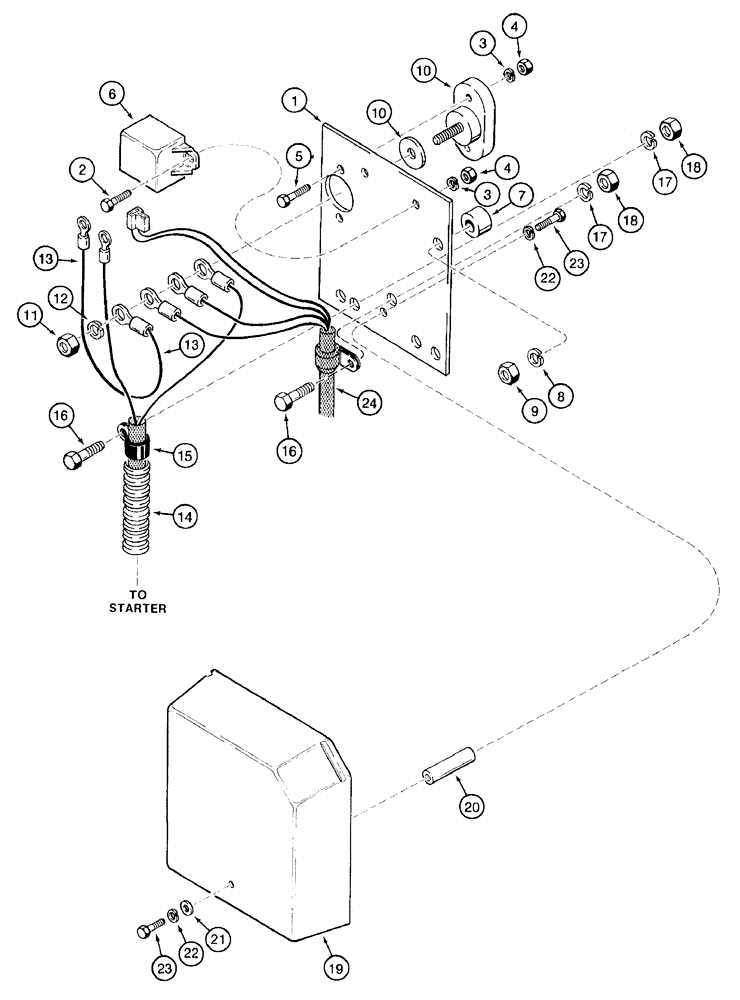

Запчасти Case 921B (4-024) - ENGINE HARNESS TO RELAY PANEL, PRIOR TO P.I.N. JEE0052701 (04) - ELECTRICAL SYSTEMS

1

L124084

LARGE PLATE

PLATE, LARGE PANEL - relay mounting

1шт.

2

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

2шт.

3

492-11025

LOCK WASHER,1/4"

4шт.

4

425-104

NUT,1/4"-20, Cl 5

4шт.

5

426-416

BOLT,Hex, 1/4" - 20 x 1", Gr 8

2шт.

6

1546542C1

RELAY

sealed, 24 volt, starter

1шт.

7

S77915

SPACER

relay panel mounting

2шт.

8

492-11038

LOCK WASHER,3/8"

2шт.

9

425-106

NUT,3/8"-16, Cl 5

2шт.

L124085

CONNECTOR, ELEC

CONNECTOR BLOCK - terminal

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - terminal block, includes flat washer

1шт.

11

425-106

NUT,3/8"-16, Cl 5

1шт.

12

492-11038

LOCK WASHER,3/8"

1шт.

13

L124102

ELECTRICAL WIRE

WIRE jumper, if used

1шт.

14

L128535

CABLE

, Serial Range: relay,-starter

1шт.

15

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type

1шт.

16

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

17

492-11038

LOCK WASHER,3/8"

2шт.

18

425-106

NUT,3/8"-16, Cl 5

2шт.

19

L114612

COVER

relay panel

1шт.

20

L114195

SPACER

relay panel

1шт.

21

495-21031

WASHER,1/4"

flat, 5/16 x 3/4 x 1/16 inch

1шт.

22

492-11025

LOCK WASHER,1/4"

2шт.

23

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

2шт.

24

180802A1

HARNESS

engine, see figures 4-20 and 4-22 for additional harness connections

1шт.
