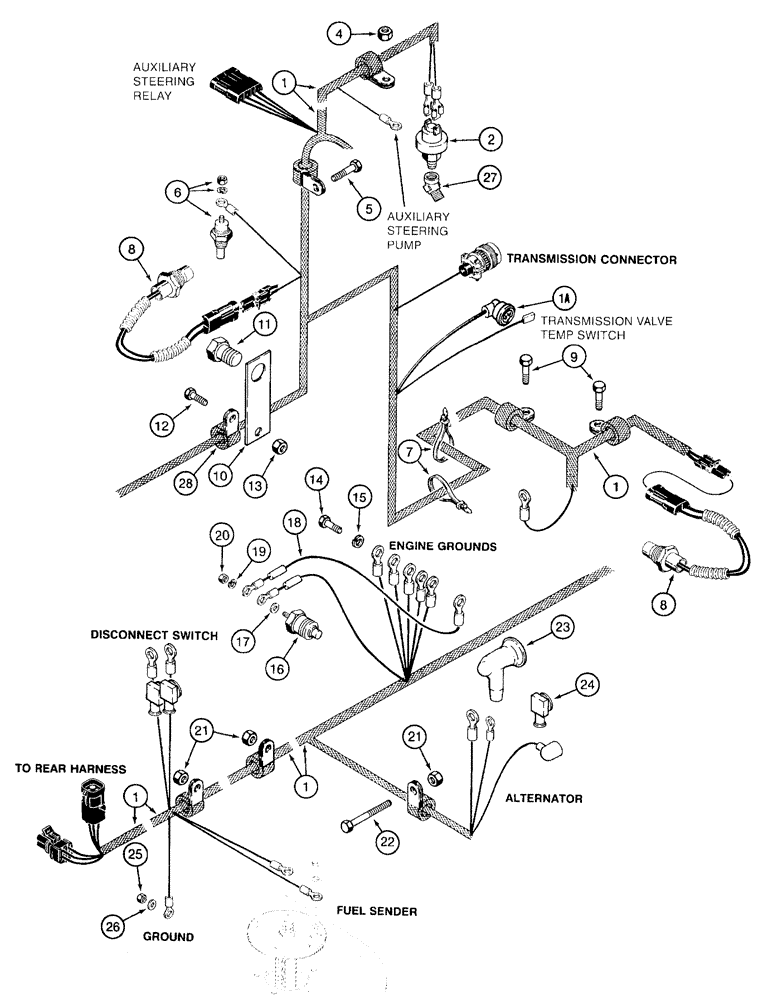

Запчасти Case 921B (4-023[A]) - REAR HARNESS - ENGINE LEFT-HAND SIDE, P.I.N. JEE0052701 AND AFTER (04) - ELECTRICAL SYSTEMS

1

244238A1

HARNESS

engine, see firgures 4-21A and 4-25A for continuation of harness

1шт.

1a

244181A1

CONNECTION,ELECTRIC

transmission solenoid valve

1шт.

2

292740A1

RESTRICTION SWITCH

air cleaner, replaces 1983233C1 switch

1шт.

4

231-1446

NUT,3/8" - 16, Gr 5

1шт.

5

413-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

hex, 7/16 NC x 1-1/2 inch

1шт.

6

L127532

TEMPERATURE SENDER,1/2" - 14

transmission oil

1шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

1шт.

8

A187530

TEMPERATURE SENDER

SWITCH - transmission and hydraulic oil temperature

2шт.

9

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

10

L129245

SUPPORT

BRACKET - mounting, harness at engine flywheel

1шт.

11

413-1216

BOLT,Hex, 3/4" - 10 x 1", Gr 5

BOLT - hex, 3/4 NC x 1 inch

1шт.

12

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

1шт.

13

231-1446

NUT,3/8" - 16, Gr 5

1шт.

14

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

15

892-11010

LOCK WASHER,M10

1шт.

16

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

engine coolant

1шт.

17

495-31025

WASHER,3/16"

flat, 1/4 x 9/16 x 3/64 inch

1шт.

18

L129823

ELECTRICAL WIRE

WIRE ground, with resistor, engine coolant temperature, Serial Range: sender-engine

1шт.

19

492-11010

LOCK WASHER,#10

1шт.

20

225-20210

NUT,#10-32, Brass

1шт.

21

231-1446

NUT,3/8" - 16, Gr 5

3шт.

22

426-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

BOLT - hex, 3/8 NC x 2-1/4 inch, grade 8

1шт.

23

L126713

BOOT

plastic, alternator, B+ terminal

1шт.

24

S64612

BOOT

rubber, alternator, D+ terminal

1шт.

25

L127555

NUT,Hex, 3/8" - 16

hex, brass, special, 3/8 inch NC

1шт.

26

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

flat, brass, special, 11 x 25 x 2 mm

1шт.

27

217-1084

45 ELBOW,45 Degree, 1/8"-27 Female x 1/8"-27 Male

Street

1шт.

28

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type

1шт.
