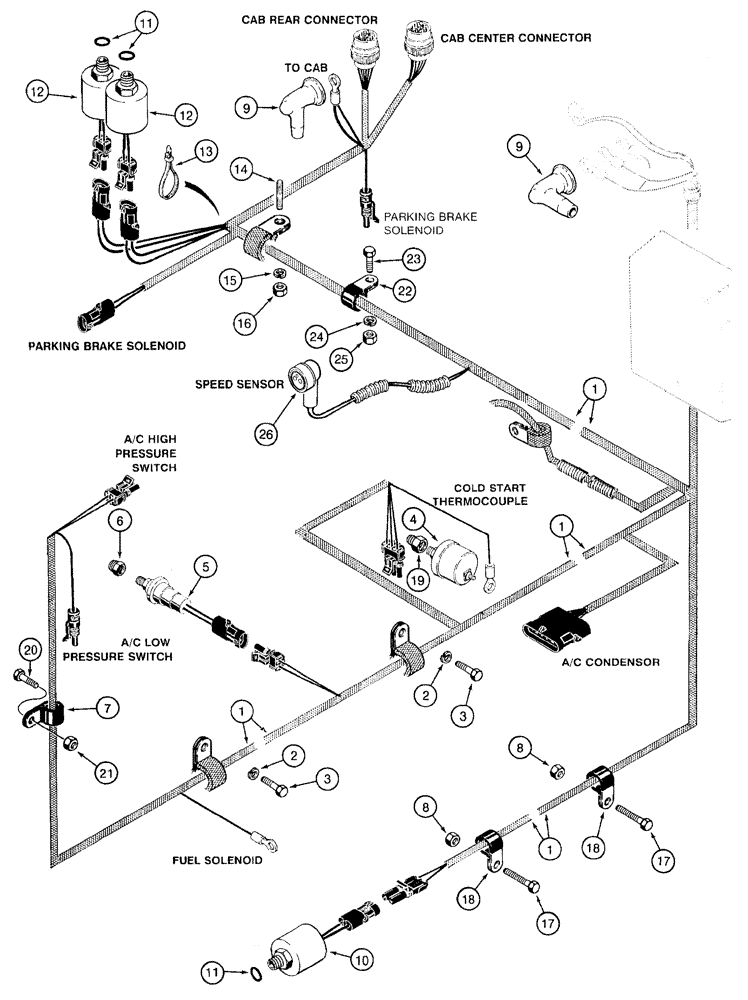

Запчасти Case 921B (4-020) - REAR HARNESS - ENGINE RIGHT-HAND SIDE, PRIOR TO P.I.N. JEE0052701 (04) - ELECTRICAL SYSTEMS

1

180802A1

HARNESS

engine, see figures 4-22 and 4-24 for continuation of harness

1шт.

2

892-11012

LOCK WASHER,M12

2шт.

3

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

2шт.

4

L127534

SENDER UNIT

SENDER engine oil pressure

1шт.

5

A187723

SENDER UNIT

SENDER SWITCH - engine oil pressure

1шт.

6

217-1034

REDUCER,1/4" - 18 Male NPTF x 1/8" - 27 Female NPTF

Replaces 221-84 reducer

1шт.

7

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

1шт.

8

231-1446

NUT,3/8" - 16, Gr 5

2шт.

9

L126713

BOOT

plastic

2шт.

10

L128913

PRESSURE SWITCH

low pressure warning

1шт.

12

L128914

PRESSURE SWITCH

low pressure

2шт.

13

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

1шт.

14

S112500

STUD

special, 5/16 NC x 1-1/4 inch

1шт.

15

492-11031

LOCK WASHER,5/16"

1шт.

16

425-105

NUT,5/16"-18, G5

1шт.

17

413-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

hex, 7/16 NC x 1-1/2 inch

2шт.

18

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

2шт.

19

221-628

REDUCER,Hex, 1/4" x 1/8" NPT

REDUCER - pipe, 1/4 male x 1/8 inch female

1шт.

20

426-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

1шт.

21

425-105

NUT,5/16"-18, G5

1шт.

22

515-23270

CLAMP,1 1/16", Insul, 3/8" Bolt

P-type, 1-1/16 inch ID

1шт.

23

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

1шт.

24

492-11038

LOCK WASHER,3/8"

1шт.

25

425-106

NUT,3/8"-16, Cl 5

1шт.

26

L129852

CONNECTOR, ELEC

CONNECTOR speed sensor, included with harness

1шт.

27

250838A2

HYD CONNECTOR

M10 x 1/8 inch PT, not shown

1шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.
