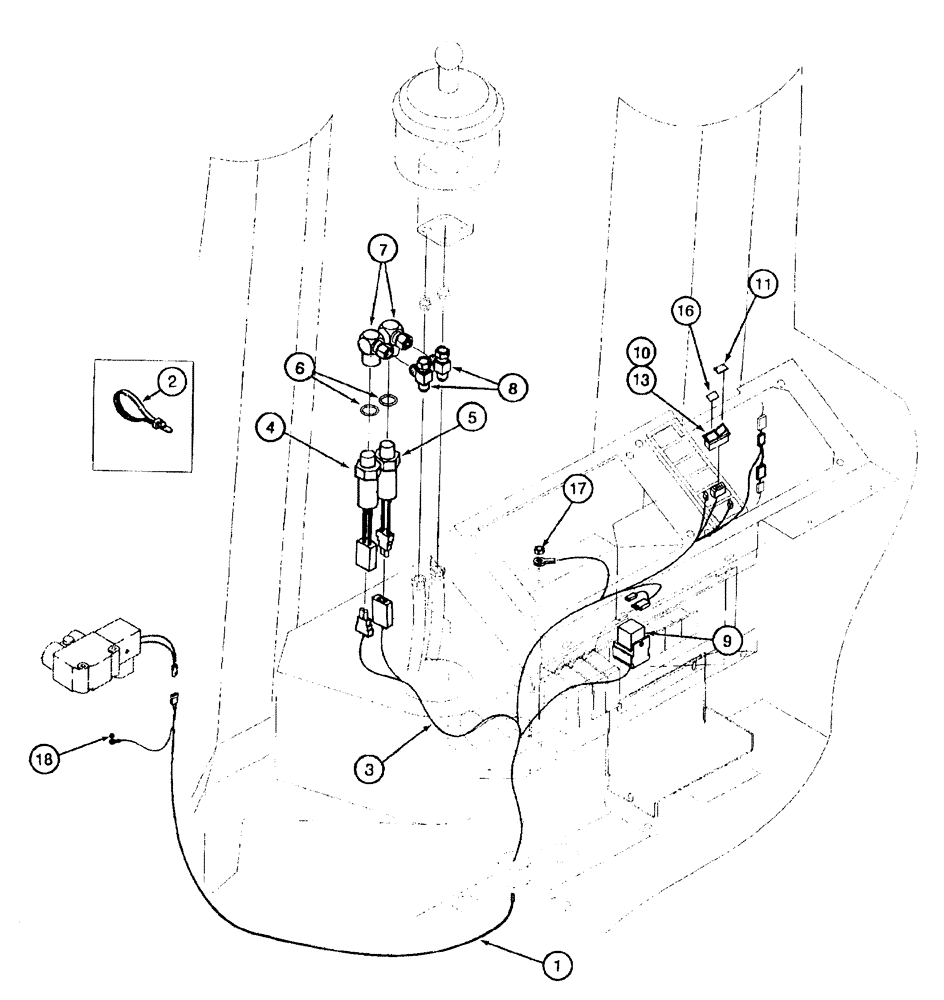

Запчасти Case 921B (4-018) - RIDE CONTROL HARNESS (04) - ELECTRICAL SYSTEMS

1

107865A1

ELECTRICAL WIRE

WIRE HARNESS - ride control, front, cab floor to master valve solenoid, see figure 8-78

1шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, front ride control harness

10шт.

3

130417A1

HARNESS

ride control, cab

1шт.

4

132905A1

SWITCH

loader bucket tilt circuit

1шт.

Item 4, bucket tilt switch and fittings connect to the connector at YB port of the single lever remote controller and XA port for the dual lever remote controller, Item 5, left switch and fittings connect to the connector at XB port for both model controllers. See figures 8-42 (single lever remote control with two spool valve), 8-44 (dual lever remote control with two spool valve), or 8-54 (two single lever remote controls with four spool valve) for fittings at the remote control.

1шт.

5

132906A1

SWITCH

loader lift circuit

1шт.

Item 4, bucket tilt switch and fittings connect to the connector at YB port of the single lever remote controller and XA port for the dual lever remote controller, Item 5, left switch and fittings connect to the connector at XB port for both model controllers. See figures 8-42 (single lever remote control with two spool valve), 8-44 (dual lever remote control with two spool valve), or 8-54 (two single lever remote controls with four spool valve) for fittings at the remote control.

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

7

131248A1

ELBOW,90 Degree, 9/16"-18 37 Degree Sw x 3/4"-16 O-Ring Fem

ELBOW - 90 degree, special

2шт.

Item 4, bucket tilt switch and fittings connect to the connector at YB port of the single lever remote controller and XA port for the dual lever remote controller, Item 5, left switch and fittings connect to the connector at XB port for both model controllers. See figures 8-42 (single lever remote control with two spool valve), 8-44 (dual lever remote control with two spool valve), or 8-54 (two single lever remote controls with four spool valve) for fittings at the remote control.

1шт.

8

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

2шт.

Item 4, bucket tilt switch and fittings connect to the connector at YB port of the single lever remote controller and XA port for the dual lever remote controller, Item 5, left switch and fittings connect to the connector at XB port for both model controllers. See figures 8-42 (single lever remote control with two spool valve), 8-44 (dual lever remote control with two spool valve), or 8-54 (two single lever remote controls with four spool valve) for fittings at the remote control.

1шт.

9

198161A1

RELAY

mini, 24 volt, latching, see figure 4-10 (cab) or 4-16 (canopy) for power distribution center

1шт.

10

1913507C1

SWITCH ASSY

rocker, ride control, see figure 4-26 for instrument panel

1шт.

11

83884C1

SYMBOLS

SYMBOL LENS - green

2шт.

12

191146A1

DECAL

ride control, not shown, see figure 9-82

1шт.

13

A187870

LAMP

warning, ride control indicator, see figure 4-26 for instrument panel

1шт.

14

P40506

LAMP

BULB - rocker switch, not shown, replaces 926645C1 bulb

1шт.

15

191145A1

DECAL

ride control, on, not shown, see figure 9-82

1шт.

16

83883C1

SYMBOLS

SYMBOL LENS - black

1шт.

17

1999948C1

FLANGE NUT

hex flange, special, 5/16 inch

1шт.

18

425-106

NUT,3/8"-16, Cl 5

1шт.
