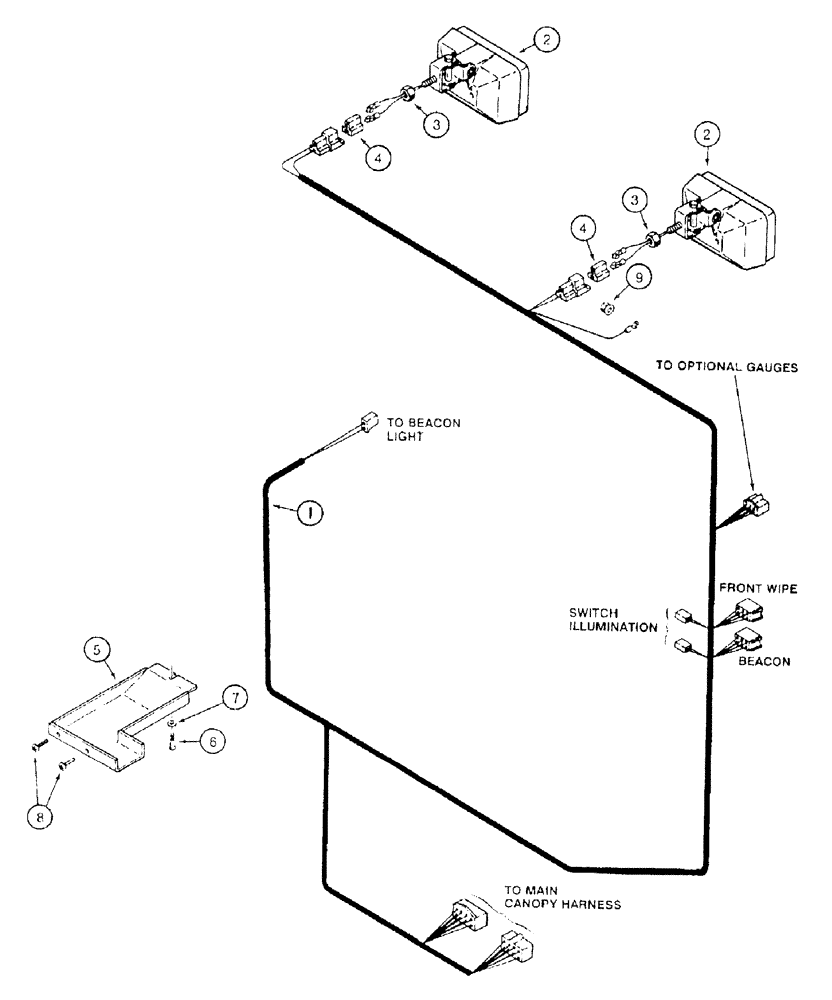

Запчасти Case 921B (4-012) - CANOPY ROOF HARNESS (04) - ELECTRICAL SYSTEMS

1

1546502C1

HARNESS

roof, ROPS canopy

1шт.

2

A187541

LIGHT ASSY.,Halogen, 24V, 70W, Clear

LAMP ASSEMBLY - flood, upper, parts list figure 4-46

2шт.

3

425-148

JAM NUT,Jam, 1/2"-13, G5

2шт.

4

877291R1

ELEC CONNECTOR,Female

harness to flood lamp

2шт.

5

193825A1

COVER

harness, upper right-hand rear

1шт.

6

117067A1

SELF-TAP SCREW,Pan Hd, #10-24 x 3/4"

1шт.

7

195-81023

WASHER,5.94mm ID x 14.28mm OD x 1.25mm Thk

(1/4 x 9/16 x 3/64")

1шт.

8

140-112

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

2шт.

9

1999948C1

FLANGE NUT

hex flange, special, 5/16 inch, mounts ground wires to canopy frame

1шт.
