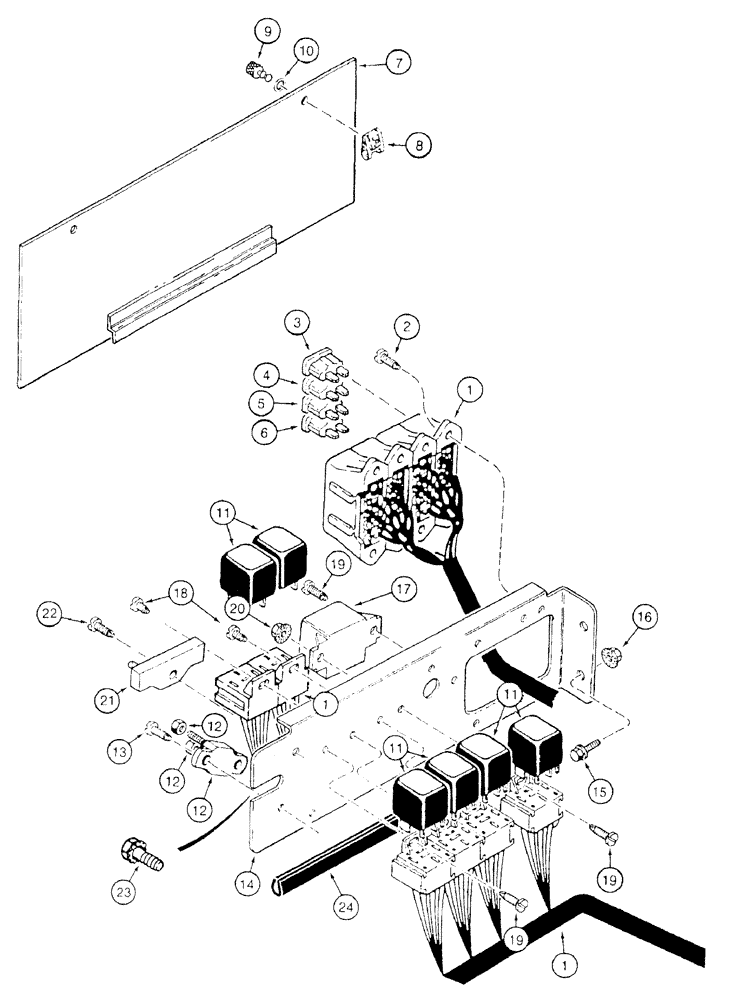

Запчасти Case 921B (4-010) - MAIN CAB HARNESS - POWER DISTRIBUTION CENTER (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
178901A1
HARNESS
main cab, see figure 4-8 for serviceable rectifier, prior to P.I.N. JEE0052701
1шт.
1
244244A1
HARNESS
main cab, see figure 4-8 for serviceable rectifier, P.I.N. JEE0052701 and after
1шт.
2
261-13512
SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"
self-tapping, pan Phillips, No. 10 NC x 3/4 inch
4шт.
3
A149796
FUSE
violet, 3 ampere
1шт.
4
A149798
FUSE
tan, 5 ampere
4шт.
5
A149800
FUSE,10 Amp
red, 10 ampere, eleven used with 244244A1 harness
10-11шт.
6
A149801
FUSE,Lt Blue, 15 Amp
light blue, 15 ampere
3шт.
7
193674A1
COVER
fuse box
1шт.
8
A36042
CLIP
RETAINER - quarter turn
2шт.
9
1970049C2
STUD
fuse box
2шт.
10
1981869C1
WASHER
WASHER - retainer
2шт.
11
198161A1
RELAY
mini, 24 volt, replaces A186288 relay
5шт.
12
S243558
CIRCUIT-BREAKER,12.5A
includes bracket and hardware, with plastic housing and seal, 12.5 ampere
1шт.
13
261-13512
SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"
self-tapping, pan Phillips, No. 10 NC x 3/4 inch
2шт.
14
1987018C2
SUPPORT
HOUSING - power distribution center
1шт.
15
409-748
BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl
2шт.
17
1546542C1
RELAY
sealed, 24 volt, cab power, no longer used, order 120398A1 relay, item 17A
1шт.
18
261-1356
SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"
self-tapping, pan Phillips, No. 10 NC x 3/8 inch
2шт.
19
261-13512
SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"
self-tapping, pan Phillips, No. 10 NC x 3/4 inch
3шт.
20
231-51409
SERRATED NUT,Flg, USR, #10-24
1шт.
21
F22316
RESISTOR,75 Ohms 0.2 Amps DC
75 ohm
1шт.
22
261-13516
SELF-TAP SCREW,Cross Pan Hd, #10 x 1"
self-tapping, pan Phillips, No. 10 NC x 1 inch
1шт.
23
409-7612
BOLT,3/8"-16 x 1.09" OAL
1шт.
24
L127454
LINING
TRIM - edge, 220 mm (8-3/4 inch) long, cut from F64277X bulk trim, shown below, edge
1шт.
F64277X
SEAL
TRIM - edge, bulk, 14478 mm (570 inch) long
1шт.
Выбрано товаров: 27
