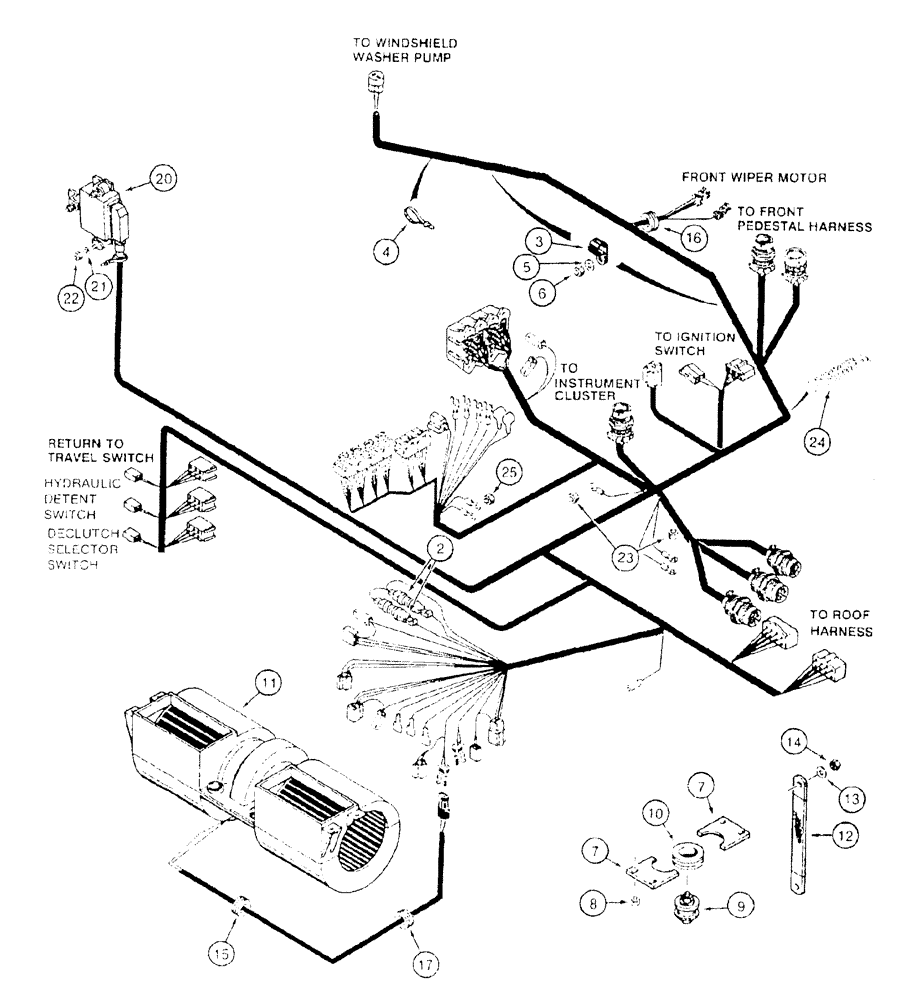

Запчасти Case 921B (4-008) - MAIN CAB HARNESS (04) - ELECTRICAL SYSTEMS

1

178901A1

HARNESS

main cab, prior to P.I.N. JEE0052701

1шт.

1

244244A1

HARNESS

main cab, P.I.N. JEE0052701 and after

1шт.

2

548239R2

RECTIFIER

DIODE - nonlocking

2шт.

3

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type

2шт.

4

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

1шт.

5

495-21031

WASHER,1/4"

flat, 5/16 x 3/4 x 1/16 inch

4шт.

6

425-104

NUT,1/4"-20, Cl 5

4шт.

7

1970030C1

LARGE PLATE

PLATE, LARGE harness guide

2шт.

8

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

9

A187523

JUNCTION BLOCK

cable junction, includes hardware, in floor of operators compartment

1шт.

10

A187875

GROMMET

rubber, cab floor

1шт.

11

REF

INSTRUCTION

BLOWER ASSEMBLY - cab, parts list figure 4-56

1шт.

12

L126051

GROUND STRAP

1шт.

13

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

flat, brass, special, 11 x 25 x 2 mm

2шт.

14

L127555

NUT,Hex, 3/8" - 16

hex, brass, special, 3/8 inch NC

2шт.

15

96901C1

GROMMET

blower motor wire

1шт.

16

117975

GROMMET,5/8" ID x 1 3/8" x .062", Diag Cut

rubber, replaces 1973558C1 grommet

1шт.

17

1546537C1

GROMMET

wire

1шт.

20

138496A1

TESTER

CONTROL - transmission, ZF 6009 054 065, prior to P.I.N. JEE0052701

1шт.

20

138496A1R

REMAN ELECT CONTROL

921B, N.A. Only

1шт.

20

138496A1C

CORE-ELECTRONIC CONT

Return Number, For N.A. Only

1шт.

The ZF part number is stamped on the control.

1шт.

20

242559A1

TESTER

CONTROL - transmission, ZF 6009 047 656, P.I.N. JEE0052701 and after

1шт.

The ZF part number is stamped on the control.

1шт.

21

492-11010

LOCK WASHER,#10

3шт.

22

225-14110

NUT,#10-24

3шт.

23

425-106

NUT,3/8"-16, Cl 5

Mounts ground wires to cab frame

3шт.

24

1970021C1

GROMMET

TRIM - flexible, 324 mm (12-3/4 inch) long, flexible, cab harness, front left-hand side

1шт.

25

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

Replaces 1999948C1 nut

1шт.

26

242801A1

CONTROL - transmission, not shown

1шт.

27

275263A1

HARNESS

main cab adapter, 23 pin to 31 pin, models prior to P.I.N. JEE0052701 , if used, not shown

1шт.
