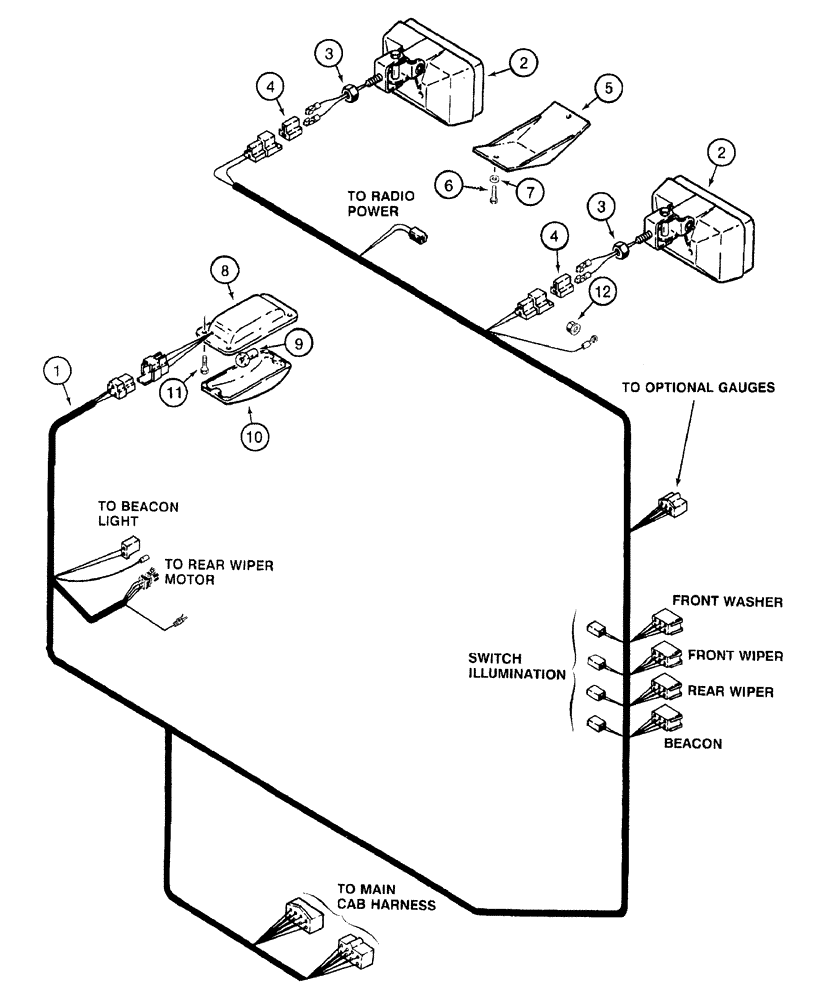

Запчасти Case 921B (4-006) - CAB ROOF HARNESS (04) - ELECTRICAL SYSTEMS

1

1546501C1

HARNESS

cab roof

1шт.

1

275264A1

HARNESS

main cab adapter, not shown

1шт.

2

A187541

LIGHT ASSY.,Halogen, 24V, 70W, Clear

LAMP ASSEMBLY - flood, parts list figure 4-46

2шт.

3

425-148

JAM NUT,Jam, 1/2"-13, G5

2шт.

4

877291R1

ELEC CONNECTOR,Female

harness to flood lamp

2шт.

5

193824A1

COVER

harness

1шт.

6

261-1356

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

self-tapping, pan Phillips, No. 10 NC x 3/8 inch

2шт.

7

195-81023

WASHER,5.94mm ID x 14.28mm OD x 1.25mm Thk

(1/4 x 9/16 x 3/64")

2шт.

245659C91

LAMP

ASSEMBLY - dome, replace 12 volt bulb with item 9, 24 volt bulb

1шт.

8

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

9

456602

BULB,2C2R, #1692, 28V

dome lamp, 24 volt, No. 1692, type 2C2R, not part of 245659C91 lamp assembly

1шт.

10

245679C1

LENS

dome lamp, prior to P.I.N. JEE0042493, no longer available, order lamp assembly

1шт.

10

225929A1

LENS

dome lamp, P.I.N. JEE0042493 and after

1шт.

11

265-1458

SELF-TAP SCREW,Cross Oval Hd, #10 x 1/2"

self-tapping, oval Phillips, No. 10-16 x 1/2 inch, cab frame

4шт.

12

1999948C1

FLANGE NUT

hex flange, special, 5/16 inch, mounts ground wires to cab frame

1шт.
