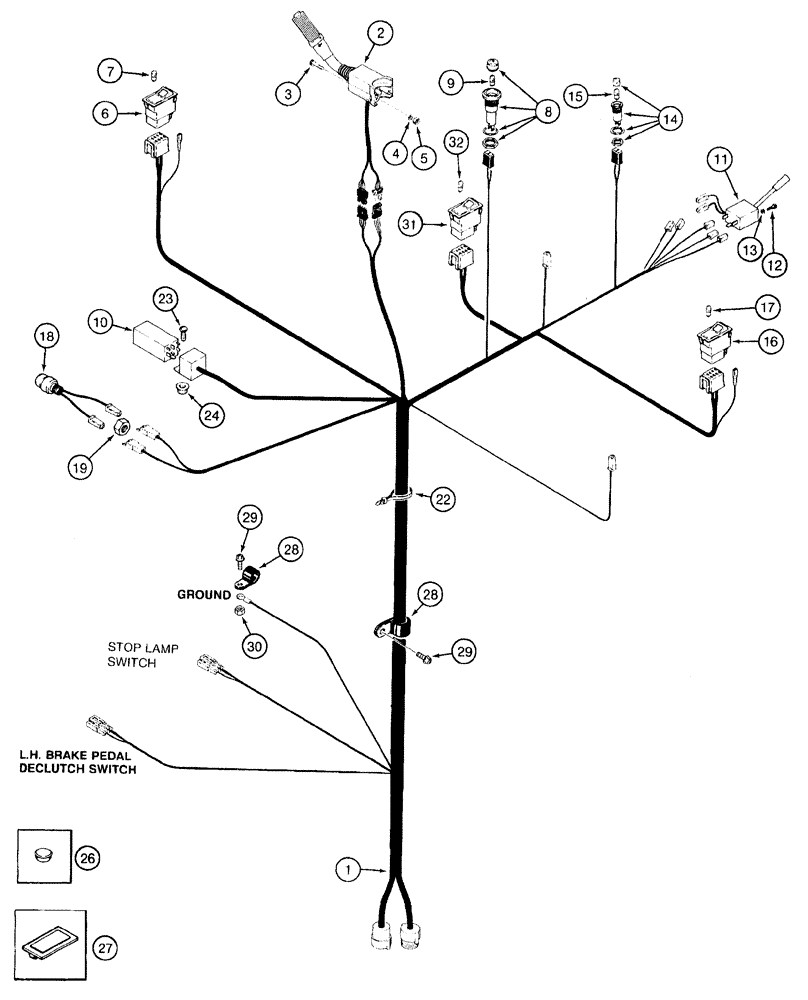

Запчасти Case 921B (4-005[A]) - HARNESS - PEDESTAL, P.I.N. JEE0052701 AND AFTER (04) - ELECTRICAL SYSTEMS

1

244248A1

HARNESS

pedestal

1шт.

2

238270A1

CONTROL

LEVER - transmission control

1шт.

238270A1R

REMAN-JOYSTICK

921B - CASE WHEEL LOADER (NORTH AMERICA) P.I.N. JEE0052701 AND AFTER (3/95-)

1шт.

238270A1C

CORE-JOYSTICK

Return Number

1шт.

3

864-5020

HEX SOC SCREW,M5 x 20mm, Cl 8.8

2шт.

4

892-11005

LOCK WASHER,M5

2шт.

5

825-1405

NUT,M5, Cl 8

2шт.

6

1964836C1

SWITCH ASSY

rocker, parking brake; See Figure 9-084 for Decal

1шт.

7

926645C1

BULB,W5, 12V, 1.2W

W5/1,2 24V1,2W

1шт.

A186268

LAMP

ASSEMBLY - master warning

1шт.

8

NSS

NOT SOLD SEPARAT

BODY - lamp, includes lens cap and mounting hardware

1шт.

9

S119827

BULB

No. 313

1шт.

10

A187940

FLASHER UNIT

turn signal

1шт.

11

1987555C1

SWITCH

combination, turn signal and horn

1шт.

12

614-4012

BOLT,Hex, M4 x 0.7 x 12mm, Cl 8.8, Full Thd

2шт.

13

892-11004

LOCK WASHER,M4

2шт.

A187667

LAMP

ASSEMBLY - indicator, turn signal

1шт.

14

NSS

NOT SOLD SEPARAT

BODY - lamp, includes lens cap and mounting hardware

1шт.

15

T39215

BULB

No. 1820

1шт.

16

A187984

SWITCH

SWITCH - rocker, flasher lamp, hazard

1шт.

17

926645C1

BULB,W5, 12V, 1.2W

W5/1,2 24V1,2W

1шт.

18

A135520

SWITCH

SWITCH - cold start

1шт.

19

425-1110

NUT,5/8"-18, G5

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

1шт.

23

1276057C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

pan head, special, 10 x 3/8 inch

1шт.

24

231-51409

SERRATED NUT,Flg, USR, #10-24

1шт.

26

353-406

PLUG,Dome, .625" hole, Nylon

button, 5/8 inch

2шт.

27

245918C1

LENS

PLUG - rectangular blanking, used on units without item 16, A187984

1шт.

28

515-22254

CLAMP,1", Insul, 5/16" Bolt

P-type

2шт.

29

281-14812

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

self-tapping, hex washer head, 5/16 NC x 3/4 inch

2шт.

30

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

31

A187984

SWITCH

rocker, autoshift

1шт.

32

926645C1

BULB,W5, 12V, 1.2W

W5/1,2 24V1,2W

1шт.

33

275262A1

ELECTRICAL WIRE

WIRE JUMPER - not shown, used in connector to item 32, rocker switch, if used

1шт.
