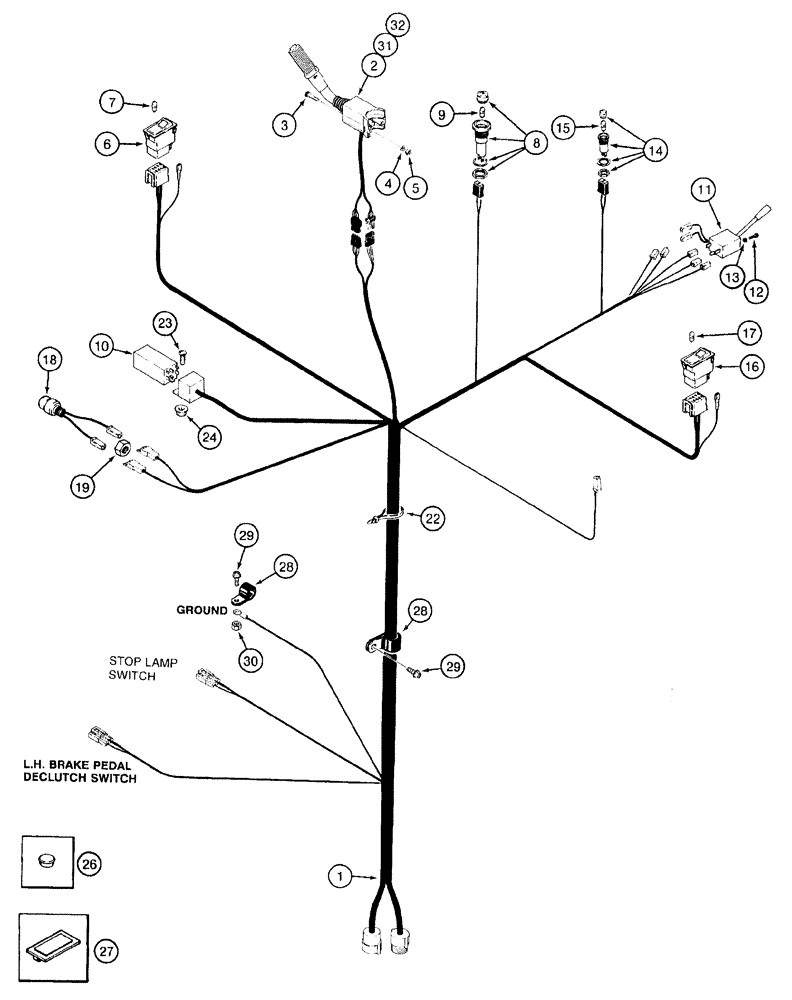

Запчасти Case 921B (4-004) - HARNESS - PEDESTAL, PRIOR TO P.I.N. JEE0052701 (04) - ELECTRICAL SYSTEMS

1

1546475C2

HARNESS

pedestal

1шт.

2

189725A1

CONTROL

LEVER - transmission control, prior to P.I.N. JEE0051209, no longer available, order 236488A1 lever, item 32

1шт.

2

245614A1R

REMAN ELECT CONTROL

Reman for New PN 189725A1

1шт.

2

245614A1C

CORE-ELECTRONIC CONT

Return Number

1шт.

3

864-5020

HEX SOC SCREW,M5 x 20mm, Cl 8.8

2шт.

4

892-11005

LOCK WASHER,M5

2шт.

5

825-1405

NUT,M5, Cl 8

2шт.

6

1964836C1

SWITCH ASSY

rocker, parking brake; See Figure 9-084 for Decal

1шт.

7

P40506

LAMP

BULB - rocker switch, replaces 926645C1 bulb

1шт.

A186268

LAMP

ASSEMBLY - master warning

1шт.

8

NSS

NOT SOLD SEPARAT

BODY - lamp, includes lens cap and mounting hardware

1шт.

9

S119827

BULB

No. 313

1шт.

10

A187940

FLASHER UNIT

turn signal

1шт.

11

1987555C1

SWITCH

combination, turn signal and horn

1шт.

12

614-4012

BOLT,Hex, M4 x 0.7 x 12mm, Cl 8.8, Full Thd

2шт.

13

892-11004

LOCK WASHER,M4

2шт.

A187667

LAMP

ASSEMBLY - indicator, turn signal

1шт.

14

NSS

NOT SOLD SEPARAT

BODY - lamp, includes lens cap and mounting hardware

1шт.

15

T39215

BULB

No. 1820

1шт.

16

A187984

SWITCH

SWITCH - rocker, flasher lamp, hazard

1шт.

17

P40506

LAMP

BULB - rocker switch, replaces 926645C1 bulb

1шт.

18

A135520

SWITCH

SWITCH - cold start

1шт.

19

425-1110

NUT,5/8"-18, G5

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

1шт.

23

1276057C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

pan head, special, 10 x 3/8 inch

1шт.

24

231-51409

SERRATED NUT,Flg, USR, #10-24

1шт.

26

353-406

PLUG,Dome, .625" hole, Nylon

button, 5/8 inch

2шт.

27

245918C1

LENS

PLUG - rectangular, used on units without item 16, A187984

1шт.

28

515-22254

CLAMP,1", Insul, 5/16" Bolt

P-type

2шт.

29

281-14812

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

self-tapping, hex washer head, 5/16 NC x 3/4 inch

2шт.

30

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

31

236488A1

CONTROL

LEVER - transmission control, with kickdown button, P.I.N. JEE0051209 through JEE0051915, no longer available, order 245614A1 lever, item 32

1шт.

31

245614A1R

REMAN ELECT CONTROL

Reman for New PN 236488A1

1шт.

31

245614A1C

CORE-ELECTRONIC CONT

Return Number

1шт.

32

245614A1

FLASHER SWITCH,Lever, Transmission Control, With Kickdown Switch

LEVER - transmission control, with kickdown switch button, replaces 189725A1 and 236488A1 prior to P.I.N. JEE0051916

1шт.

32

245614A1R

REMAN ELECT CONTROL

921B

1шт.

32

245614A1C

CORE-ELECTRONIC CONT

Return Number

1шт.

33

238270A1

CONTROL

LEVER - transmission control, without kickdown button, P.I.N. JEE0051916 and after, not shown

1шт.

238270A1R

REMAN-JOYSTICK

921B - CASE WHEEL LOADER (NORTH AMERICA) PRIOR TO P.I.N. JEE0052701 (3/95-)

1шт.

238270A1C

CORE-JOYSTICK

Return Number

1шт.

252822A1

KIT

repair, kickdown button boot, services 189725A1 , 236488A1 , and 245614A1

1шт.
