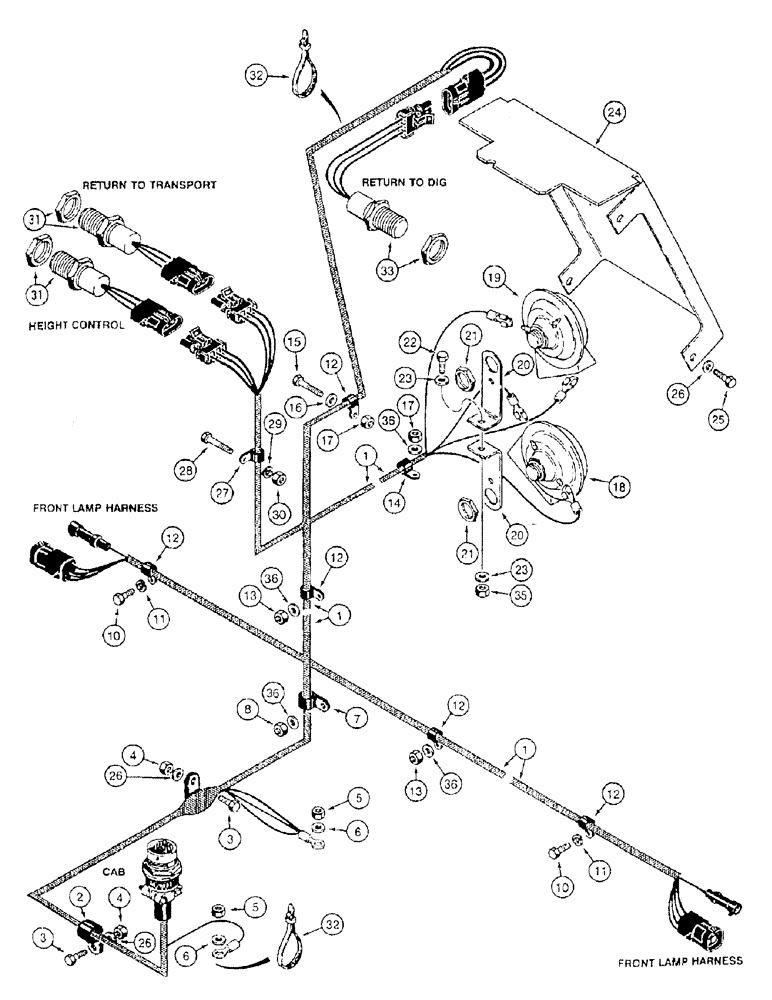

Запчасти Case 921B (4-002) - FRONT HARNESS - HORNS AND SWITCHES (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
L129872
HARNESS
front
1шт.
2
515-23254
CLAMP,1", Insul, 3/8" Bolt
P-type
1шт.
3
426-616
BOLT,Hex, 3/8" - 16 x 1", Gr 8
2шт.
4
425-146
JAM NUT,3/8" - 16, Gr 5
2шт.
5
L127555
NUT,Hex, 3/8" - 16
hex, brass, special, 3/8 inch NC, front and rear frames ground
2шт.
6
L127554
WASHER,0.395" ID x 0.875" OD x 0.064" Thk
flat, brass, special, 11 x 25 x 2 mm, front and rear frames ground
2шт.
7
515-23190
CLAMP,3/4", Insul, 3/8" Bolt
P-type
1шт.
8
231-1446
NUT,3/8" - 16, Gr 5
1шт.
10
426-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 8
2шт.
11
492-11038
LOCK WASHER,3/8"
2шт.
12
515-22190
CLAMP,3/4", Insul, 5/16" Bolt
P-type
5шт.
13
231-1446
NUT,3/8" - 16, Gr 5
2шт.
14
515-2395
CLAMP,3/8", Insul, 3/8" Bolt
1шт.
15
426-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8
1шт.
16
495-21044
WASHER,3/8"
(flat, 7/16 x 1 x 5/64 inch)
1шт.
17
231-1446
NUT,3/8" - 16, Gr 5
2шт.
18
R45461
HORN
F note, 24 volt, right-hand, kit includes (1) bracket and instructions
1шт.
19
D77650
HORN
A note, 24 volt, left-hand, kit includes (2) brackets, (1) nut, and instructions
1шт.
20
L73799
BRACKET
mounting
2шт.
21
L30866
LOCK NUT
hex, special, hex, special
1-2шт.
22
426-516
BOLT,Hex, 5/16" - 18 x 1", Gr 8
1шт.
23
495-11034
WASHER,5/16", SAE
(flat, 11/32 x 11/16 x 1/16")
2шт.
24
L129907
COVER
horn
1шт.
25
426-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 8
4шт.
26
496-21041
WASHER,13/32" x 13/16" x .089", HDN
6шт.
27
515-23159
CLAMP,5/8", Insul, 3/8" Bolt
P-type
1шт.
28
426-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8
1шт.
29
492-11038
LOCK WASHER,3/8"
1шт.
30
425-106
NUT,3/8"-16, Cl 5
1шт.
32
L18337
CABLE TIE,9.95"-12.1" lg
CABLE STRAP tie, 15 inch, return-to-dig wire and front harness at cab connector
2шт.
35
425-105
NUT,5/16"-18, G5
1шт.
36
496-21041
WASHER,13/32" x 13/16" x .089", HDN
4шт.
Выбрано товаров: 34
