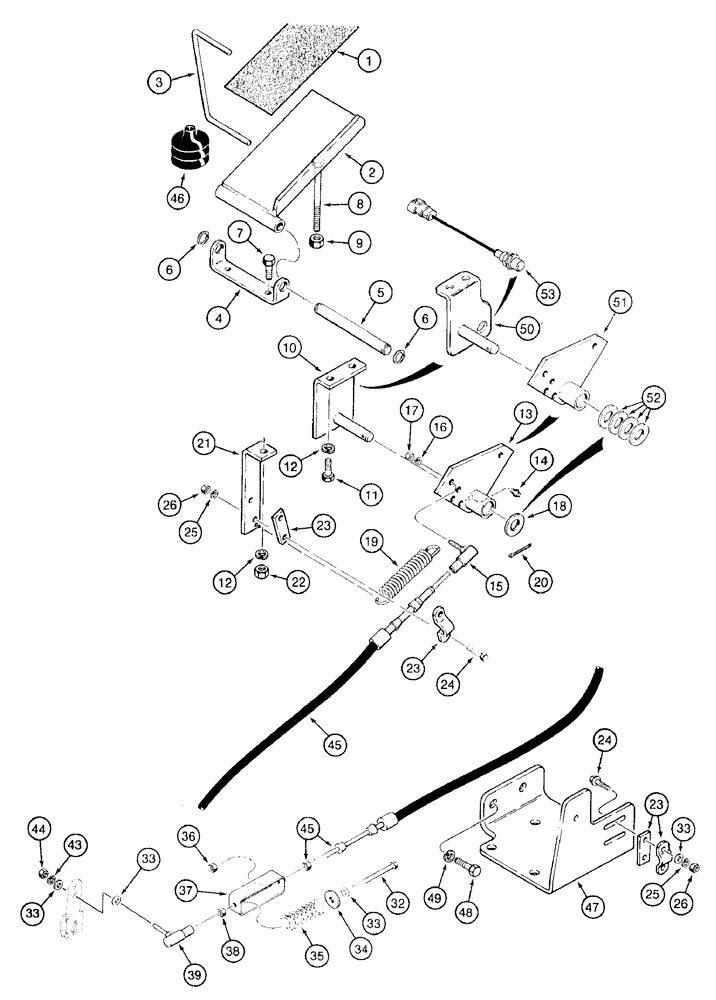

Запчасти Case 921B (3-006) - FOOT THROTTLE CONTROL (03) - FUEL SYSTEM

1

L71193

ANTI-SKID STRIP

non-skid, 3-1/2 x 8-51/64 inch, accelerator pedal

1шт.

2

1969946C1

PEDAL

accelerator, foot

1шт.

3

1339978C1

STEM

ROD - accelerator, foot, Serial Range: pedal-bellcrank

1шт.

4

1969948C1

SUPPORT

MOUNT - accelerator pedal

1шт.

5

1969947C1

ROD

ROD - pivot, pedal

1шт.

6

100-1137

SNAP RING,#37, Ext

Rod

2шт.

7

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

2шт.

8

113-2286

BOLT,Hex, 3/8" - 16 x 4", Gr 5

1шт.

9

425-106

NUT,3/8"-16, Cl 5

1шт.

10

113828A2

BRACKET

accelerator bellcrank, no longer available, order item 50, 113828A2 bracket

1шт.

11

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

2шт.

12

492-11038

LOCK WASHER,3/8"

3шт.

13

241728A1

LEVER

accelerator pivot, prior to P.I.N. JEE0052701, replaces 1339981C2 lever

1шт.

14

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

15

A76747

BALL JOINT,#10 -32 x 7/8" L

ball, cable

1шт.

16

492-11025

LOCK WASHER,1/4"

1шт.

17

425-114

NUT,1/4"-28, G5

1шт.

18

495-81176

WASHER,21/32" x 1" x .060"

flat, 21/32 x 1 x 3/64 inch, used with item 13, 1339981C2 lever

1шт.

19

L106237

SPRING

accelerator return

1шт.

20

432-820

COTTER PIN,1/8" x 1 1/4"

1шт.

21

L127151

SUPPORT

BRACKET - mounting, cable

1шт.

22

425-106

NUT,3/8"-16, Cl 5

1шт.

23

L12441

CLAMP

two-piece, cable

2шт.

24

463-11012

SCREW,Hex Hd, #10-24 x 3/4"

machine, hex head, No. 10 NC x 3/4 inch

4шт.

25

492-11010

LOCK WASHER,#10

4шт.

26

225-14110

NUT,#10-24

4шт.

32

63-61040

SCREW,Hex Hd, #10-32 x 2 1/2"

SCREW - machine, hex head, No. 10 NF x 2-1/2 inch

1шт.

33

495-31022

WASHER,#10

5шт.

34

495-21031

WASHER,1/4"

flat, 5/16 x 3/4 x 1/16 inch

1шт.

35

L129280

SPRING

compression

1шт.

36

225-14210

NUT,#10-32

1шт.

37

L129281

SPACER

BRACKET - spring

1шт.

38

231-24109

LOCK NUT,#10-32, GB

hex, self-locking, No. 10 NF

1шт.

39

A76747

BALL JOINT,#10 -32 x 7/8" L

ball, cable

1шт.

43

492-11025

LOCK WASHER,1/4"

1шт.

44

425-114

NUT,1/4"-28, G5

1шт.

45

L129284

CABLE ASSY.

accelerator

1шт.

46

113833A1

BOOT

rubber

1шт.

47

L130040

SUPPORT

BRACKET - mounting, cable and fuel filter, at engine

1шт.

48

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

49

892-11010

LOCK WASHER,M10

2шт.

50

113828A2

BRACKET

accelerator bellcrank

1шт.

51

241728A1

LEVER

accelerator pivot, P.I.N. JEE0052701 and after

1шт.

52

495-81176

WASHER,21/32" x 1" x .060"

flat, 21/32 x 1 x 3/64 inch, used with item 51, 241728A1 lever

4шт.

53

241956A1

SWITCH

proximity, autoshift, P.I.N. JEE0052701 and after

1шт.
