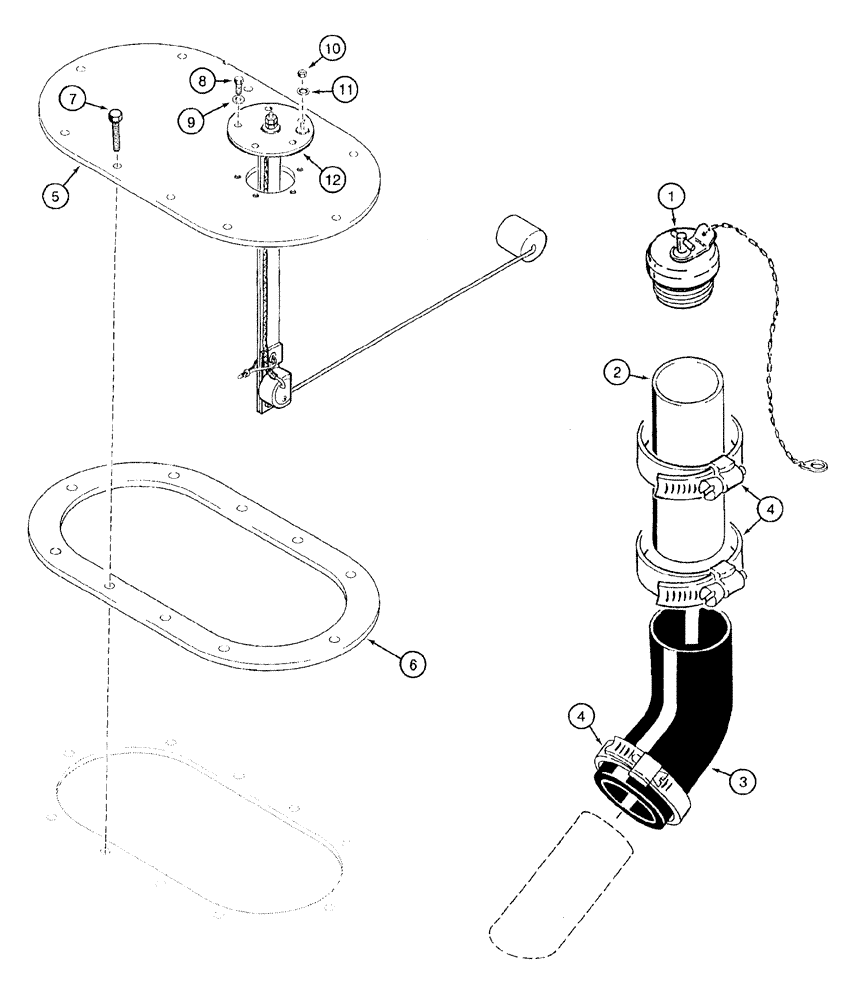

Запчасти Case 921B (3-002) - FUEL TANK FILLER AND SENDER (03) - FUEL SYSTEM

1

L74929

FILLER CAP

Fuel tank

1шт.

2

L128378

FUEL TUBE,88.9 mm OD x 162 mm L

fuel fill

1шт.

3

L127180

FUEL HOSE

elbow, fuel filler

1шт.

4

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

Adj.

3шт.

5

L125423

LARGE PLATE

PLATE, LARGE tank access cover

1шт.

6

100734A1

GASKET,4.6mm Thk

fuel tank access cover plate

1шт.

7

L108414

BOLT

hex, special, sealing

10шт.

8

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

5шт.

9

L115306

WASHER

special, sealing

5шт.

10

225-14210

NUT,#10-32

1шт.

11

493-21020

LOCK WASHER,Int Tooth, #10

(3/16")

1шт.

12

L128376

SENDER UNIT

SENDER fuel level

1шт.
