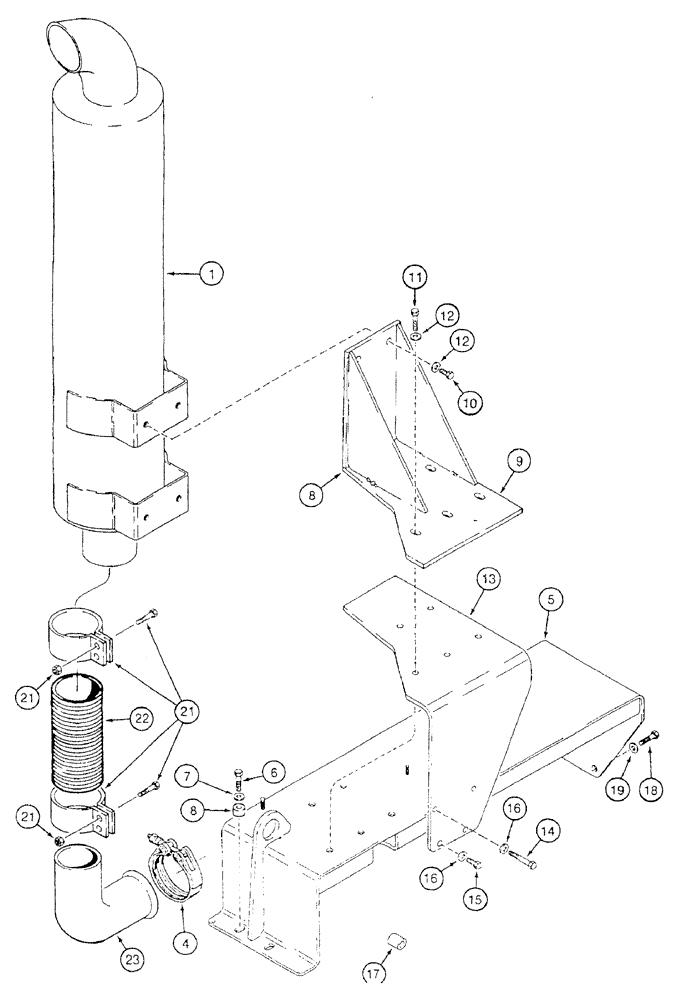

Запчасти Case 921B (2-012) - MUFFLER AND EXHAUST SYSTEM (02) - ENGINE

1

183822A1

MUFFLER

engine exhaust

1шт.

4

90-3606T1

CLAMP,120.65mm

elbow at turbocharger

1шт.

5

102155A2

SUPPORT

BRACKET -, Serial Range: muffler-engine

1шт.

6

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

2шт.

7

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

8

107391A1

SPACER

muffler to engine bracket

2шт.

9

104097A1

SUPPORT

BRACKET - muffler mounting

1шт.

10

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

Replaces 614-12040 bolt

4шт.

11

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

5шт.

12

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

9шт.

13

104096A1

SUPPORT

muffler mounting bracket

1шт.

14

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

2шт.

15

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

16

496-41041

WASHER,13/32" x 1 1/8" x .134"

Hardened

4шт.

17

90-7181T1

SPACER

muffler bracket, no longer available, order 90-7586T1 spacer, item 17A

2шт.

17a

90-7586T1

SPACER

27/64 x 43/64 x 45/64 inch, not shown

2шт.

18

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

Full threads

2шт.

19

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

21

90-8319T1

CLAMP

sleeve-type, includes hardware, muffler and turbocharger elbow, replaces 90-7635T1 clamp

2шт.

22

90-5858T1

TUBE,4" ID x 4.25" OD x 9" L

flex, muffler to elbow

1шт.

23

109037A1

ELBOW

, Serial Range: turbocharger,-muffler

1шт.
