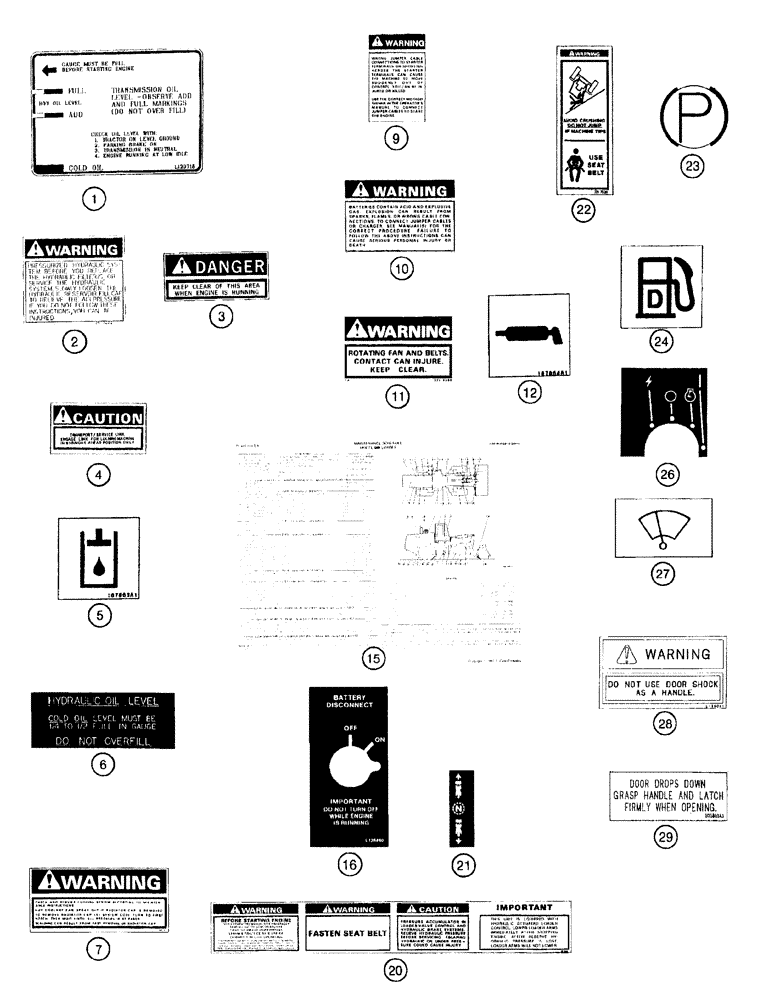

Запчасти Case 921B (9-084) - DECALS (09) - CHASSIS/ATTACHMENTS

1

L129715

DECAL

transmission oil level

1шт.

Part of Decal Kit part number 194308A1

1шт.

2

321-6666

DECAL

Warning, pressurized hydraulic system

3шт.

Part of Decal Kit part number 194308A1

1шт.

3

321-3205

DECAL

Danger, keep clear of this area when engine is running

2шт.

Part of Decal Kit part number 194308A1

1шт.

4

321-3206

DECAL

Caution, transport/service link

1шт.

Part of Decal Kit part number 194308A1

1шт.

5

187863A1

DECAL

hydraulic fluid

1шт.

Part of Decal Kit part number 194308A1

1шт.

6

L117520

DECAL

hydraulic oil level

1шт.

Part of Decal Kit part number 194308A1

1шт.

7

321-6672

DECAL

Warning, check and service cooling system

1шт.

Part of Decal Kit part number 194308A1

1шт.

9

321-6872

DECAL

Warning, wrong jumper cable connections to starter terminals

1шт.

Part of Decal Kit part number 194308A1

1шт.

10

321-6714

DECAL

Warning, batteries contain acid and explosive gas

1шт.

Part of Decal Kit part number 194308A1

1шт.

11

321-3596

DECAL

Warning, rotating fan and belts

2шт.

Part of Decal Kit part number 194308A1

1шт.

12

187864A1

DECAL

grease lube point

6шт.

Part of Decal Kit part number 194308A1

1шт.

15

183494A1

DECAL

DECAL - maintenance schedule, supplied by Parts and Components

1шт.

Part of Decal Kit part number 194308A1

1шт.

16

L126480

DECAL

battery disconnect

1шт.

Part of Decal Kit part number 194308A1

1шт.

20

321-7028

DECAL

Warning/Caution/Important, combination

1шт.

Part of Decal Kit part number 194308A1

1шт.

21

1987168C1

DECAL

direction, speed

1шт.

Part of Decal Kit part number 194308A1

1шт.

22

321-7030

WARNING DECAL

Do Not Jump - Use Seat Belt

1шт.

Part of Decal Kit part number 194308A1

1шт.

23

1546467C1

DECAL

parking brake

1шт.

24

139879A1

DECAL

diesel fuel

1шт.

Part of Decal Kit part number 194308A1

1шт.

26

140219A2

DECAL

ignition switch pattern

1шт.

Part of Decal Kit part number 194308A1

1шт.

27

3231781R1

IDEOGRAM

DECAL - front wiper switch

1шт.

28

L130061

DECAL

Warning, do not use door shock as a handle

1шт.

Part of Decal Kit part number 194308A1

1шт.

29

101811A1

DECAL

door drops down, grasp handle and latch firmly when opening

2шт.

Part of Decal Kit part number 194308A1

1шт.

194308A1

DECAL

KIT - decal, Includes: references nos. 1 through 22, 24, 26, 28, 29 on this figure, reference nos. 1 through 11 on figure 9-80 and refernce nos. 7 and 23 on figure 9-82, no longer available, order decals separately

1шт.
