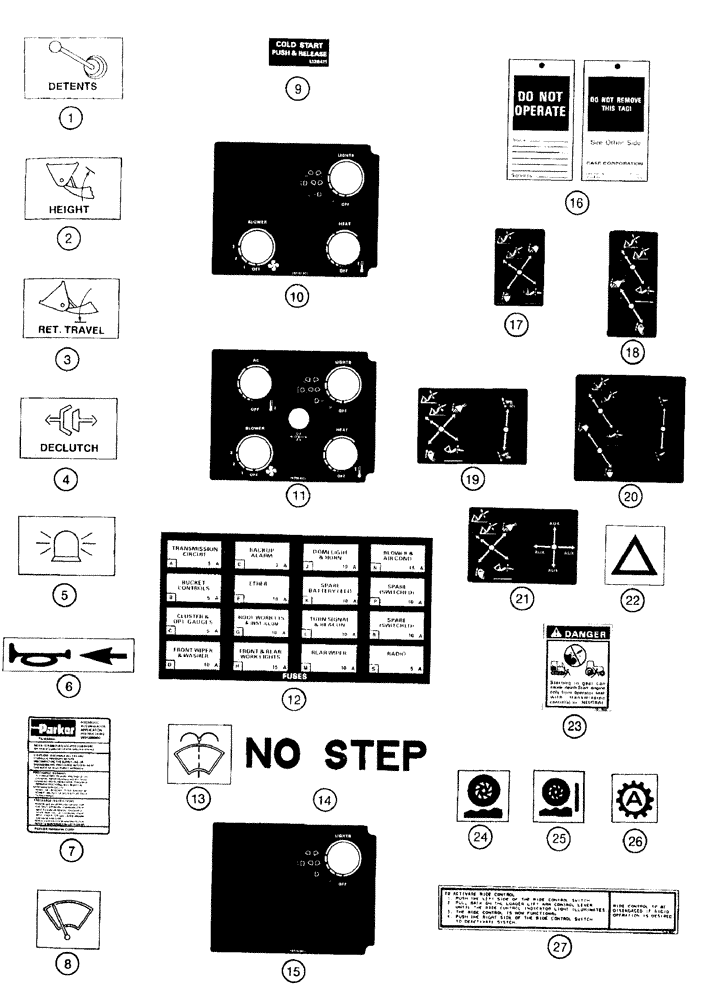

Запчасти Case 921B (9-082) - DECALS (09) - CHASSIS/ATTACHMENTS

1

117632A1

SYMBOLS

SYMBOL DECAL - detent

1шт.

2

A187692

IDEOGRAM

DECAL - height control

1шт.

3

A187693

IDEOGRAM

DECAL - return to travel, bucket

1шт.

4

A187696

IDEOGRAM

DECAL - declutch selector

1шт.

5

245917C1

DECAL

DECAL - rotating beacon

1шт.

6

195274A1

DECAL

horn

1шт.

7

L129440

DECAL

hydraulic accumulator application instructions

2шт.

Part of Decal Kit part number 194308A1

1шт.

8

3231781R1

IDEOGRAM

DECAL - front wiper switch

1шт.

9

179979A1

DECAL

cold start

1шт.

10

1977818C1

DECAL

environmental, cab models with heater

1шт.

11

1977819C1

DECAL

environmental, cab models with heater and air conditioning

1шт.

12

1990800C2

DECAL

fuses

1шт.

13

3231783R1

IDEOGRAM

DECAL - windshield washer

1шт.

14

H239079

DECAL

no step, on air conditioning condenser

1шт.

15

1977820C1

DECAL

environmental, canopy models

1шт.

16

321-4614

TAG

TAG - do not operate

1шт.

17

1977319C3

DECAL

loader control, single lever remote control valve with two spool valve, no longer available, order item 17A, 256421A1

1шт.

17a

256421A1

DECAL

loader control, single lever remote control valve with two spool valve, not illustrated

1шт.

18

1977651C3

DECAL

loader control, dual lever remote control valve with two spool valve, no longer available, order item 18A, 256420A1

1шт.

18a

256420A1

DECAL

loader control, dual lever remote control valve with two spool valve, not illustrated

1шт.

19

1977321C3

DECAL

loader control, single lever and auxiliary single lever remote control valves with three spool valve, no longer available, order item 19A, 256423A1

1шт.

19a

256423A1

DECAL

loader control, single lever and auxiliary single lever remote control valves with three spool valve, not illustrated

1шт.

20

1977320C3

DECAL

loader control, dual lever and auxiliary single lever remote control valves with three spool valve, no longer available, order item 20A, 256422A1

1шт.

20a

256422A1

DECAL

loader control, dual lever and auxiliary single lever remote control valves with three spool valve, not illustrated

1шт.

21

1977322C3

DECAL

loader control, two single lever remote control valves with four spool valve, no longer available, order 256424A1 decal, item 21A

1шт.

21a

256424A1

DECAL

loader control, two single lever remote control valves with four spool valve, two single lever remote control valves with four spool valve, not illustrated

1шт.

22

245916C1

DECAL

SYMBOL DECAL - hazard switch

1шт.

23

321-7040

DANGER DECAL

Starting in gear can cause death

1шт.

Part of Decal Kit part number 194308A1

1шт.

24

304083A1

DECAL

ride control

1шт.

25

191145A1

DECAL

ride control, on

1шт.

26

242631A1

SYMBOLS

SYMBOL DECAL - auto shift, P.I.N. JEE0052701 and after

1шт.

27

133448A1

DECAL

ride control instructions

1шт.

28

242333A1

DECAL - quality assurance, not shown

1шт.

194308A1

DECAL

KIT - decal, Includes reference nos. 7 and 23 on this figure, 1 through 11 on figure 9-81 and 1 through 22,24,26,28,29 on figure 9-85, no longer available, order decals separately

1шт.
